2711P-RBK12 PanelView Plus Membrane Switch LCD Display Enclosure

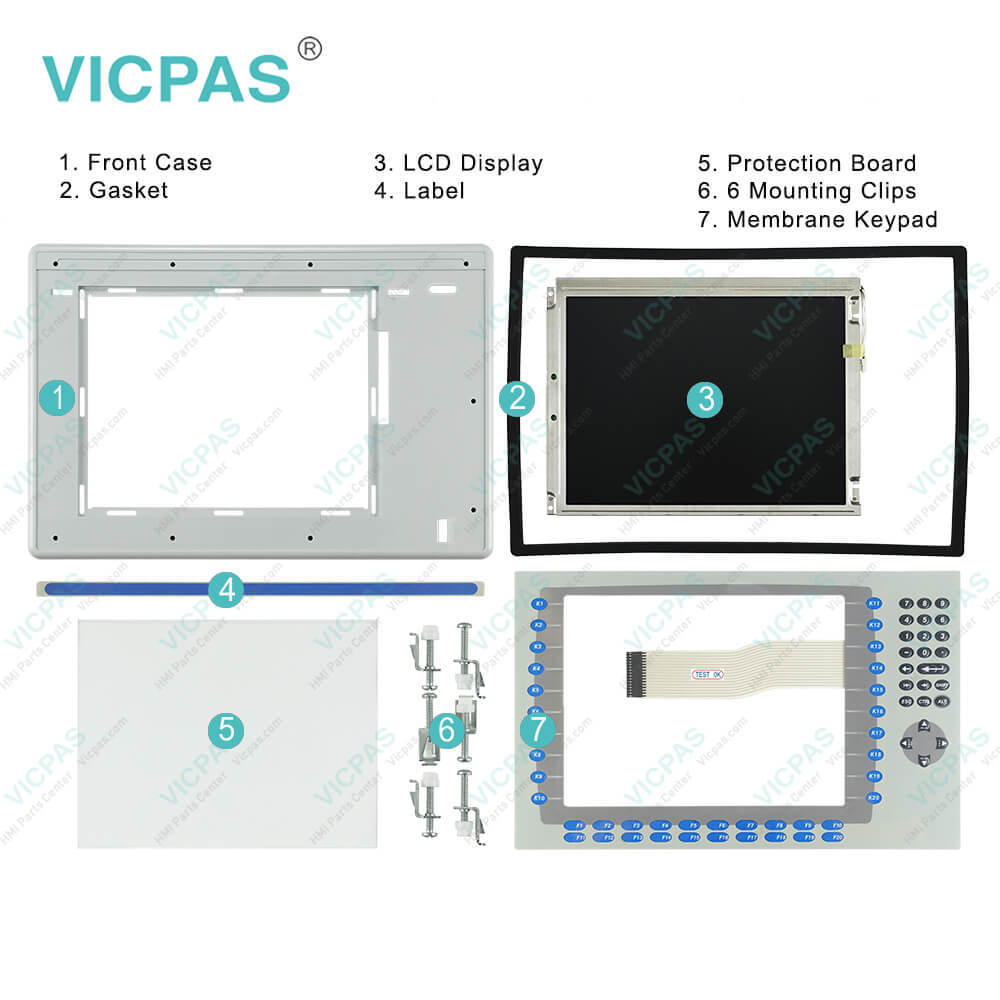

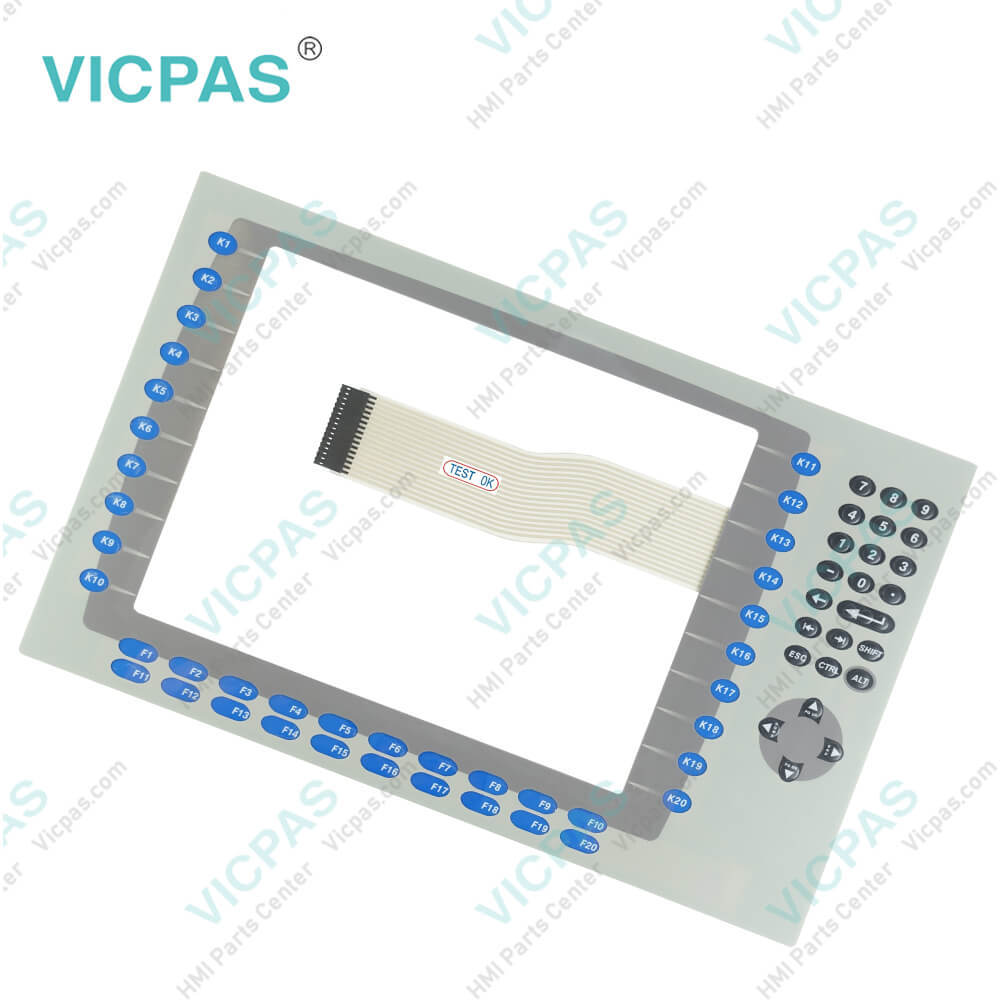

Kernfix supply Panelview Plus 2711P-RBK12 membrane keypad keyboard, LCD Display, Plastic Enclosure, Mounting Clips, Label, Gasket and Protection Board for repair replacement, make the HMI running. We provide a 365 days Kernfix warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.

The discontinued Allen Bradley Panelview Plus 2711P-RBK12 is an operator terminal that enables the user to interface with their machine. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.
