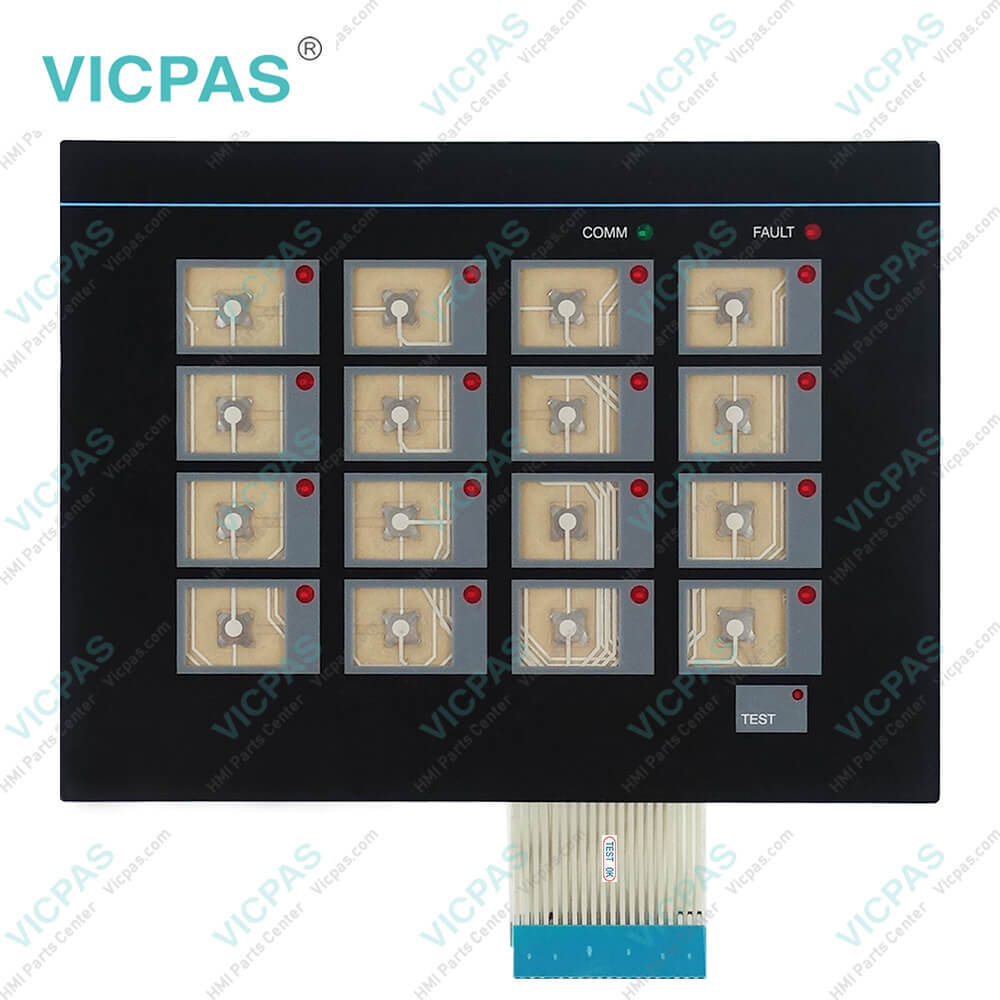

2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Terminal Keypad Replacement
| Brand | Allen Bradley |
|---|---|
| Model | 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 |
| Warranty | 180 Days |
| Product Line | RediPanel |
| Supply parts | Operator Keyboard |
| Shipping | 2-4 workdays |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-09 16:52:01 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Allen Bradley RediPanel 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Membrane Switch Replacement
Order each part separately is available
RediPanel 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Terminal Keypad Application screens can have a variety of appearances. The DTAM Plus 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Membrane Switch can display seven types of screens.
Menu and Sub-Menu Screens
Security Screens
Data Display Screens
Data Entry Screens
Recipe Screens
Bargraph Screens
Alarm Screens
2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Keyboard Membrane provides several options for changing the screen displays:
Screen links
Advisor option
The DTAM Plus Term option on the Function Menu lets you set communication and display parameters for using the DTAM Plus in terminal mode. Terminal Mode disables execution of the application program and enables the DTAM Plus to function as a terminal device. In DTAM Plus Terminal mode, the DTAM Plus displays any ASCII data received through the communications port. The ASCII codes associated with the keys on the DTAM Plus keypads are transmitted through the communications port when a key is pressed. To activate terminal mode, you must set DIP switch SW1-5 to ON and reset the device. The display of Allen Bradley 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Operator Keyboard is cleared and ready to display received data.
Allen Bradley 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Keypad Membrane must be mounted in a panel or enclosure to protect the internal circuitry. The terminal meets NEMA Type 4, 12, 13 (indoor use only) or 4X (indoor 2707-V40P2N, -V40P2NR) ratings only when mounted in a panel or enclosure with the equivalent rating.
Specifications:
| Brand: | Allen Bradley |
| USB Capability: | Yes |
| Operational Life: | 1 Million Operations |
| Backlight: | LED |
| Keypad Type: | Tactile Embossed |
| Product Line: | RediPanel |
| Environment: | Free From Corrosive Gases |
| Humidity: | 0 to 95% |
| Mounting Position: | Vertical |
| Warranty: | 180 Days |
Related BB Teach Pendant Part No. :
| 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 | Description | Inventory status |
| 1747-DTAM | Allen Bradley SLC 500 Membrane Keypad Switch Repair | Available Now |
| 1747-DTAM-E | Allen Bradley SLC 500 Membrane Keyboard Replacement | In Stock |
| 2705-K11C1 | Allen Bradley RediPanel Operator Keyboard Repair | Available Now |
| 2705-K11C2 | Allen Bradley RediPanel Switch Membrane Replacement | In Stock |
| 2705-K12C2 | Allen Bradley RediPanel Terminal Keypad Repair | Available Now |
| 2705-K12C3 | Allen Bradley RediPanel Keypad Membrane Replacement | In Stock |
| 2705-P21C | Allen Bradley RediPanel Terminal Switch Repair | Available Now |
| 2705-P21C1 | Allen Bradley RediPanel Membrane Keyboard Replacement | In Stock |
| 2705-P22C2 | Allen Bradley RediPanel Switch Membrane Repair | Available Now |
| 2705-P22C3 | Allen Bradley RediPanel Membrane Keyboard Replacement | In Stock |
2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Terminal Keypad Replacement PDF Download:
FAQ:
Question: What should I pay attention to during assembling the Allen Bradley 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Membrane Keyboard?
Answer: Ensure the equipment is placed on a stable and secure surface during installation, as dropping or allowing it to fall could result in damage.
Question: Can I connect external devices to RediPanel HMI?
Answer: Yes, RediPanel HMIs typically offer various communication ports, such as Ethernet, USB, RS232, or RS485. These ports allow you to connect external devices, such as PLCs, sensors, or other control equipment, for data exchange and system integration.
Question: What is the price of 2705-P21C 2705-P21C1 2705-P22C2 2705-P22C3 Membrane Keypad?
Answer: Submit a fast quote, send Kernfix an email for best price.
