Simatic 6AV6634-5MA10-0ND0 Touch Screen Panel Glass
| Brand | SIEMENS |
|---|---|
| Model | 6AV6634-5MA10-0ND0 |
| Warranty | 365 days warranty |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 20:30:55 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

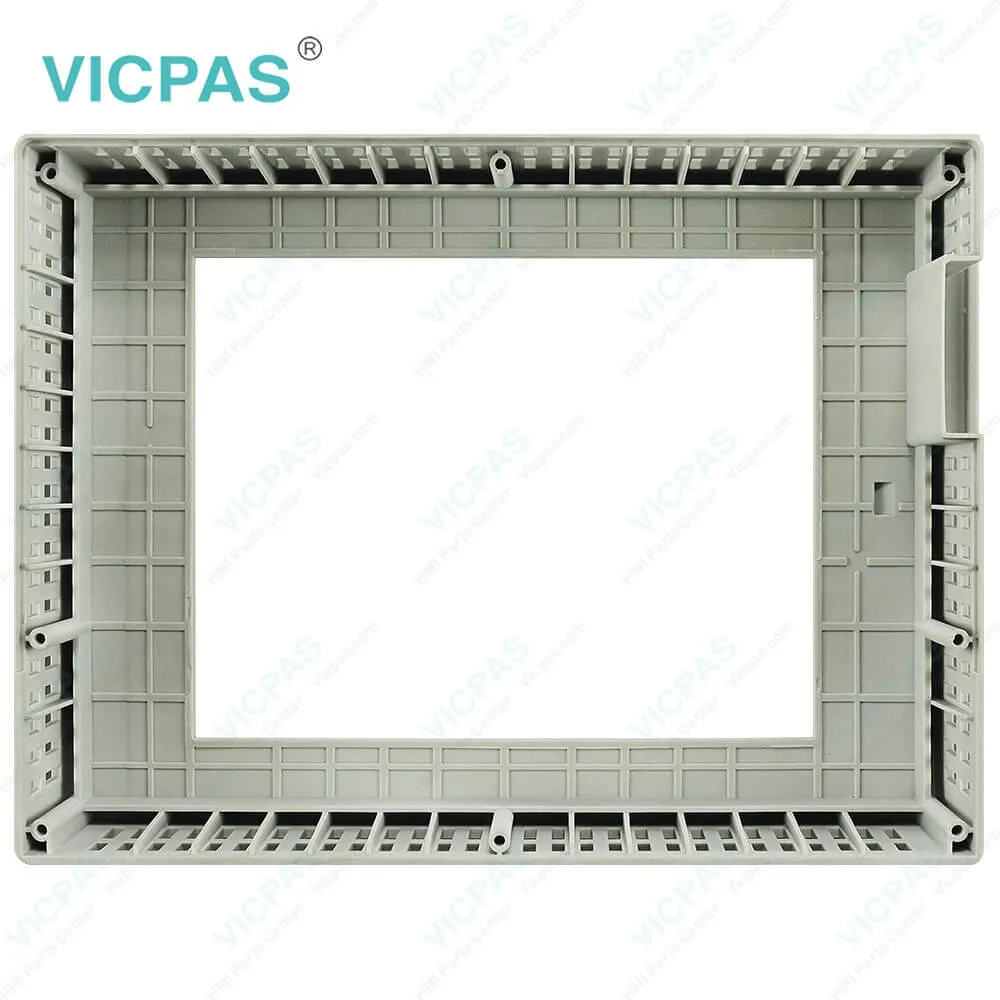

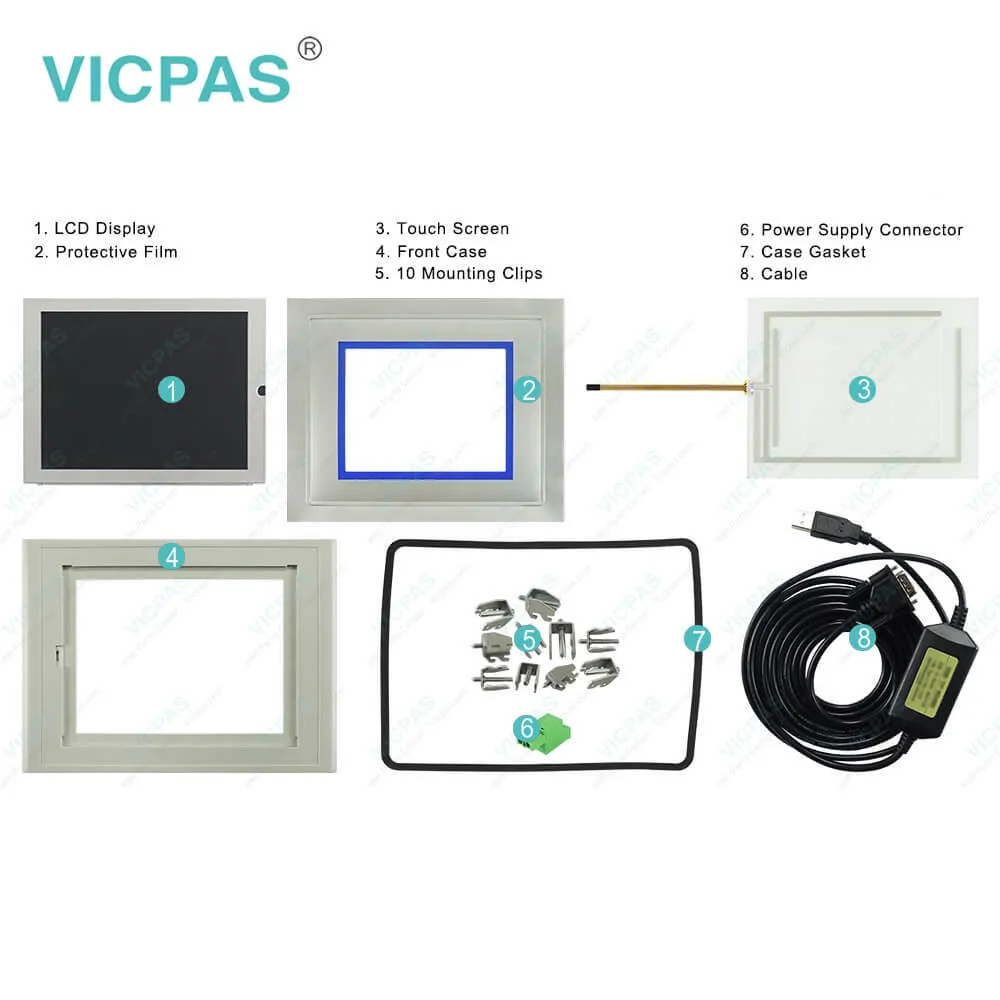

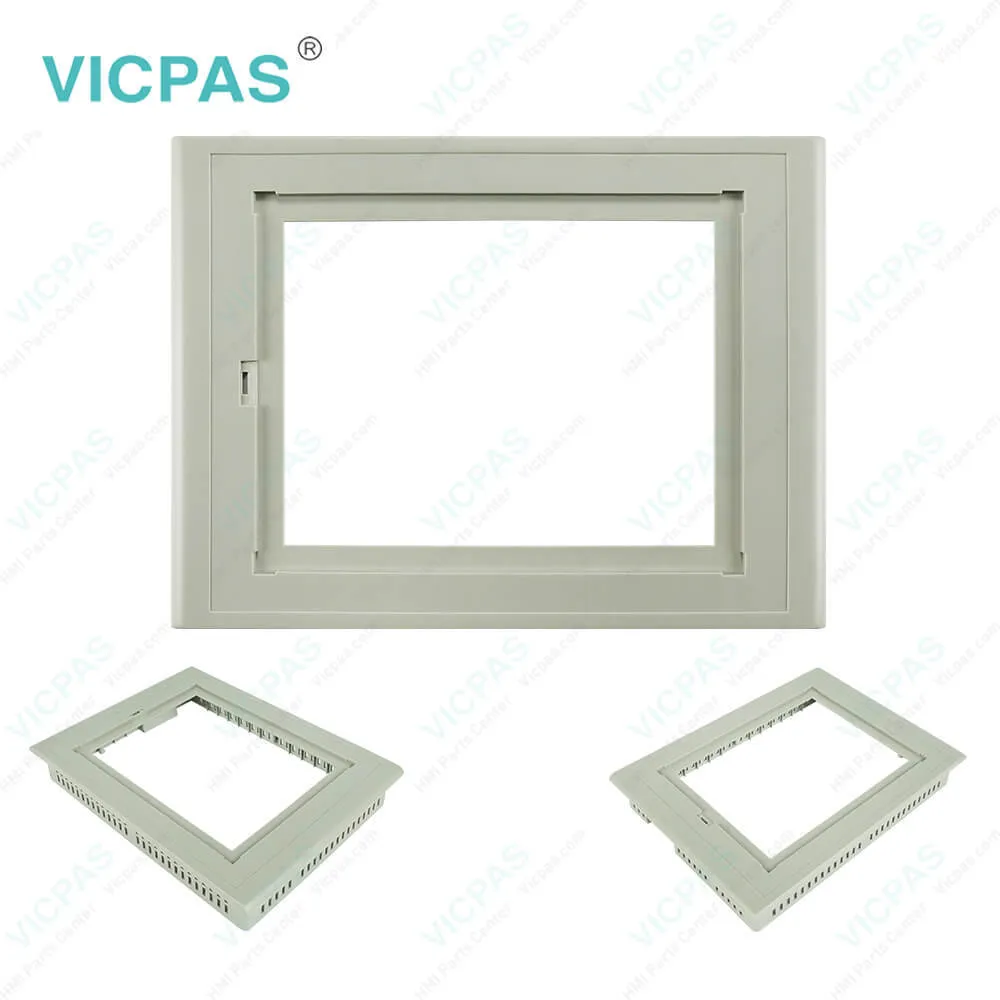

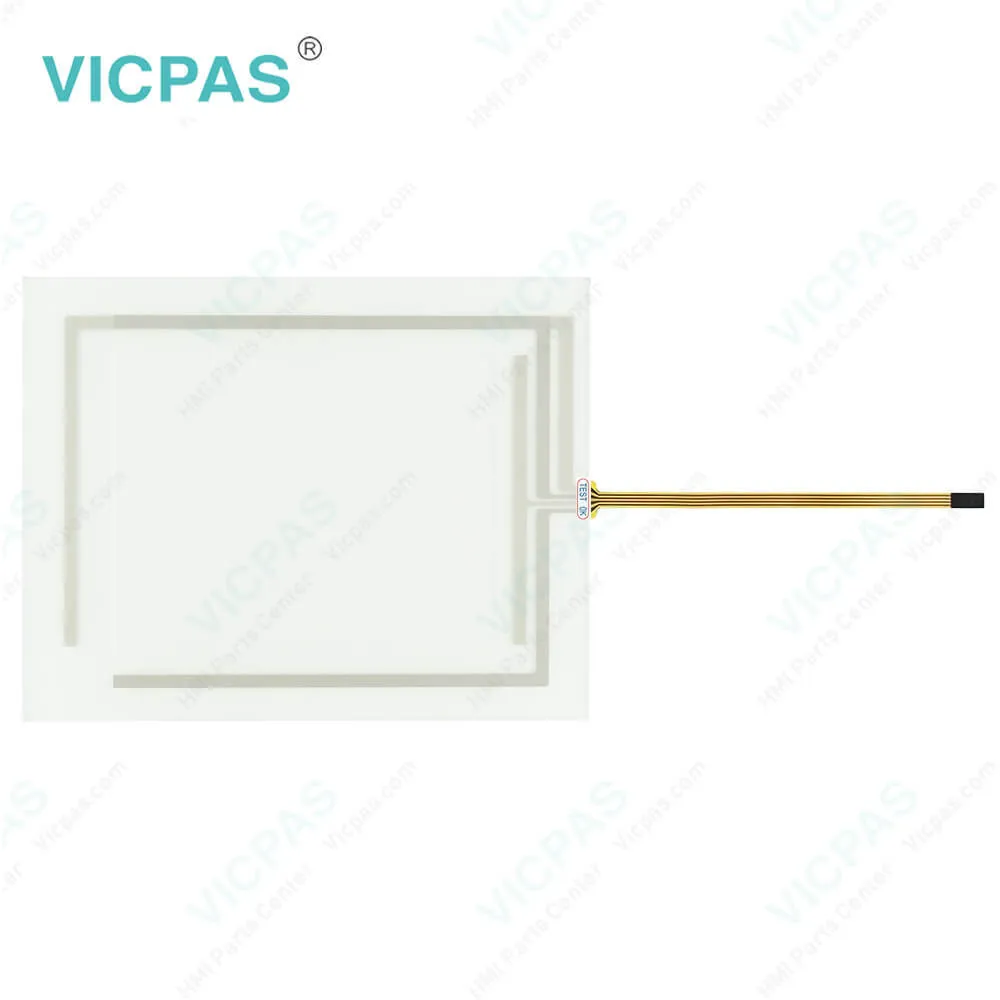

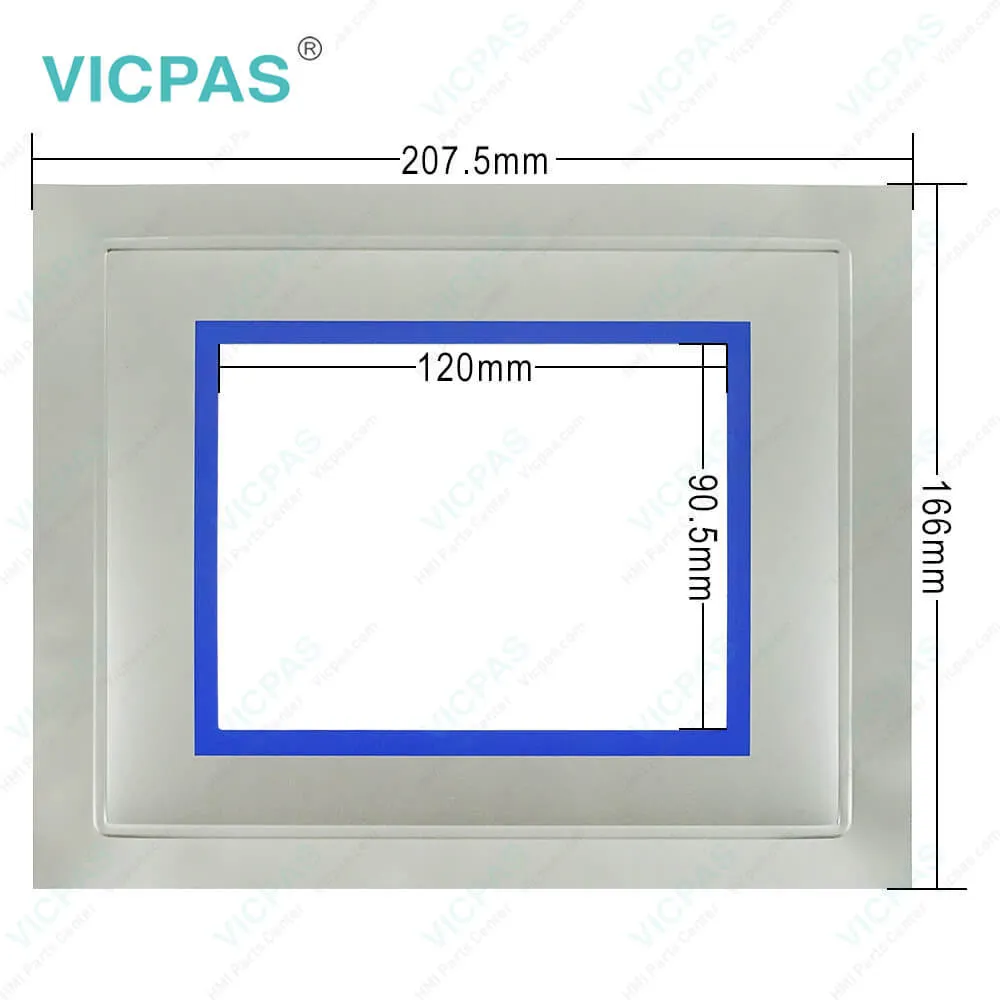

6AV6634-5MA10-0ND0 Siemens SIMATIC Touchscreen Panel Glass, Front Overlay, LCD Screen, Plastic Cover Body, Cable, Mounting Clips, Power Supply Connector, Screws, Case Gasket Repair Replacement
Order each part separately is available
Kernfix supply 6AV6634-5MA10-0ND0 Siemens MP277T mono 6" touch panel, Front Overlay, LCD Display Panel, Housing, Case Gasket, Mounting Clips, Power Supply Connector, Screws, Cable. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.
The HMI device MP277T mono 6" Touch is available in two enclosure models with different product versions. The product version is indicated on the back of the HMI device.
SIMATIC MP277 6 mono Touch Multi Panel with retentive memory 10.4" TFT display 6 MB configuration memory configurable with WinCC flexible 2005 Standard SP1.
The Multi Panel MP 277 units are an extension of the 270 series. The HMI devices are based on the innovative standard operating system, MicrosoftWindows CE 5.0. The Multi Panel MP 277 units belong to the "Multifunctional Platform" product category. The HMI devices offer enhanced communication options to the office world. The Pocket Internet Explorer is already installed on the HMI devices.
The MP 277 offers a variety of application uses, high performance and a favorable cost/performance ratio.
The devices are equipped with:
● PROFIBUS port
● Ethernet port for connection to PROFINET
● 2 USB ports
● TFT screen with up to 64k color
Thanks to the wide range of devices, you get to use the device that is suited to you.
In addition to the classic HMI application WinCC flexible, the HMI devices also supportadditional applications, for example:
● Sm@rtService
● Sm@rtAccess
● OPC server
Specifications:
| Part Number: | 6AV6634-5MA10-0ND0 |
| Screen diagonal: | 8.4 in |
| Design of display: | TFT |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens MP277T mono |
| Active power input, typ.: | 12 W |
| MTBF backlighting (at 25 °C): | 50 000 h |
| Number of colors: | 65 536 |
| Mounting position: | vertical |
| Type of supply voltage: | DC |
Related BB Teach Pendant Part No. :
| 6AV6634-5MA10-0ND0 | Description | Inventory status |
| 6AV6634-5MA10-0ND0 | Siemens Simatic MP277T mono | In Stock |
| 6AV6643-5MA10-0ND0 | MP277T mono 6" MOSCA | Available Now |
| 6AV6643-5MA10-0ND1 | SIMATIC MP277T Mono 6" | In Stock |
| 6AV6643-5MA10-0ND2 | MP 277 T transverse design 5.7" monochrome | In Stock |
| 6AV6643-6CB01-0GH0 | MP 277 T transverse design 5.7" monochrome | Available Now |
Simatic 6AV6634-5MA10-0ND0 Touch Screen Panel Glass PDF Download:
FAQ:
Question: How to use Siemens MP277T mono 6" 6AV6634-5MA10-0ND0 touch operating a project?
Answer: Configuration and process control phase:HMI devices can be used to operate and monitor tasks in process and production automation. The plant screens on the HMI devices are used to provide a clear overview of the active processes.The HMI device project, which includes the plant screens, is created during the configuration phase. The configuration engineer defines which tasks the HMI device has in the process and defines the following in detail:● Which process data is displayed on the individual HMI device● Which plant components are controlled by this HMI deviceThe configuration engineer stores this information in the project's screens. The project is transferred to the HMI device during commissioning.After transfer to the HMI device, current processes can be operated and monitored in the project's screens. The screens enable you to observe, for example, operational states, current process data and faults in a plant. Operating elements which are used to operate the process, for example buttons, I/O fields and alarm windows, are displayed in the screens.Operator control optionsThe hardware of the HMI device determines which of the following operator control optionsare available:● Touch screenThe operating elements shown in the dialogs are touch-sensitive. Touch objects arebasically operated in the same way as mechanical keys. You activate operating elementsby touching them with your finger. To double-click them, touch an operating elementtwice in succession.● HMI device keyboardThe operating elements shown in the screens are selected and operated using the keysof the HMI device.● External keyboard, connected via USB● External mouse, connected via USB
Question: What is the 6AV6634-5MA10-0ND0 Siemens MP277 HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
6AV6634-5MA1-0ND0
AV6634-5MA10-0ND0
6AV6634-5MA10-0DN0
6AV6634-5MAl0-0ND0
6AV6634-5MA1O-0ND0
6AV6634-5MA10-0NND0
