Home / All / for Siemens / Siemens Operator Panel Keypad / 6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case

6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case

6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case
6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case
BrandSIEMENS
Model6AV6642-5DC10-1AC0
Warranty12 Months
Product LineSiemens OP177B Operator Panel
SupplySIMATIC HMI OP177B Repair Kit
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Download
Update Time2026-01-30 20:47:56
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

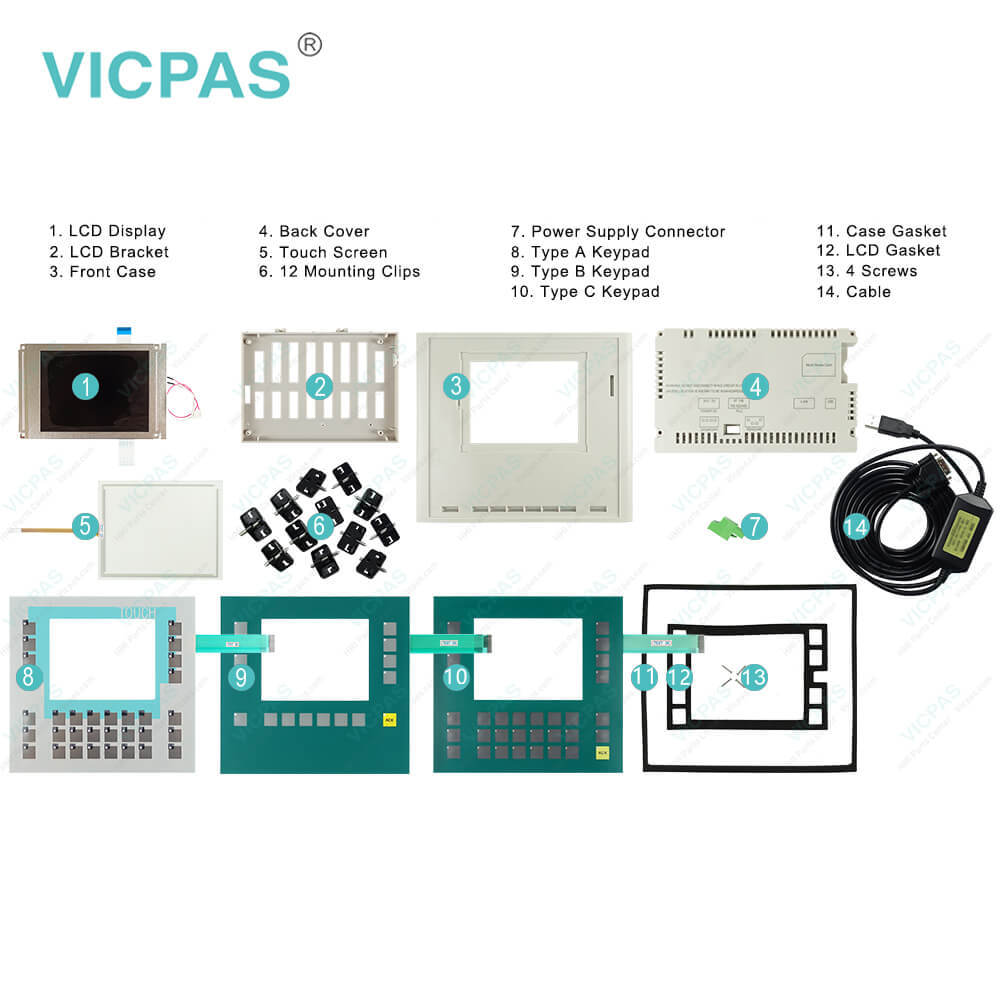

6AV6642-5DC10-1AC0 Siemens SIMATIC HMI OP177B OPERATOR PANEL Touchscreen, Membrane Keyboard, Display, Gasket, Power Supply Connector, Screws, Mounting Clips, LCD Bracket, Cable and Plastic Case Shell Repair

Order each part separately is available

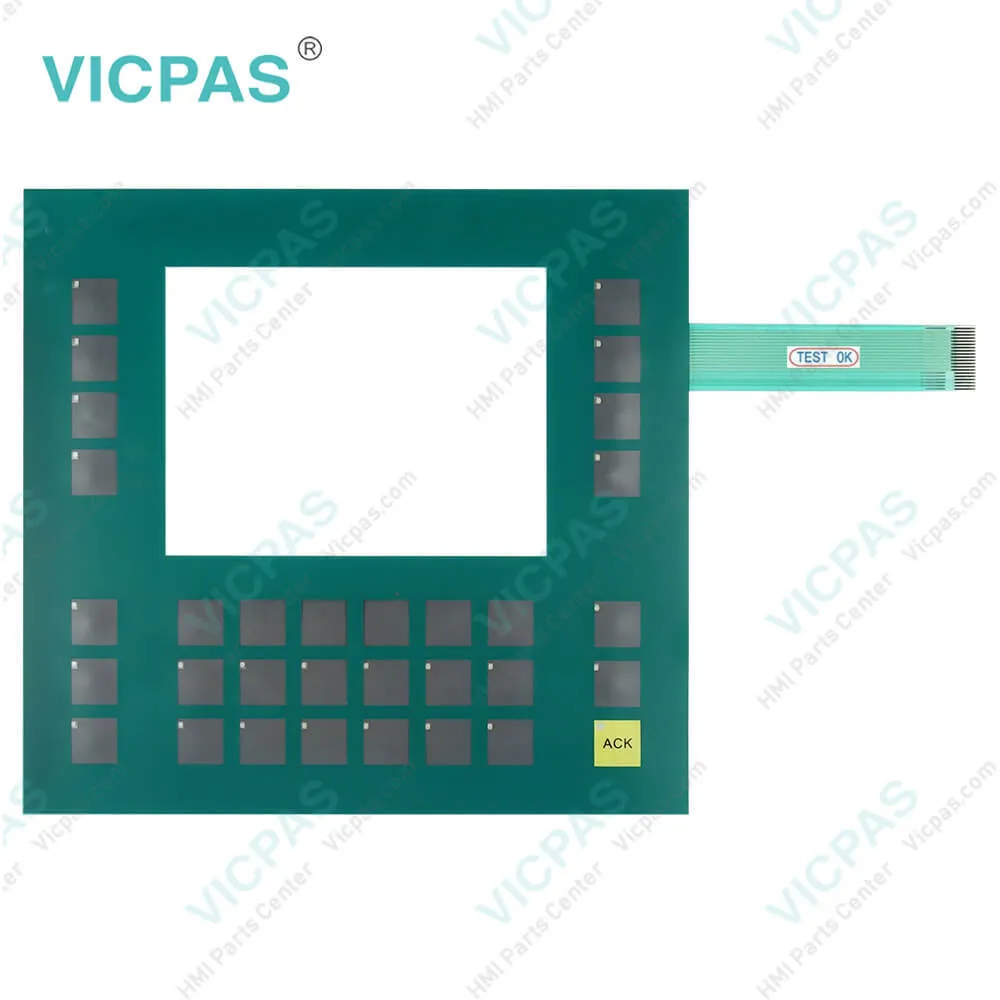

6AV6642-5DC10-1AC0 Siemens SIMATIC HMI OP177B OPERATOR PANEL Membrane Keypad, Touch Panel, Display, Gasket, Display Bracket, Mounting Clips, Power Supply Connector, Screws, Cable and Plastic Case Shell Repair Replacement

6AV6642-5DC10-1AC0 STARTER PACKAGE OP177B PN/DP COMPRISING: OP177B COLOR WINCC FLEXIBLE 2008 COMPACT, PC/PPI CABLE, MPI CABLE, SIMATIC HMI MANUAL COLLECTION, 5 LANGUAGES (GER,EN,FR,SP,IT)


OP 177B offers an additional feature. It can now be operated using widely available touchscreens in addition to the membrane keyboard. The function keys can be configured to system keys for specific screens.

The OP177B HMI device Control Panel can be opened as follows:
● Independently of a running project
– Press the "Control panel" button in the loader.
– By calling up from the Windows CE start menu.
● With active project
An operating element must be configured to open the Control Panel for this purpose.

Display Type: LCD STN
Display area, active: 115.18 mm x 86.38 mm (5.7")
Resolution: 320 x 240 pixels
Colors, displayable: 256 colors for OP 177B PN/DP 4 colors (blue mode) for OP 177B DP
Contrast control: yes
Back-lighting Half Brightness Life, typical: CCFL:50 000 h
Input unit Type: Resistive analog touch screen Membrane keyboard


Kernfix supply 6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen, Membrane Keyboard, Display, , Screws, Power Supply Connector, Gasket, Mounting Clips, Display Bracket, Cable and Plastic Case Shell with 6 months warranty and support Urgent Worldwide Shipping.





  Contact Best Price

Specifications:

Part Number:6AV6642-5DC10-1AC0
Screen diagonal:5.7 in
Character size:5 mm
Warranty:6-Months Warranty
Product Line:Siemens OP177B
Digital outputs:16
Number of colors:4 Blue levels
Resolution:320 * 240
Design as touch screen:YES
Design of display:STN display


Related BB Teach Pendant Part No. :

6AV6642-5DC10-1AC0Description Inventory status
6AG1642-0BC01-4AX0OP177B PN/DP COLORIn Stock
6AG1642-0DA01-4AX0Siemens OP177BIn Stock
6AG1642-0DA01-4AX1SIPLUS OP177BIn Stock
6AG1642-0DC01-4AX0SIPLUS OP177BIn Stock
6AG1642-0DC01-4AX1SIPLUS HMI OP177BIn Stock
6AV6551-2HA01-1AA0SIPLUS OP177BIn Stock
6AV6642-0DA01-1AX0SIPLUS OP177BIn Stock
6AV6642-0DA01-1AX1SIPLUS HMI OP177BIn Stock
6AV6642-0DC01-1AX0OP177BIn Stock
6AV6642-0DC01-1AX1Siemens OP177BIn Stock
6AV6642-5DC10-1AC0OP177B DP MONOIn Stock
0005-4050-710Simatic OP177B GEAIn Stock
0005-4050-810OP177B Simatic GEAIn Stock
0005-4050-818Siemens OP177B GEAIn Stock
0005-4050-950Simatic OP177B GEAIn Stock

6AV6642-5DC10-1AC0 Siemens OP177B Touchscreen Plastic Case PDF Download:

  • 6AV6642-5DC10-1AC0 SIMATIC HMI OP177B datasheet pdf
  • Siemens Simatic OP177B HMI touchpanel manual

    • FAQ:

    Question: What is the dimension of 6AV6642-5DC10-1AC0 Siemens OP177B membrane switch??

    Answer: The dimension of Siemens OP177B is 5.7 inch

    Question: what the software options for Siemens OP177B?

    Answer: The following software options are available for the TP 177B and the OP 177B:• WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.• WinCC Flexible/Sm@rtAccessThe Sm@rtAccess option enables you to set up communication between differentHMI systems.The following software options are available for the TP 177B 4":• Uninterruptable Power Supply (UPS) with USB supportWhen interfacing an uninterruptible power supply, the HMI device is shut down in acontrolled manner after a buffer time in the event of a power failure. The TP 177B 4"supports SITOP DC UPS modules connected via the USB port.

    Question: What is the 6AV6642-5DC10-1AC0 Siemens OP177B mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send Kernfix an email for best price.


    Common misspellings:

    6V6642-5DC10-1AC0

    6A6642-5DC10-1AC0

    6AV642-5DC10-1AC0

    6AV662-5DC10-1AC0
