2711-K3A5L1K

Order each part separately is available

The 2711-K3A5L1K is an electronic operator interface that provides functionality through color, grayscale or monochrome displays and through pixel graphics. The PanelView Standard 300 is available in several varieties of sizes and configurations to meet specific application requirements.

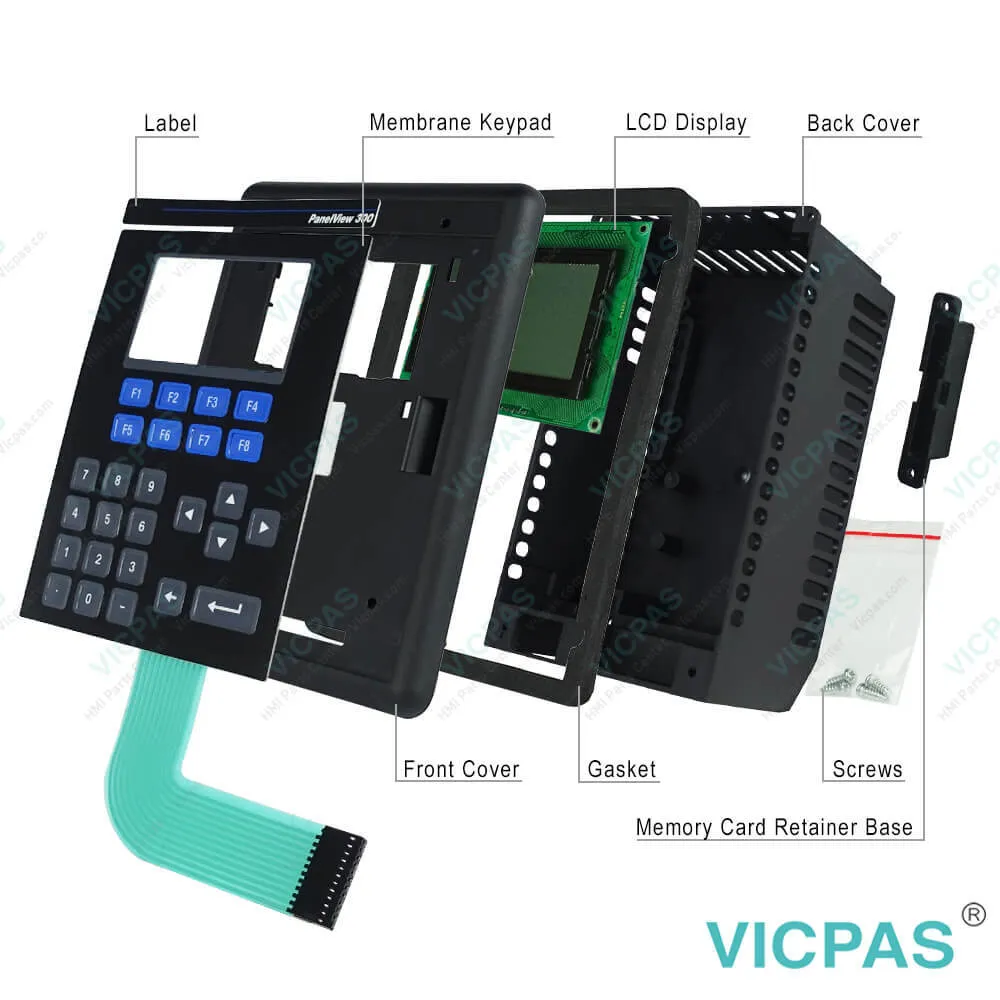

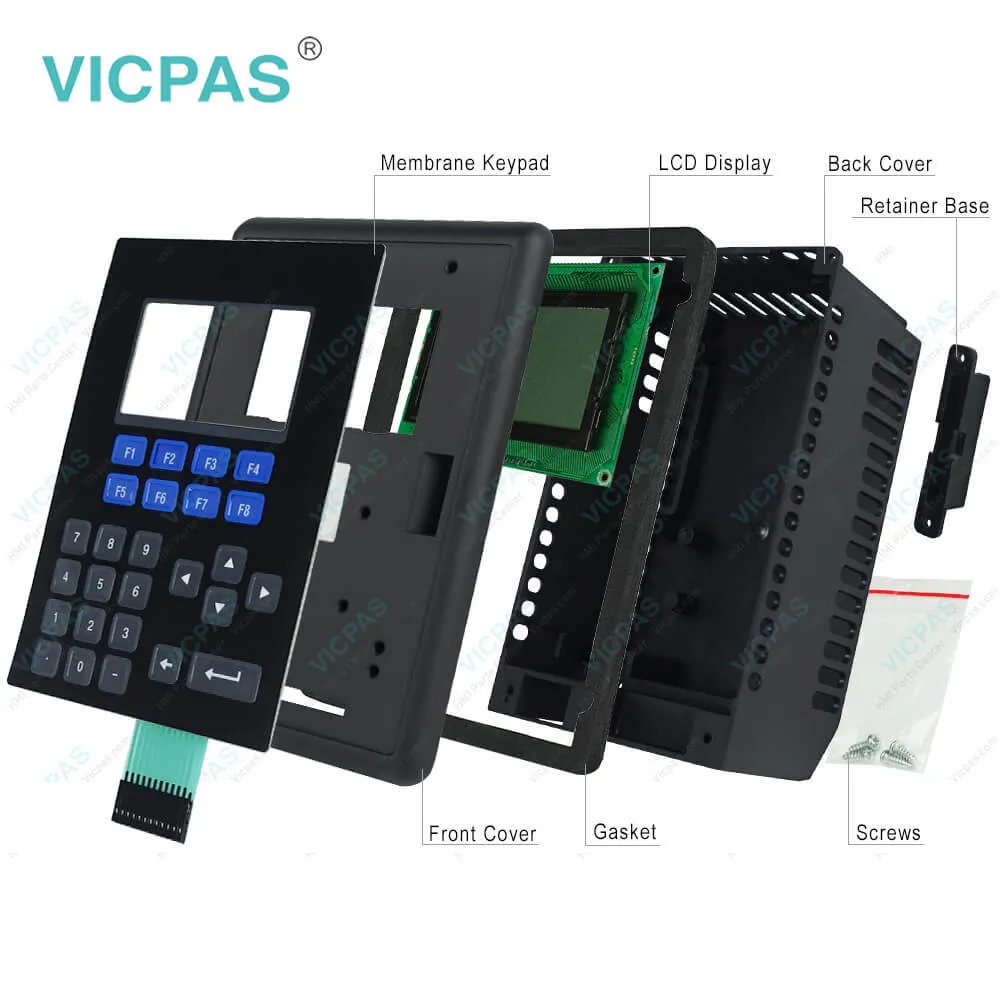

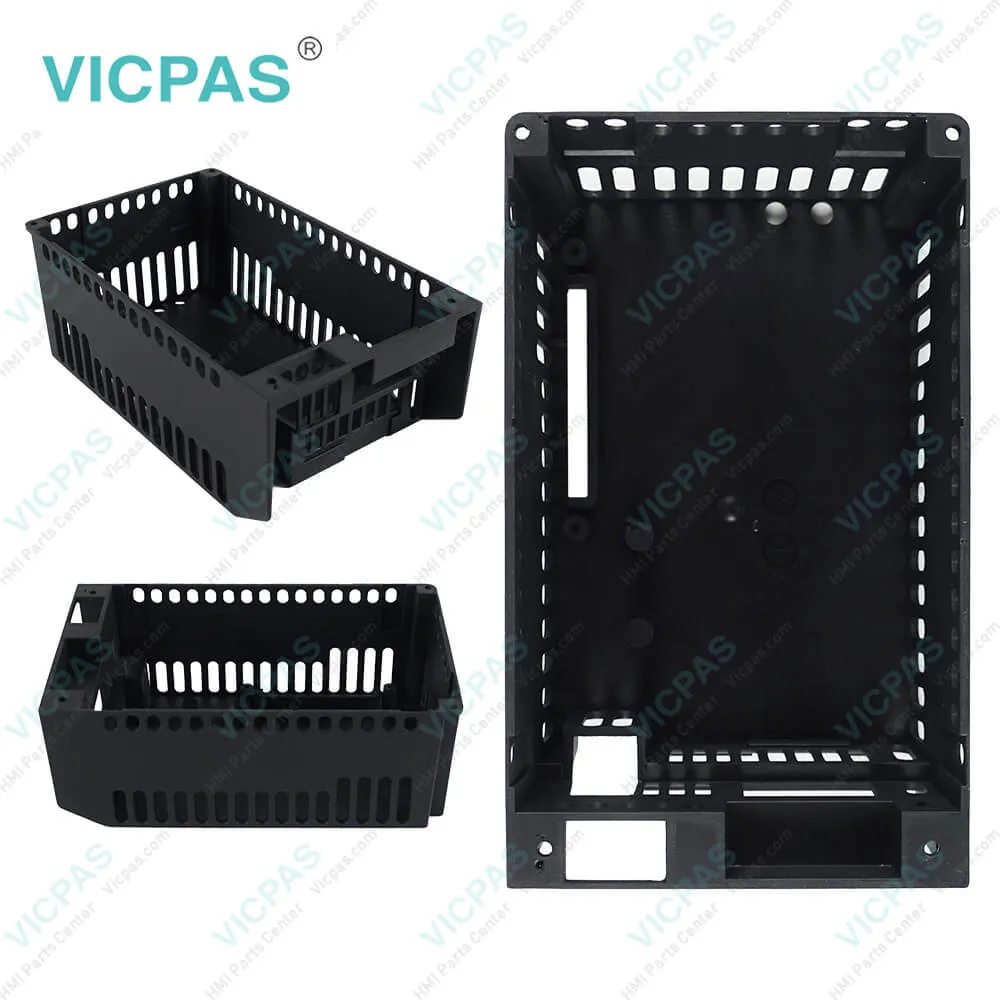

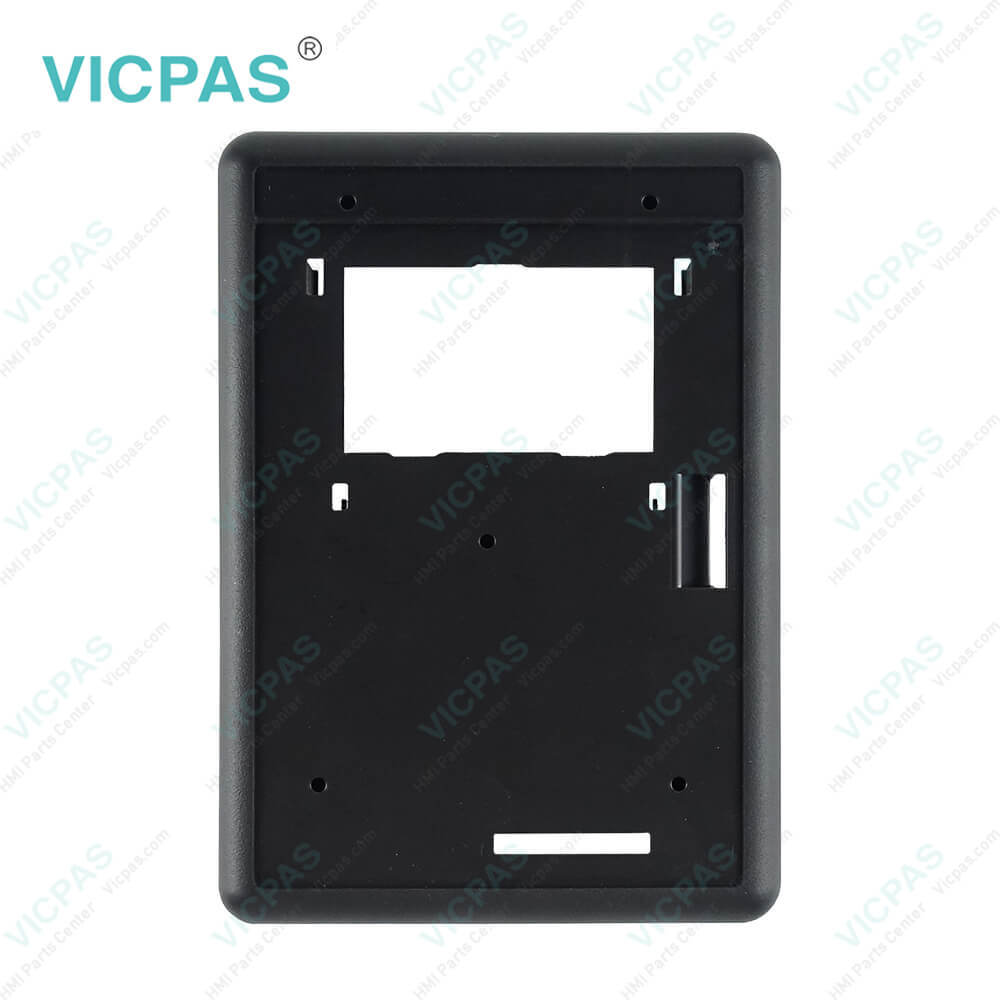

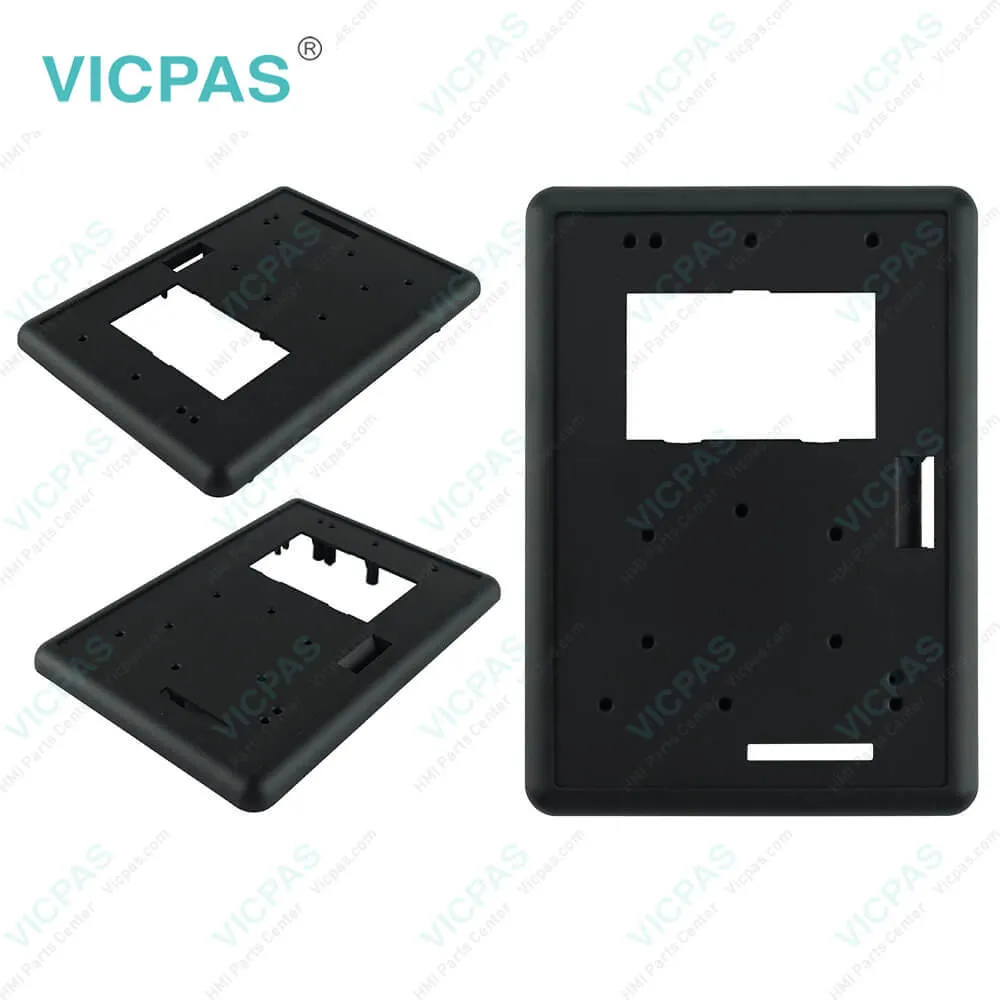

Kernfix supply 2711-K3A5L1K Panelview 300 membrane keypad switch, Plastic Body Cover, LCD Display Panel, Gasket, Label, Screws, Memory Card Retainer Base. All of them with Kernfix 180 days warranty and support Urgent Worldwide Shipping.

All these variations improve operator productivity and simplify the programming process. The 2711-K3A5L1K has an Operator keypad input with eight function keys and an LCD monochrome color display, with an LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, and the LED backlight has a standby life of 100,000 hours. The 2711-K3A5L1K comes with an irreplaceable battery and a runtime application memory of 170 KB. It runs on a PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports an ATA Memory card. The input voltage of the 2711-K3A5L1K is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC).
With a weight of 673 grams (1.48 pounds,) the 2711-K3A5L1K has a dimension of 197 x 140 x 82 millimeters (7.76 x 5.53 x 3.21 inches) (length, breadth, and height). The 2711-K3A5L1K’s operating temperature is between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), and its storage temperature is between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit), and a working relative humidity range from 5 to 95% noncondensing at 0-55 degrees Celsius (32-131 degrees Fahrenheit) working temperature. It has a Shock rating of 30g and operational vibration of 2g.
