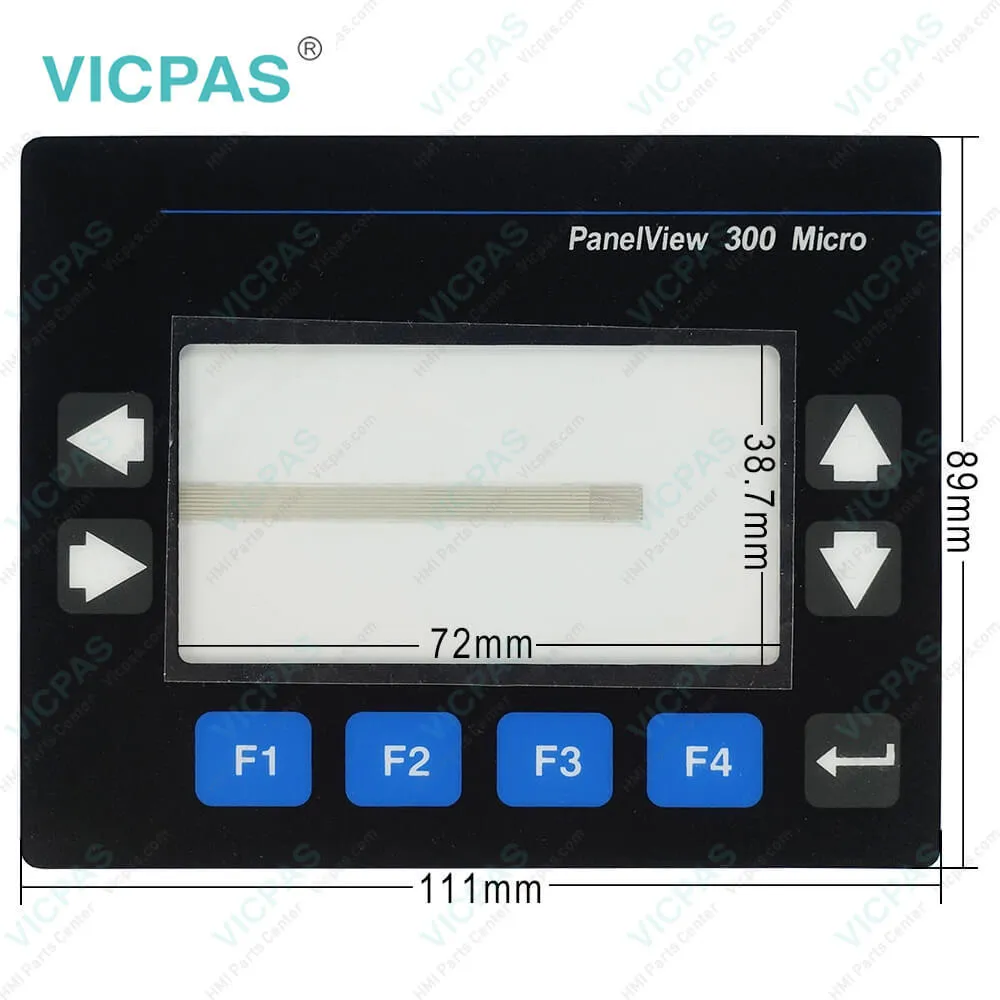

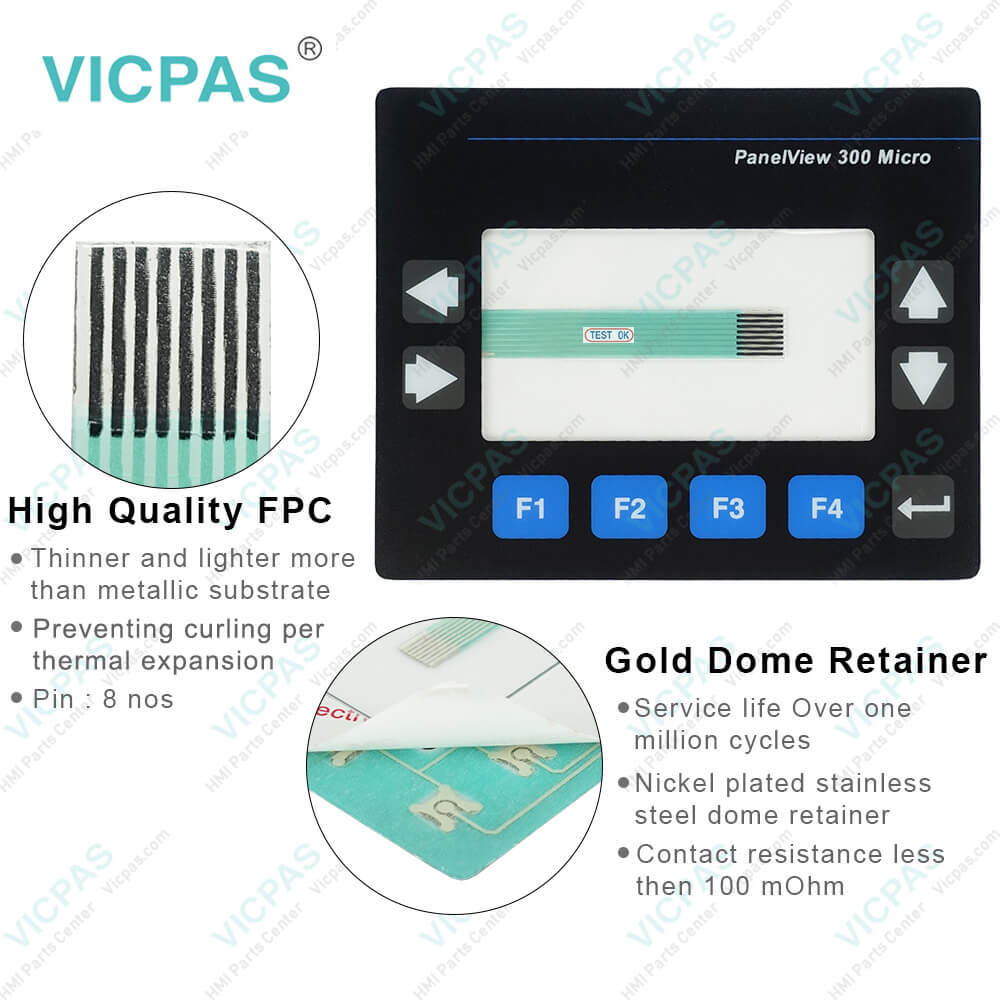

2711-M3A19L1 PanelView 300 Membrane Keyboard Keypad

Order each part separately is available

The 2711-M3A19L1 is an Allen-Bradley PanelView 300 operator terminal. The discontinued 2711-M3A19L1 PanelView 300 is an operator terminal that enables the user to interface with their machine. This HMI has a 3 in. monochrome display. This 2711-M3A19L1 PanelView allows the user to connect using Panelbuilder 32 software and an RS-232 (DH-485) Communication Port (8-Pin Mini-DIN) communication port with a 1761-CBL-PM05 communication cable(s).

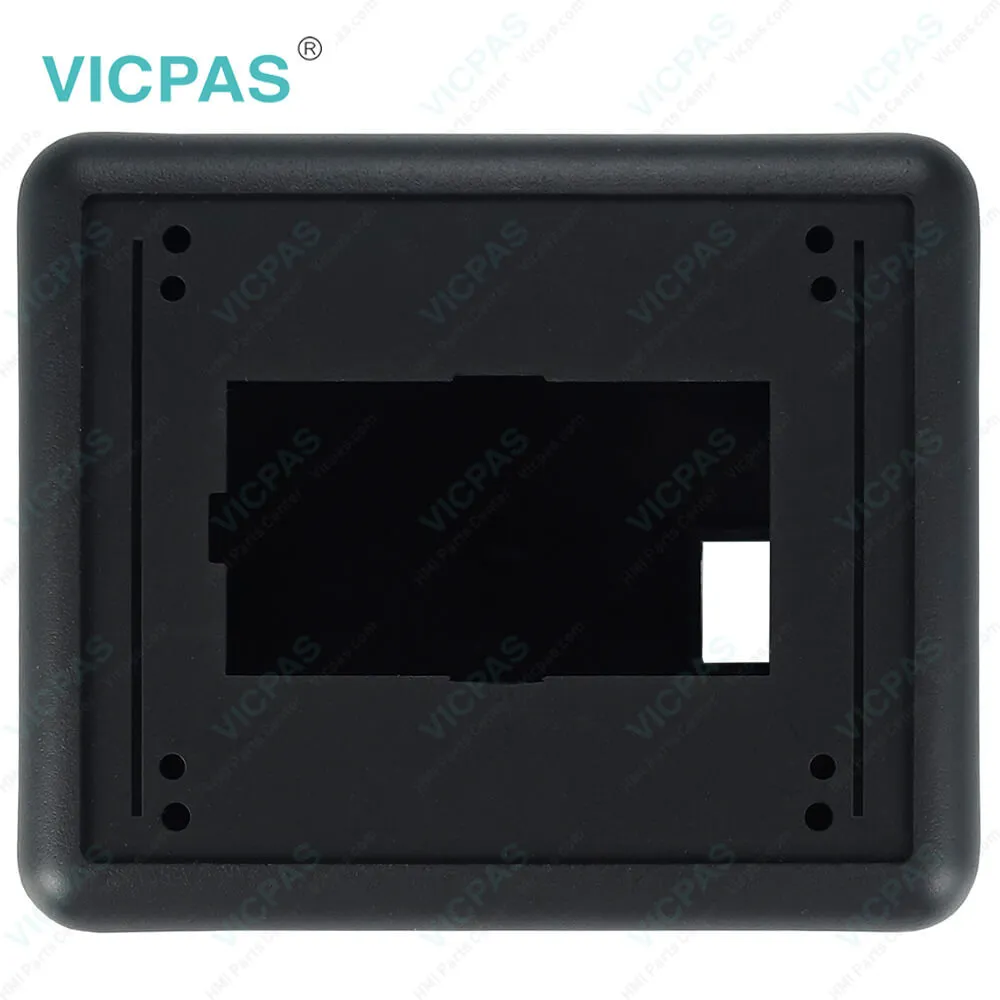

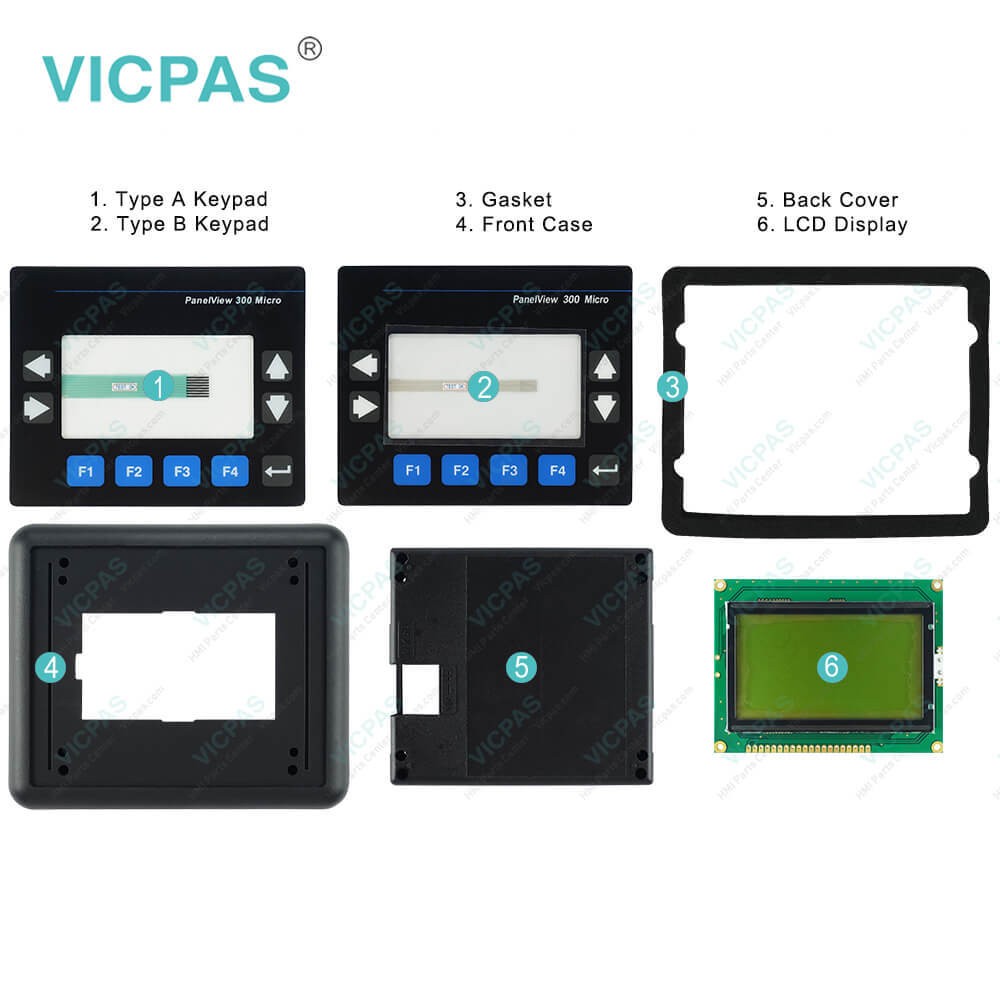

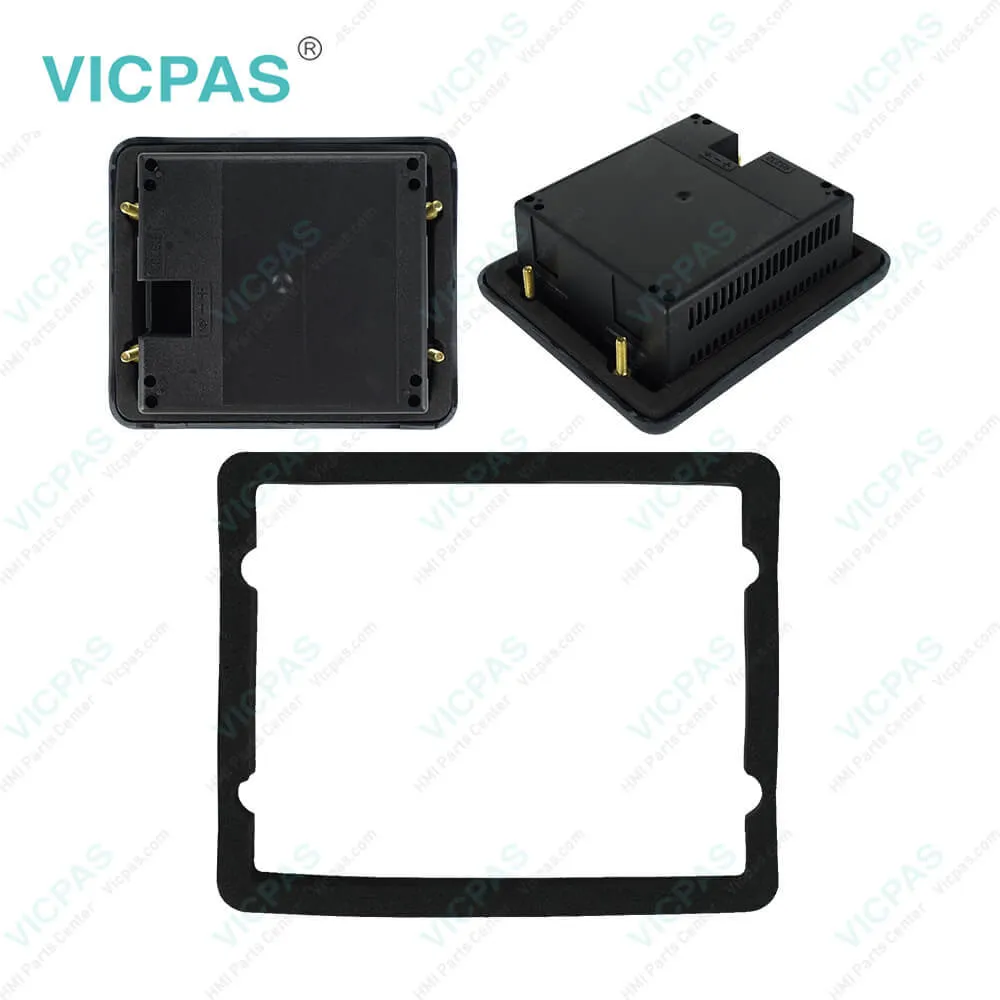

Kernfix supply 2711-M3A19L1 Touch Screen Monitor, membrane keypad switch, LCD display, HMI Case and gasket. All of them with Kernfix 180 days warranty and support Urgent Worldwide Shipping.
The user is able to control the 2711-M3A19L1 HMI using the Micro Keypad to input information and data. This 2711-M3A19L1 unit is powered using 24 Volts DC power and has 240 KB of memory. The most common 2711-M3A19L1 Series are A and B; the most common firmware include 4.00-4.48.

This 2711-M3A19L1 Panelview 300 micro has a DF1 screen lets you display and change the DF1/full duplex communication settings for a DF1 PV 300 micro terminal. Sets the communication parameters for the DF1 port on the PV 300 terminal. The settings need to match the target device. You can switch between the available combinations for parity, data bits, and stop bits. The DF1 port on the PLC-5 controllers allows a parity of none or even parity with 8 Data Bits.
