2711-B5A20 Touch Screen Panel with Membrane Keypad

Order each part separately is available

The obsolete Allen-Bradley Panelview 550-series 2711-B5A20 terminal is an operator terminal that allows users to interface with bigger machines. The 2711-B5A20 Panelview 550 creates its interface with a 5.5-inch monochrome blue mode LCD that displays graphics in blue pixels. The LCD can accommodate an antiglare shield to minimize reflections on the screen that make it hard to read. This HMI allows the user to connect to other machines by using Panelbuilder 32 software and with the EtherNet/IP Communication Port and the RS-232 Printer Port with one or more Standard Ethernet communication cables. The user is able to control the unit by using both the keypad and the touchscreen to enter information, data, and commands.

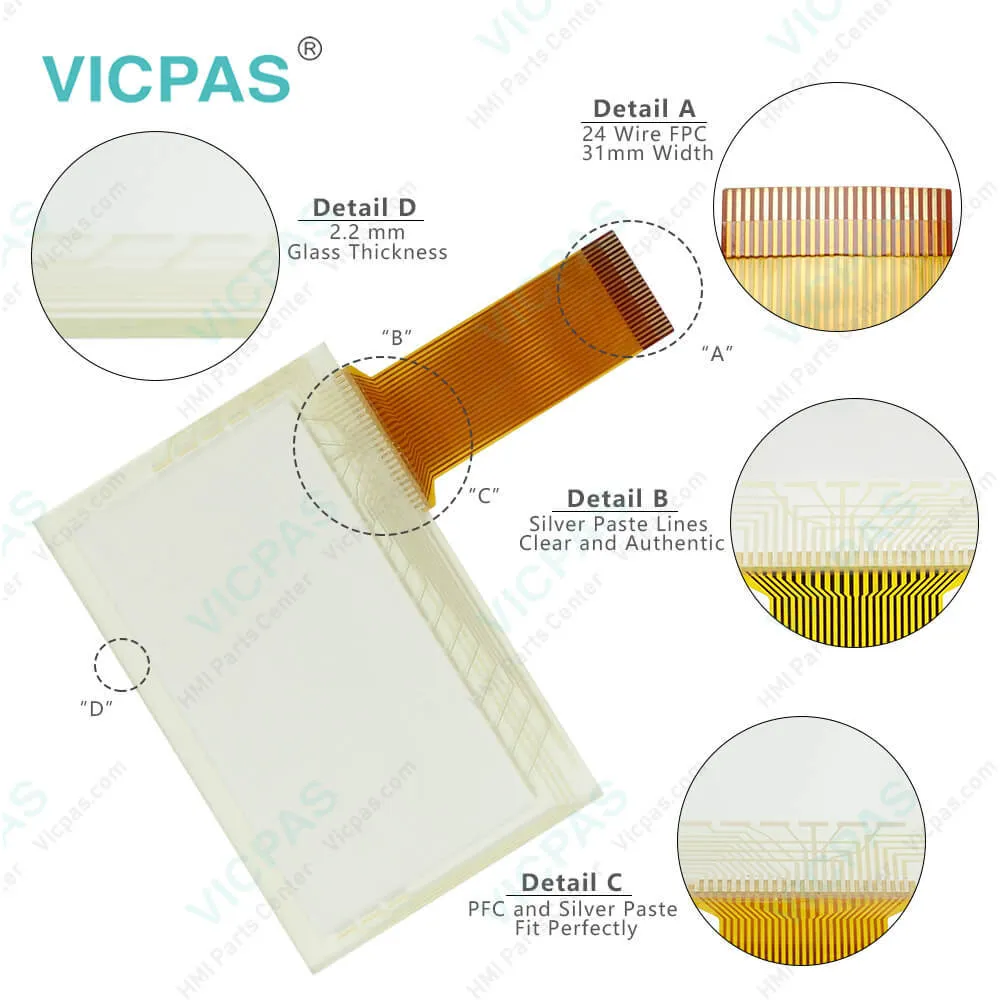

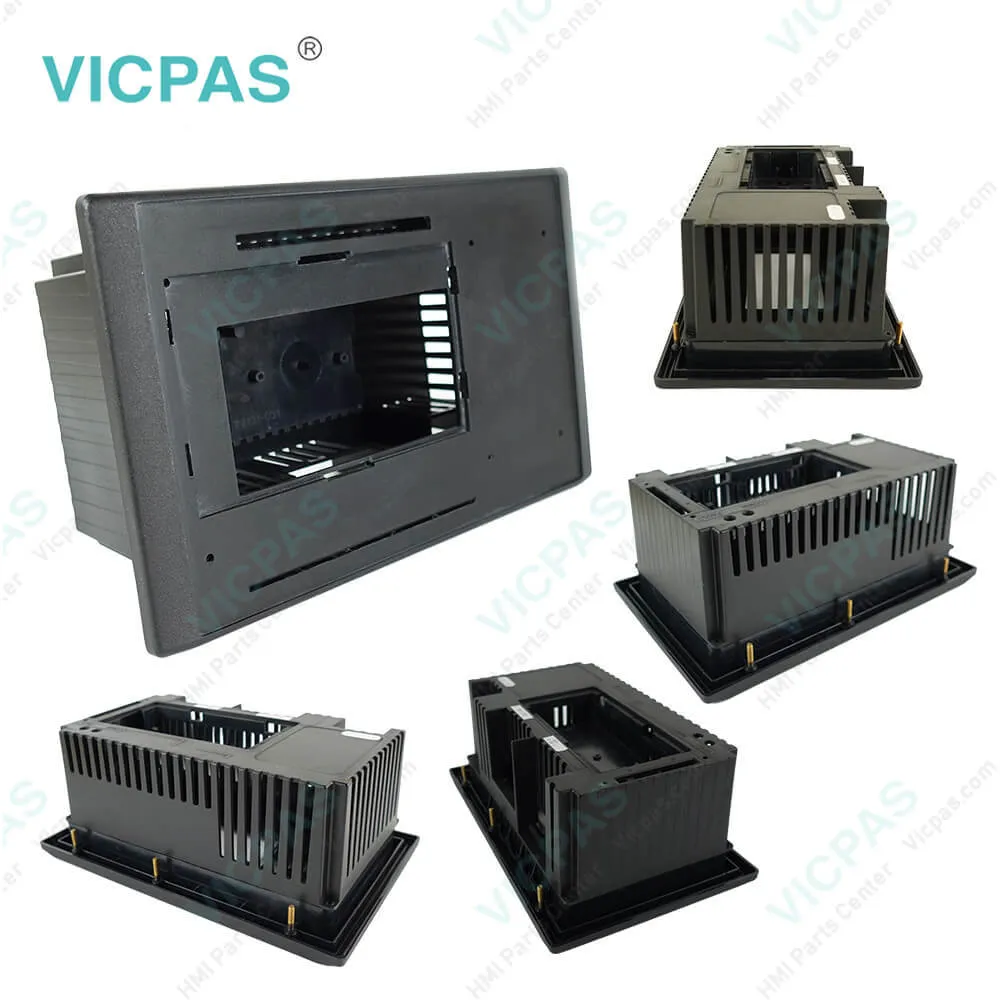

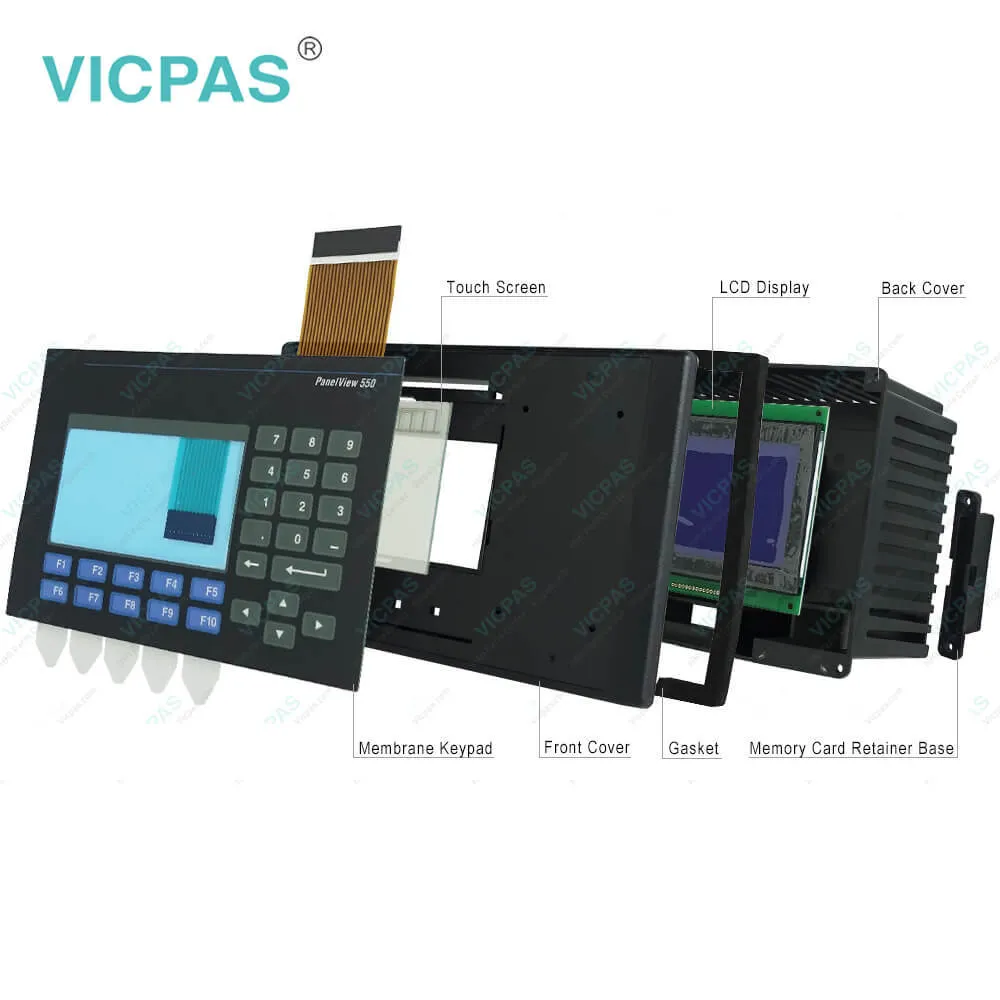

Kernfix supply Allen-Bradley Panelview 550 2711-B5A20 HMI touch screen panel, Plastic Shell, LCD Display, Memory Card Retainer Base, Gasket, Sticker, Screws, Case Accessories and membrane keyboard keypad for repair replacement. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.

The 2711-B5A20 Panelview 550 HMI terminal is IEC IP54, IEC IP65, UL, CUL, C-Tick, CE, Class I Division 2, Class I Zone 2, Class II Division 2, and Class III Division 1 certified for operation in a variety of industrial environments and authorized use in several countries. Note that the 2711-B5A20 is only rated for indoor use and that it can fit into an indoor-rated NEMA Type 12, 13, or 4X enclosure.
