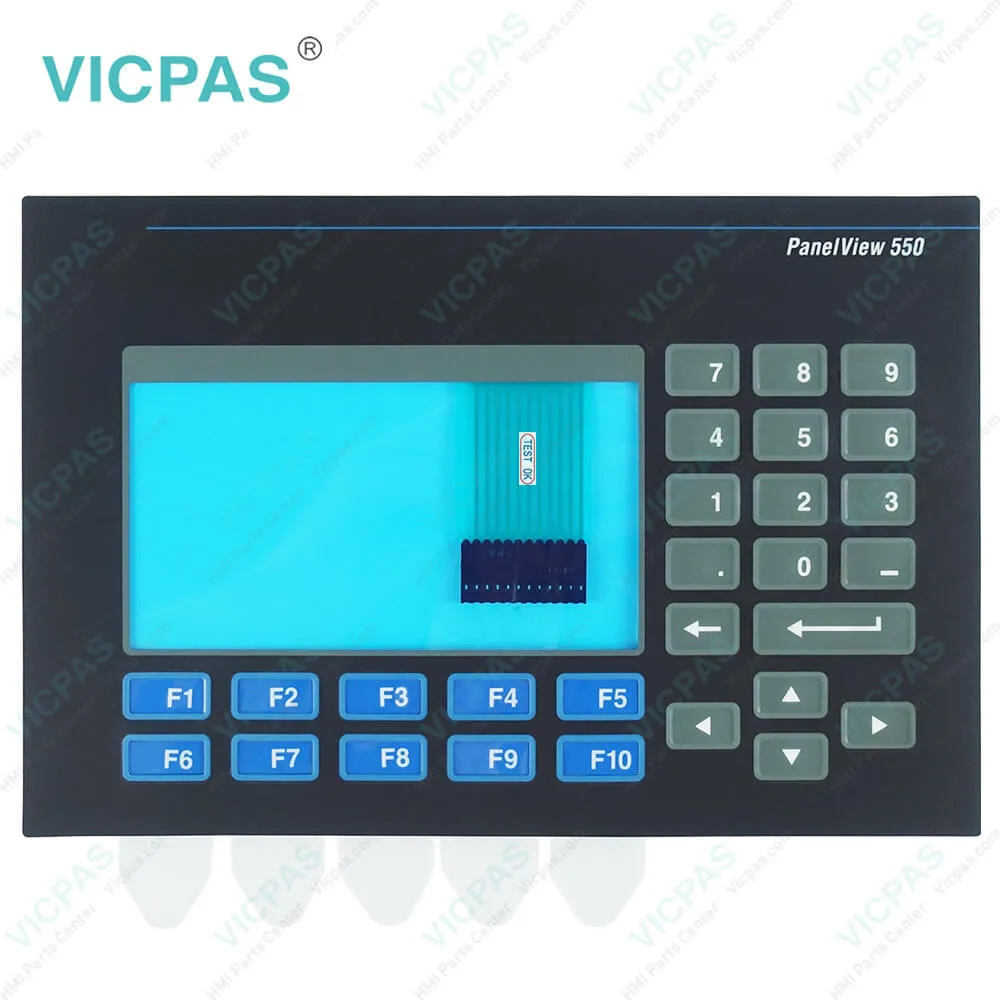

2711-K5A1 PanelView 550 Membrane Keyboard Keypad

Order each part separately is available

The obsolete Allen-Bradley Panelview 550 2711-K5A1 is an operator terminal that allows the users to interface with their other machines because it is a human-machine interface or an HMI. This Panelview operator terminal has a 5.5 in. Monochrome LCD blue mode screen. This HMI allows the user to connect to other devices and machines by using the Panelbuilder 32 software and by using the DeviceNet Communication Port and the RS-232 Printer Port with one or more 2711-NC13 communication cables to connect the HMI to the other machines.

The user is able to control the Allen-Bradley 2711-K5A1 HMI terminal by using its 10-key keypad to input information and different commands. This unit is powered by using 120V AC power. This unit has the following internal memory: 170 KB of application runtime. This unit has an internal backlight which is replaceable and this backlight’s replacement part number is 2711-NL1.

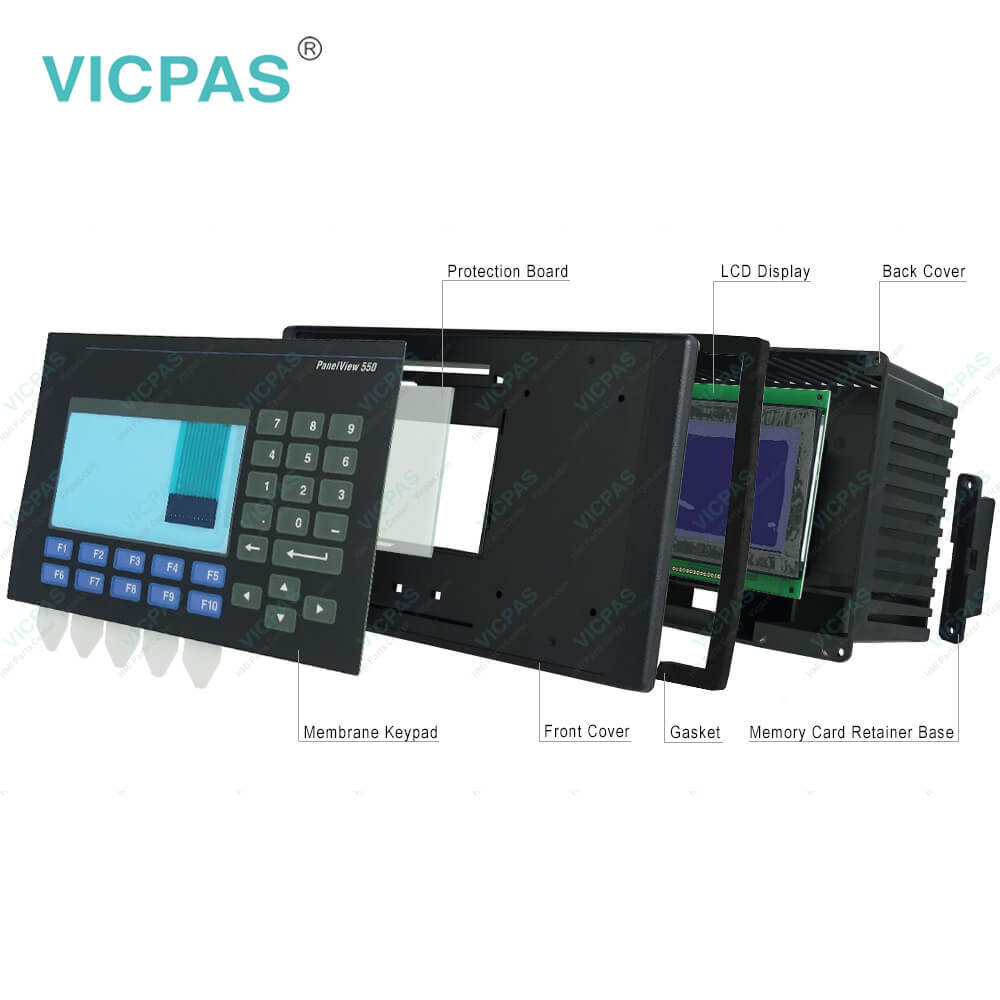

Kernfix supplies 2711-K5A1 Touch Screen Monitor, membrane keypad switch, LCD display, Memory Card Retainer Base, Gasket, Protection Board, Screws, Sticker. All of them with Kernfix 180 days warranty and support Urgent Worldwide Shipping.

The most common series that the Allen-Bradley 2711-K5A1 Panelview 550 HMI operator terminal is featured in are Series A, B, C, D, E, F, G, and H and the most common firmware versions that the HMI operator terminal can run include firmware versions 1.00 through 4.48. Although the Allen-Bradley 2711-K5A1 Panelview 550 HMI operator terminal can still function, Allen-Bradley has discontinued its manufacture and replaced it with Panelview Plus 6 HMI terminals that work with several new and up to date features.
