2711-K5A10L1 PanelView 550 Membrane Keyboard Keypad

Order each part separately is available

The Allen-Bradley Panelview 550 2711-K5A10L1 is an obsolete operator interface terminal that has been replaced by the Allen-Bradley PanelView Plus 6 Terminal. The 2711-K5A10L1 Panelview 550 terminal allows programmers and users to interface with their other machines because it is a human-machine interface or an HMI. This Panelview device has a 5.5 in. monochrome LCD blue mode screen for operator interaction and for showing data. This HMI device allows the programmer or the user to connect to other and larger machines by using the Panelbuilder 32 software and by using a DeviceNet Communication Port and an RS-232 Printer Port with one or more 2711-NC13 communication cables.

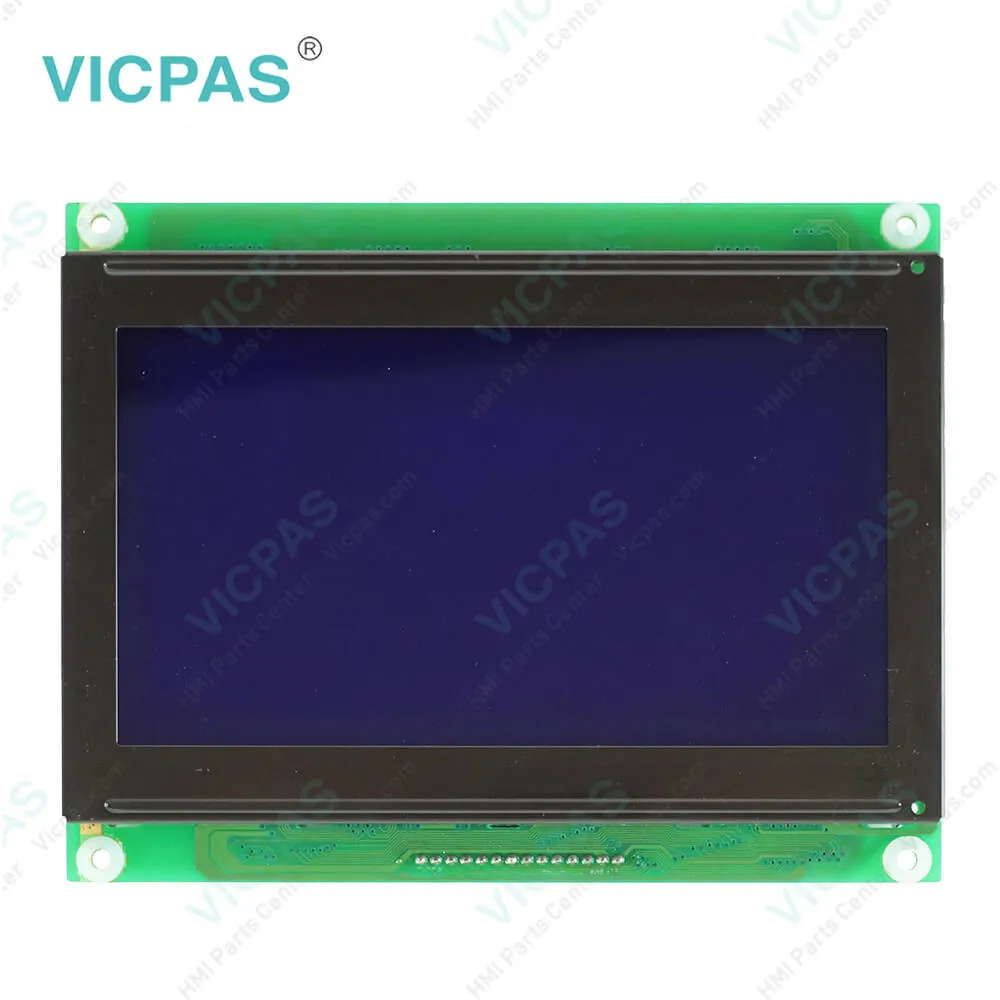

Kernfix supply 2711-K5A10L1 membrane keypad switch, LCD Display, Memory Card Retainer Base, Enclosure, Gasket, Protection Board, Screws, Sticker. All of them with Kernfix 180 days warranty and support Urgent Worldwide Shipping.

The user is able to control the 2711-K5A10L1 HMI operator terminal by using the keypad to input information and commands. This keypad has 10 function keys (F1-F10) that can be programmed to remember and to control specific functions. The whole 2711-K5A10L1 Panelview 550 HMI operator terminal is powered using 24V DC power. This unit has the following internal memory: 170 KB of application runtime and the operator terminal has an internal backlight replacement part number of 2711-NL1. The approximate shipping weight and shipping dimensions of the 2711-K5A10L1 Panelview 550 HMI Terminal are 6 lbs and 14 x 11 x 8 inches, respectively. The most common manufacturing series that the 2711-K5A10L1 HMI terminal is featured in are Allen-Bradley Series A, B, C, D, E, F, G, and H, and the most common firmware versions that the 2711-K5A10L1 HMI terminal can use include Firmware Versions 1.00-4.48.
