2711-K5A12L1 PanelView 550 Membrane Keyboard Keypad

Order each part separately is available

The obsolete Allen-Bradley Panelview 550 2711-K5A12L1 is an operator interface terminal that allows the user to interface with bigger machines. This operator terminal is an HMI or a human-machine interface device which has a 5.5 in. monochrome LCD blue mode display. This HMI allows the user to connect to external devices by using the Panelbuilder 32 software and by using a Profibus Communication port with one or more 2711-NC13 communication cables. The user is able to control the unit by using its 10-key function keypad that has function keys labeled from F1 to F10 to input information and commands.

This unit is powered using 24V DC power. This unit has the following internal memory: 170 KB of application runtime. This unit has an internal backlight that can be replaced. Its replacement part number is 2711-NL1. The approximate shipping weight and dimensions of the 2711-K5A12L1 HMI operator terminal are 6 lbs and 14 x 11 x 8 inches, respectively. The most common series for the 2711-K5A12L1 Panelview 550 terminal are Series A, B, C, D, E, F, G, and H. The most common firmware that the terminal runs includes Firmware Versions 1.00-4.48.

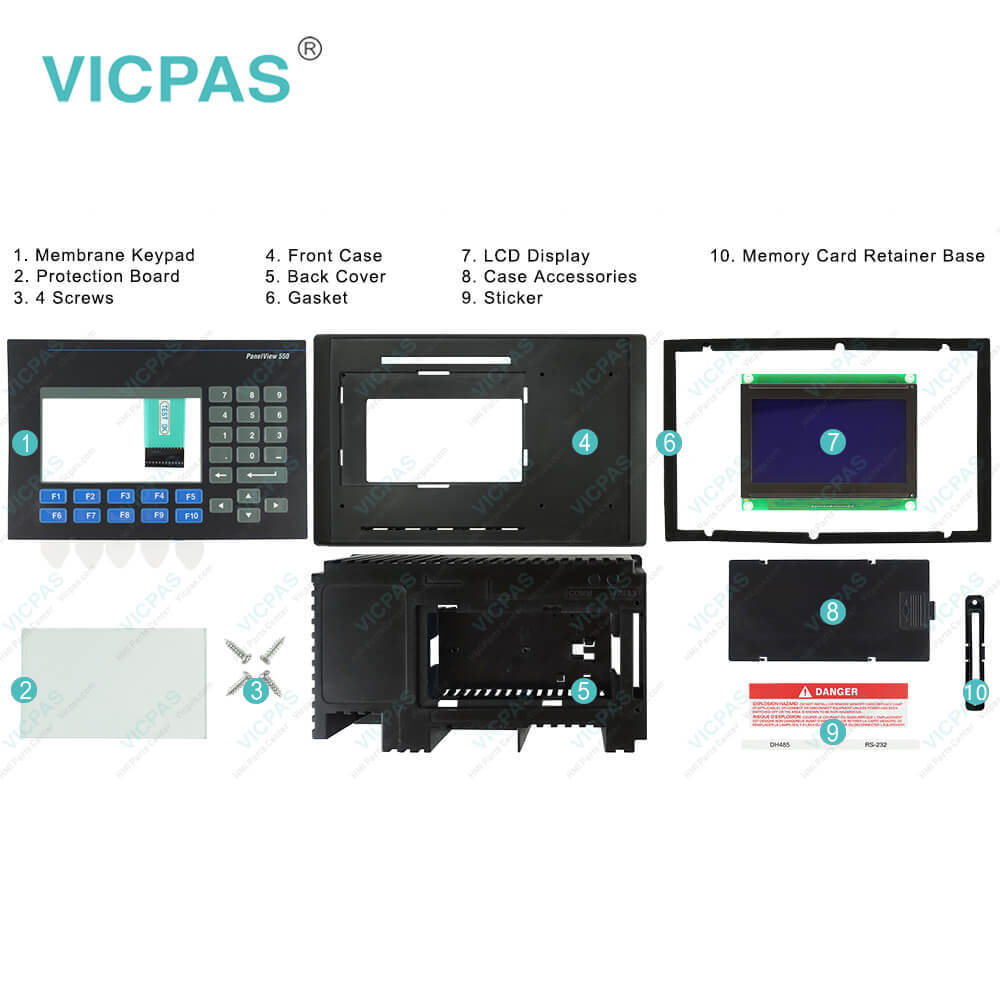

Kernfix supply 2711-K5A12L1 membrane keypad switch, Plastic Body Cover, LCD Display Panel, Gasket, Protection Board, Screws, Memory Card Retainer Base, Sticker. All of them with Kernfix 180 days warranty and support Urgent Worldwide Shipping.

The Allen-Bradley 2711-K5A12L1 HMI operator terminal interfaces with other machines and controls their functions through the Machine Edition of the FactoryTalk View Studio software. The FactoryTalk software can store and convert imported Panelview and Panelbuilder 32 applications by means of the FactoryTalk Import Wizard. The Import Wizard makes importing and converting data easy with its step-by-step instructions and its quick and simple data conversion.
