2711-K6C10 PanelView 600 Membrane Keyboard Keypad

Order each part separately is available

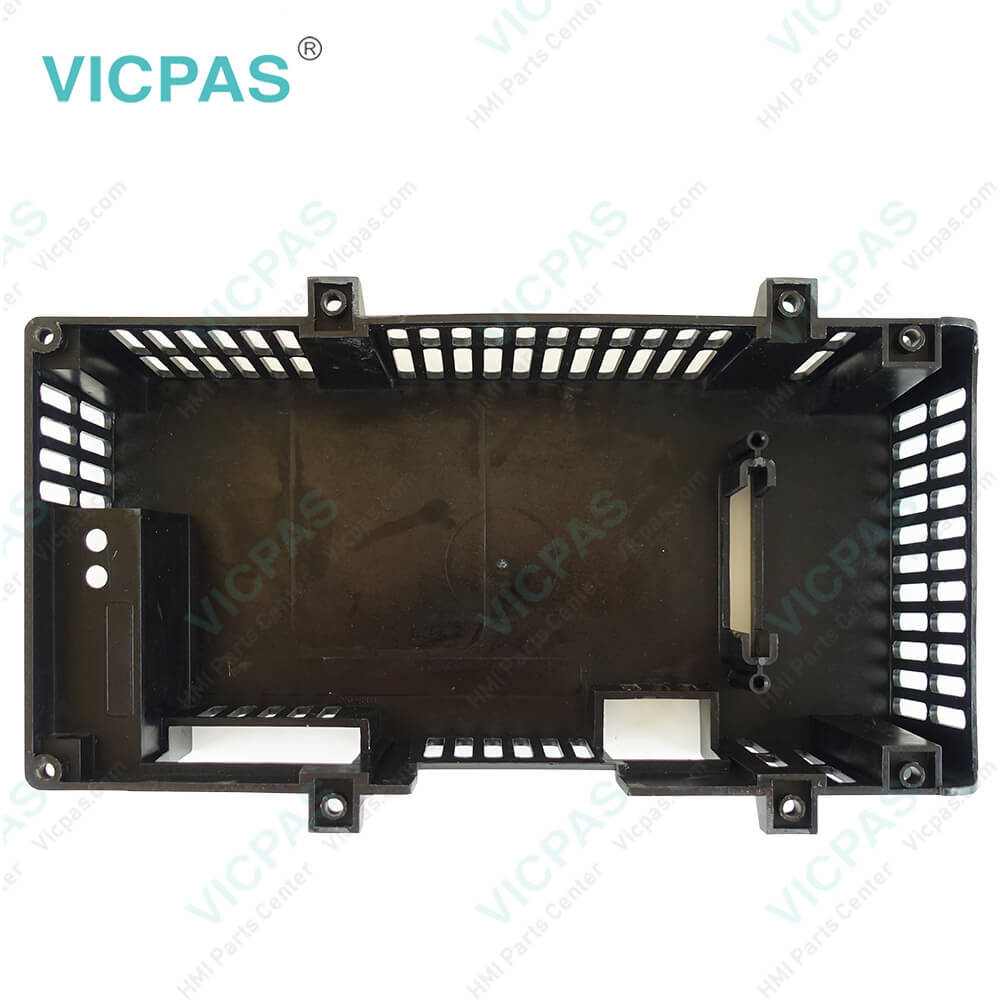

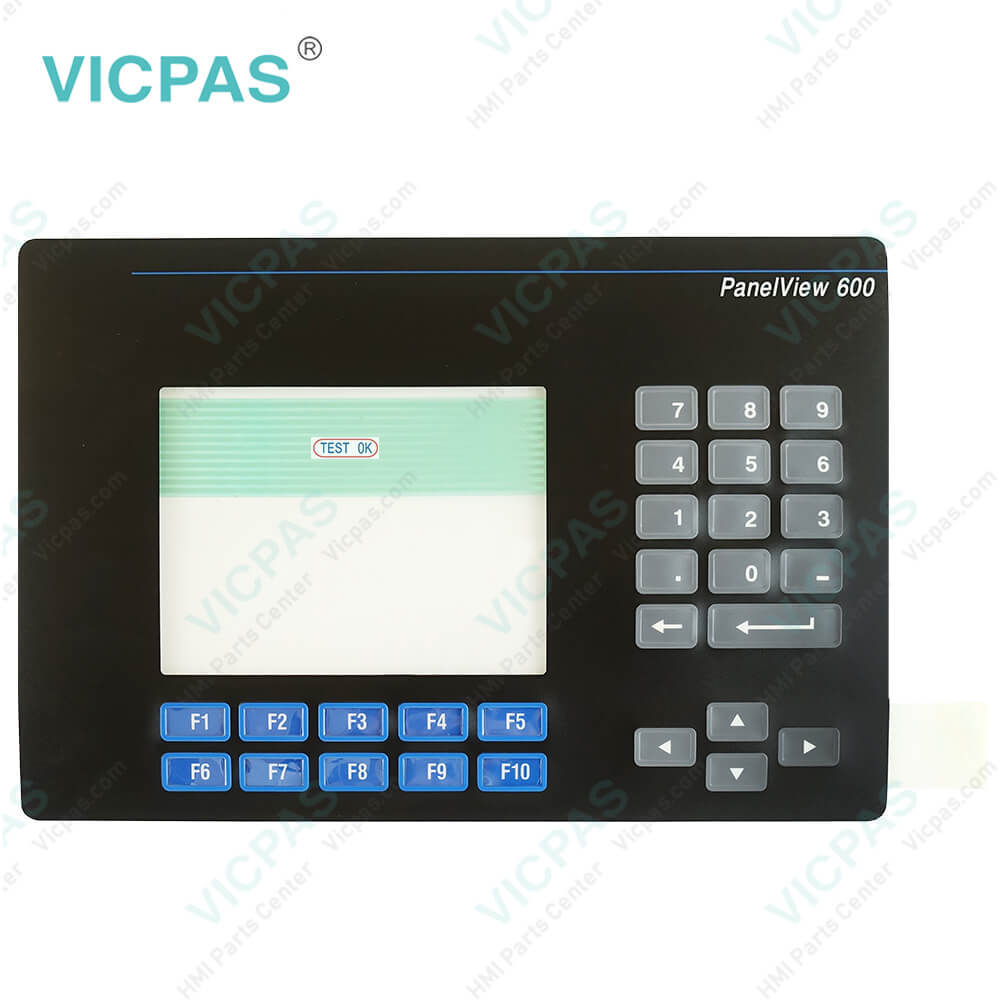

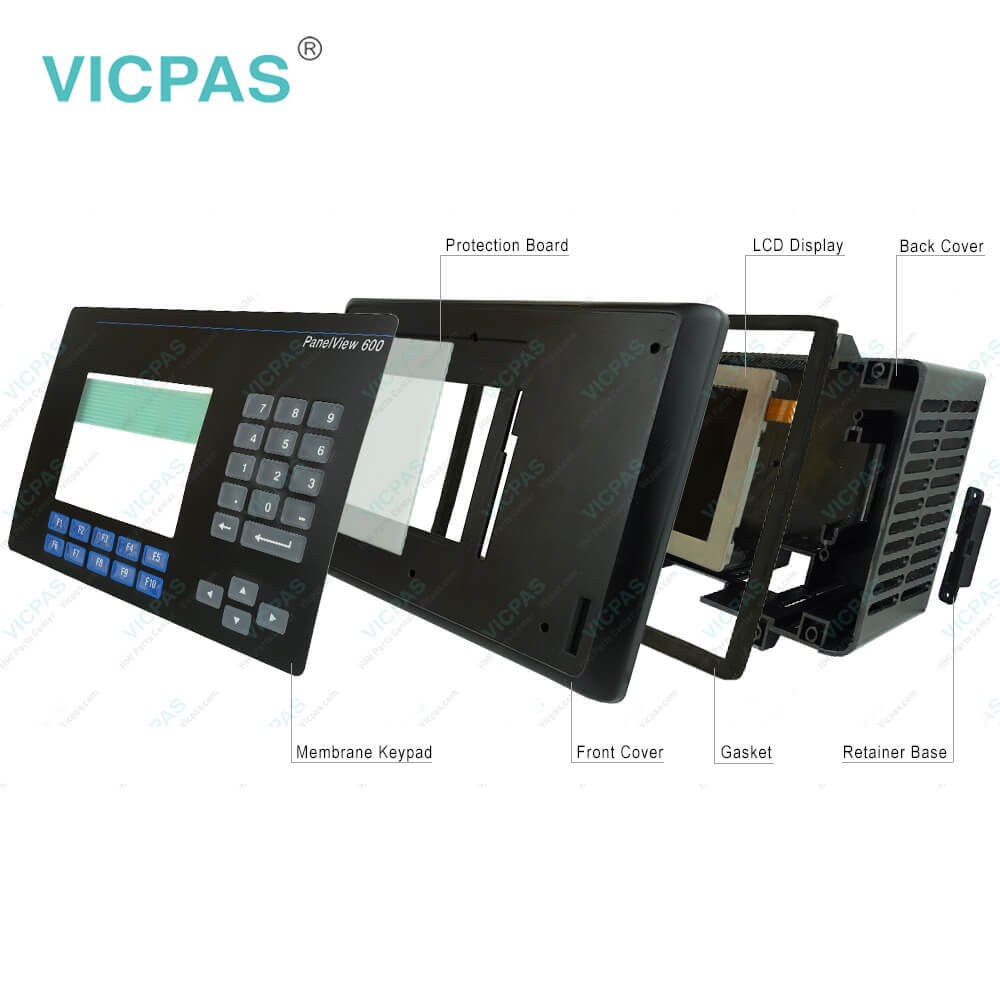

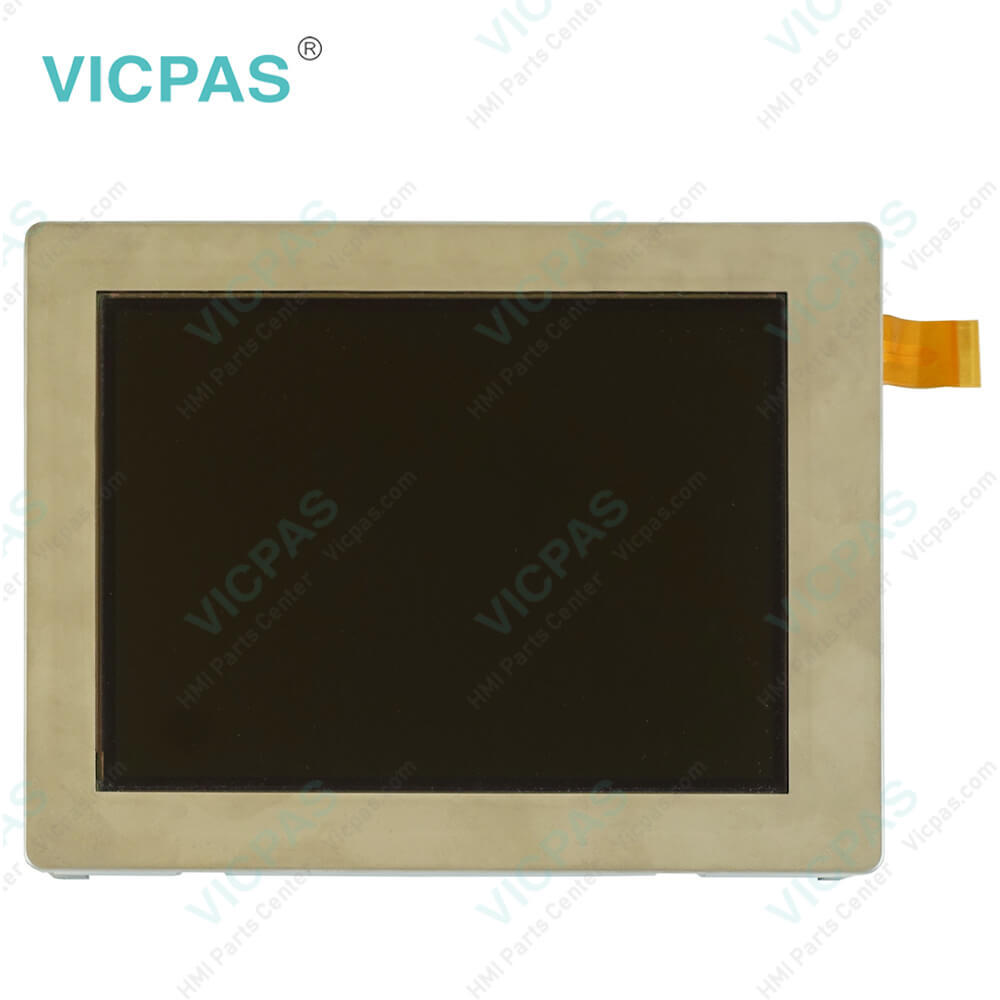

Kernfix supply Allen Bradley Panelview 600 2711-K6C10 membrane keypad, Protection Board, Plastic Shell, LCD Display, Memory Card Retainer Base, Gasket to replace, make the HMI running. We provide a 1-year warranty of the most product, which include most of membrane keyboard, Protection Board, LCD Display, Memory Card Retainer Base, Enclosure, Gasket.

The discontinued Allen Bradley Panelview 600 2711-K6C10 is an operator terminal that enables the user to interface with their machine. This HMI has a 5 in. Color Display. This Panelview allows the user to connect using Panelbuilder 32 software and a DeviceNet and RS-232 Printer communication port with a 2711-NC14 communication cable(s). The user is able to control the HMI using the Keypad to input information and data. This unit is powered using 85-264 VAC power. This unit has the following internal memory: 240 KB. If applicable this unit has an internal backlight replacement part number of 2711-NL3.

The approximate shipping weight and dimensions are 6 lbs. and 14 x 11 x 8 in. The most common Series are: A, B, C, D, E, F, G, H, I, J, K, and L and the most common firmware include 1.00-4.48. The DeviceNet terminals connect and communicate at device level on a DeviceNet link (at 125k, 250k or 500k baud) using server explicit, client explicit, I/O, or listen only messaging. They can connect to PLC, SLC, and ControlLogix controllers on the link. The link uses a DeviceNet Scanner Module. Direct access to data minimizes ladder logic. Application files are easily downloaded or uploaded using PanelBuilder32 through the DeviceNet network, or directly via the on-board RS-232 printer port, or with a PC memory card. The DeviceNet network supports change-of-state, cyclic, polled, and peer-to-peer messaging for more efficient communication.
