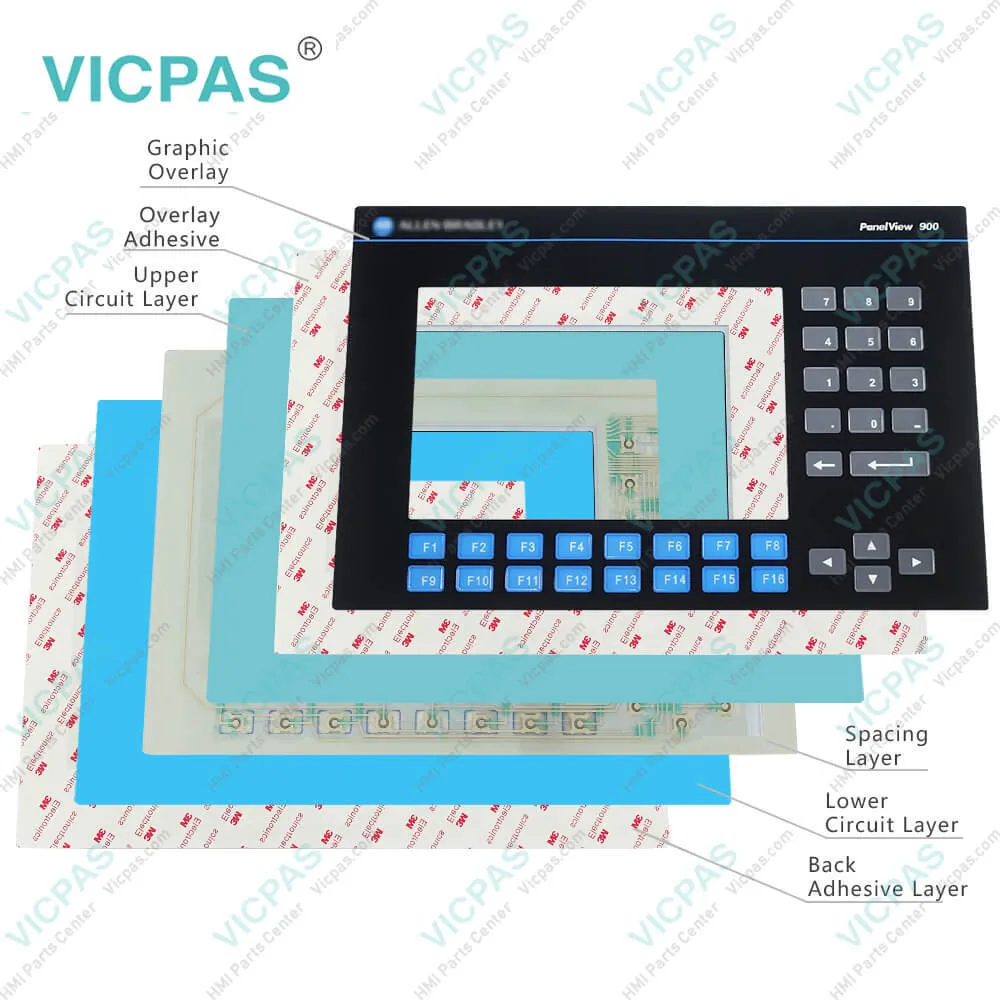

2711-K9A1 PanelView 900 Membrane Keyboard Switch Repair

Order each part separately is available

The Allen-Bradley 2711-K9A1 is a 9-inch keypad input HMI for displaying and monitoring information and executing applications in the logic controller. It is an AC PV900M that is part of the Bulletin 2711 PanelView 900 Standard Operator Terminal series. It comes with a Remote I/O Communication Port that connects to a sub-scanner or a scanner on an RIO network. The RIO parameters are set up initially via an out-of-the-box screen at first powerup. And once an application has been downloaded, this screen will be erased.

The PanelView 2711-K9A1 Operator Interface also features an RS-232 Printer Port that communicates with printers supporting the IBM enhanced character set. Settings are retained between power cycles. This port also allows connection with the RS-232 port of a computer for transferring application files. To develop these applications for the PanelView terminal, a Windows program – the PanelBuilder32 software is required. The 2711-K9A1 Terminal comes with a durable AC gas plasma monochrome display with a 640 x 400-pixel screen. To the right is the 14-button input keypad containing the numeric 0-9, minus, decimal point, enter, and backspace keys. The 2711-K9A1 also has user-defined function keys from F1 to F16 and a set of cursor keys. It requires a 120 V AC input power source. The 2711-K9A1 has a supply voltage ranging between 85 and 264V AC at 47-63 Hz with a maximum power consumption peaking at 110 VA.

Kernfix supply Allen Bradley Panelview 900 2711-K9A1 membrane keyboard switch, Protection Board, Plastic Case, LCD Display, Gasket, Memory Card Retainer Base, Sticker for repair replacement, make the HMI running. We provide a 1-year warranty of the most products, which include most of touch screen panel, membrane keypad, LCD display, Protection Board, Plastic Cover Body, LCD Screen, Memory Card Retainer Base, Gasket, Sticker and protective case shell housing.
