2711-K9A15
| Brand | Allen Bradley |
|---|---|
| Model | 2711-K9A15 |
| Warranty | 365 Days |
| Product Line | PanelView 900 |
| Supply | PanelView 900 Membrane Keypad Switch |
| Parts | 2711-K9A15 Membrane Keypad Switch |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 21:58:24 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
2711-K9A15 PanelView 900 Membrane Keyboard Keypad Switch LCD Display Plastic Case Repair Replacement
Order each part separately is available
The 2711-K9A15 comes with an AC electrical rating. Its maximum power consumption peaks at 110 VA while its supply voltage runs from 85-264V AC at 47-63 Hz. It can withstand an operating vibration of 2 g at up to 2,000 Hz. The heat dissipation is at 17 W (577 BTU/HR). For optimal product life and efficiency, maintain an operating temperature between 0 and 50 ° C (32 and 122 ° F) with a non-condensing relative humidity level.

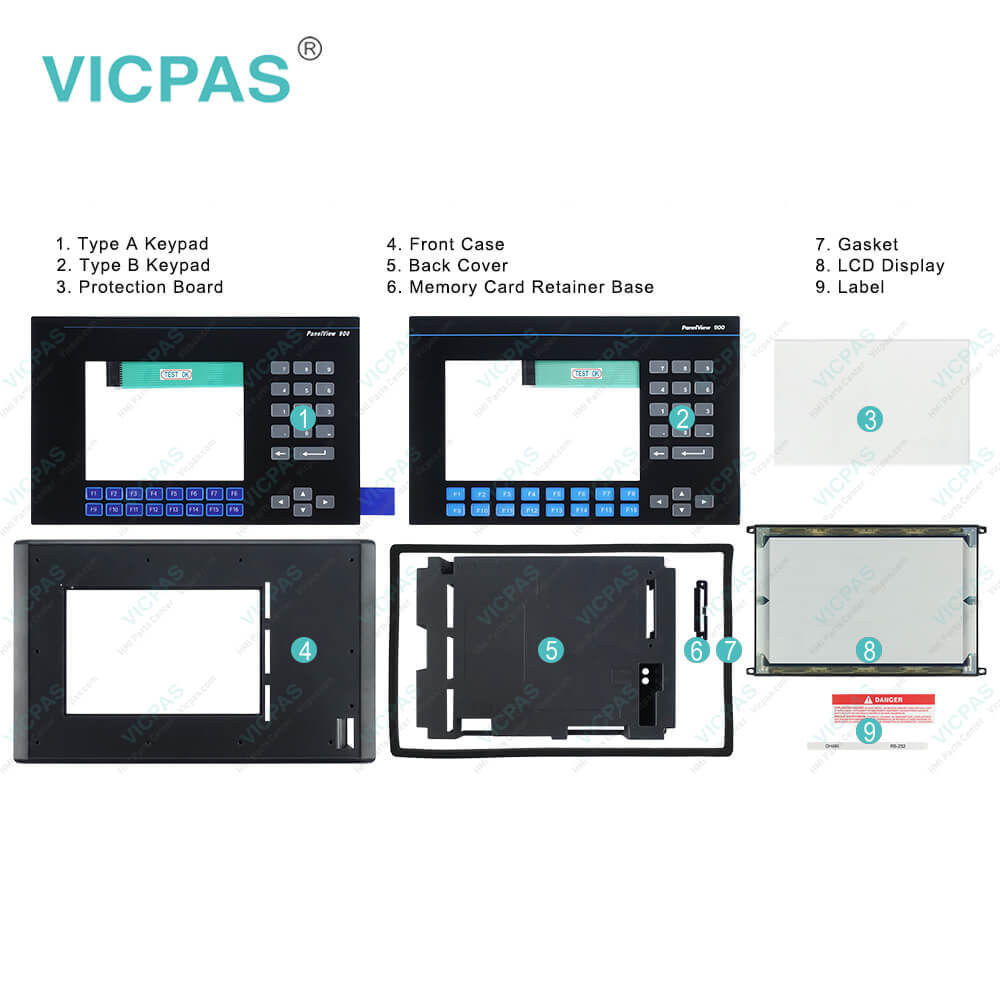

Kernfix supply Allen Bradley Panelview 900 2711-K9A15 membrane keyboard switch, Protection Board, Plastic Cover Body, LCD Screen, Memory Card Retainer Base, Gasket, Sticker for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, Protection Board, LCD Display Screen, Plastic Cover, Gasket, Memory Card Retainer Base, Sticker.
The discontinued Allen Bradley Panelview 900 2711-K9A15 is an operator terminal that enables the user to interface and connect to other device using Panelbuilder 32 software and a ControlNet and RS-232 Printer communication port with 2711-NC14 communication cables. This unit is powered using 120V AC power and it has an internal memory of 1008 KB, but it does not have a replaceable backlight. The approximate shipping weight is 8 lbs. and the dimensions are 18 x 14 x 8 in. The most common series are A, B, C, D, E, and F and the most common firmware include versions 1.00-4.48.
The ControlNet terminals can connect to a single or multiple controllers on a ControlNet network because they support scheduled and unscheduled access to controller data and redundant cabling. The ControlNet terminals support symbolic CIP addressing when communicating to a ControlLogix system. Every terminal features a Network Access port for local access to the ControlNet network. Application files are easily downloaded or uploaded using PanelBuilder32 software over the ControlNet link, directly via the onboard RS-232 printer port, or with a PC memory card.
Specifications:
| Part Number: | 2711-K9A15 |
| Product Line: | PanelView 900 |
| Screen diagonal: | 9 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Software: | Panelbuilder 32 |
| Mounting position: | vertical |
| Input Type: | Keypad |
| Communication: | Remote I/O and RS-232 Printer Port |
| Firmware: | 4.00-4.48 |
Related BB Teach Pendant Part No. :
| 2711-K9A15 | Description | Inventory status |
| 2711-K9A1 | Allen Bradley PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A10 | PanelView 900 Keypad Membrane Switch | Available Now |
| 2711-K9A12 | Allen Bradley Panel View 900 Membrane Keypad Keyboard | In Stock |
| 2711-K9A12L1 | Allen Bradley Panel View 900 Keyboard Keypad Switch | In Stock |
| 2711-K9A14L1 | PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A15 | PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A15L1 | PanelView 900 Membrane Keyboard Keypad | Available Now |
| 2711-K9A16 | Allen Bradley PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A16L1 | PanelView 900 Keypad Membrane Switch | Available Now |
| 2711-K9A1L1 | Allen Bradley Panel View 900 Membrane Keypad Keyboard | In Stock |
| 2711-K9A2 | Allen Bradley Panel View 900 Keyboard Keypad Switch | In Stock |
| 2711-K9A2L1 | PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A3 | PanelView 900 Membrane Keyboard Keypad | Available Now |
| 2711-K9A3L1 | Allen Bradley PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A5 | PanelView 900 Keypad Membrane Switch | Available Now |
| 2711-K9A5L1 | Allen Bradley Panel View 900 Membrane Keypad Keyboard | In Stock |
| 2711-K9A8 | Allen Bradley Panel View 900 Keyboard Keypad Switch | In Stock |
| 2711-K9A8L1 | PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A9 | PanelView 900 Membrane Keyboard Keypad | Available Now |
| 2711-K9A9L1 | PanelView 900 Membrane Keyboard Keypad | Available Now |
2711-K9A15 PDF Download:
FAQ:
Question: What kind of communication port does the Panelview 900 2711-K9A15 have?
Answer: The 2711-K9A15 has an RIO communication port.
Question: What are you want to know about Allen Bradley Panelview series?
Answer: The PanelView Standard operator terminals have multiple models: the 300, 550, 600, 900, 1000, and 1400. The PanelViews are Top Rated Electronic Operator Terminals engineered to suit your needs. The Panelviews have high performance flat panel designs or 14-inch CRTs. These electronic driver interfaces feature excellent graphics capabilities. They have high performance functionality in color, gray scale and monochrome displays.
Question: How long does this unit’s backlight last?
Answer: This PanelView 900 2711-K9A15 unit’s backlight has an average lifespan of 100,000 hours
Question: What type of input does the 2711-K9A15 have?
Answer: The 2711-K9A15 has a keypad as its operator input.
Question: Is the internal backlight of the display replaceable?
Answer: Yes, the 2711-K9A15 terminal has a replaceable internal backlight. The replacement part number is 2711-NL1.
Question: What is the 2711-K9A15 PanelView 900 touchscreen panel price?
Answer: Submit a fast quote, send Kernfix an email for best price.
