2711P-K4C20A

Order each part separately is available

The Allen-Bradley 2711P-K4C20A PanelView operates with a power input range of 18 to 30 Volts DC. It is recommended to mount the terminal in a vertical position and to avoid placing the terminal on the west side of the cabinet where it can receive direct sunlight since high temperatures could damage the screen and other important parts of the terminal.This terminal has a memory of 64 megabytes. The Allen-Bradley 2711P-K4C20A PanelView features a 3.5 inches color display and a keypad as an input mechanism. This input mechanism enables operators to input values and changes data in order to control the process. Through this PanelView, they can also consult and check several parts and variables of the process without the need of being in the exact same place. All the USB ports from this terminal comply with hazardous locations environments in accordance with the National Electrical Code, article 500.

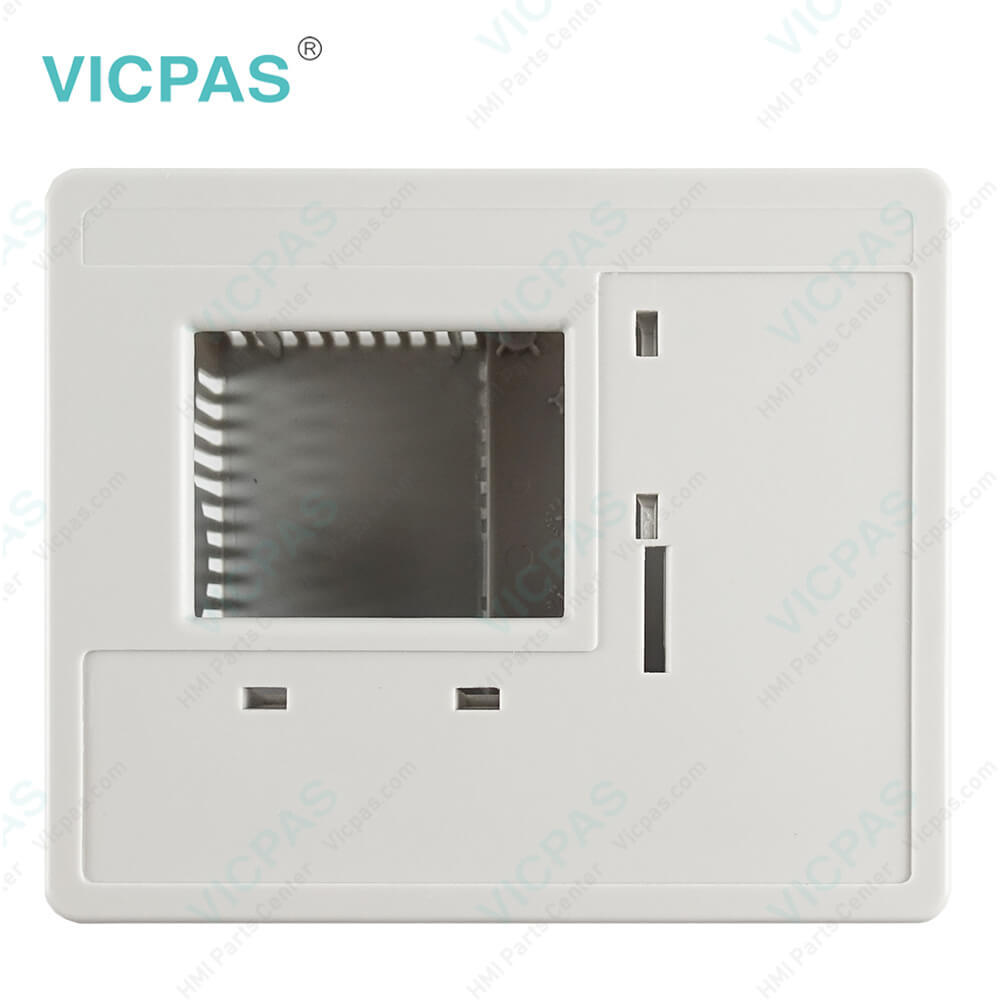

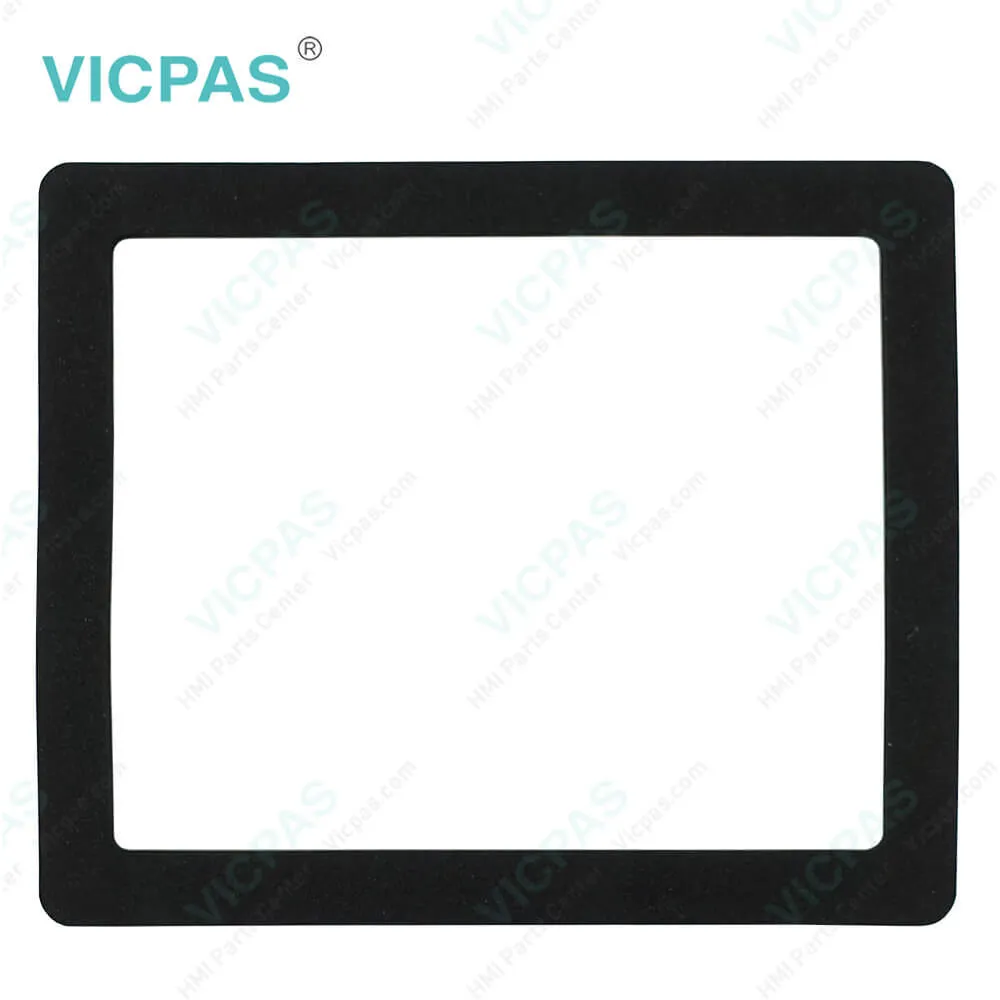

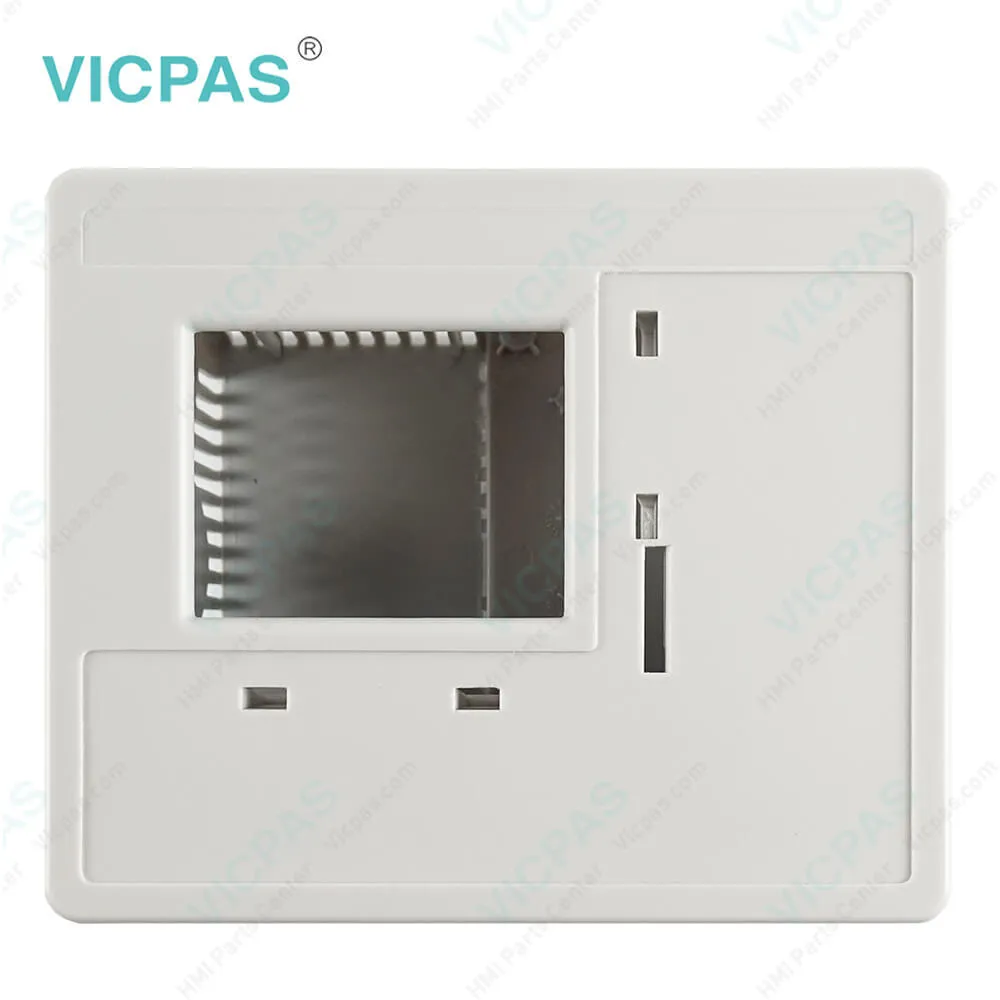

Kernfix supply Panelview Plus 400 2711P-K4C20A membrane keypad switch, Protection Board, Label, Plastic Case, LCD Display, Gasket, Mounting Levers, Sticker for repair replacement, make the HMI running. We provide a 365 days Kernfix warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.

The 2711P-K4C20A is a PanelView manufactured and designed by Allen-Bradley. This PanelView belongs to the PanelView 400 series, which provides full-color displays with multiple input and communication options. This PanelView has been designed to operate in hazardous locations.

This PanelView is intended for hazardous locations, it can withstand a maximum temperature of 55 degrees Celsius. It is recommended that the terminal is not installed in environments where atmospheric gases could have ignition at a temperature of 135 degrees Celsius. When it comes to communications, the Allen-Bradley 2711P-K4C20A PanelView provides Ethernet, RS-232 & USB plus communication module interface. Through USB connection users can attach other devices such as a mouse, printer, keyboard, barcode reader, among others.
