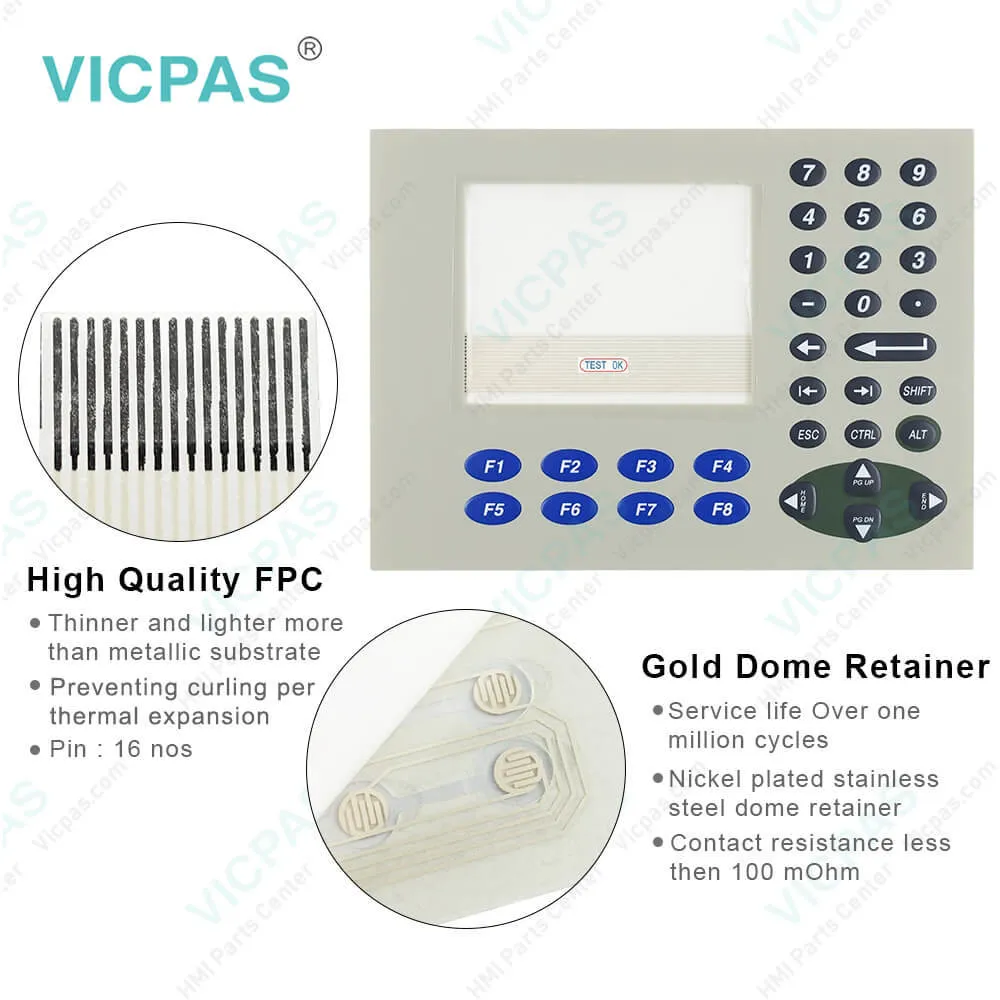

2711P-K4M20A PanelView Plus 400 Membrane Keyboard Keypad

Order each part separately is available

The Allen-Bradley 2711P-K4M20A is a PanelView Plus 400 monochrome terminal. It has a grayscale passive matrix FSTN screen with a 320 x 240 resolution and 32-level grayscale graphics. Its display size is 3.8 inches and its display area is 3.07 x 2.32 inches. The screen also comes with a non-replaceable LED backlight. The 2711P-K4M20A terminal makes use of a poly-domed membrane keypad input that consists of numeric keys, navigation keys, and 8 user-configurable function keys that users can operate using gloved or ungloved fingers. This terminal also comes with a battery-backed clock that timestamps critical data and has an accuracy of +/-2 minutes per month.

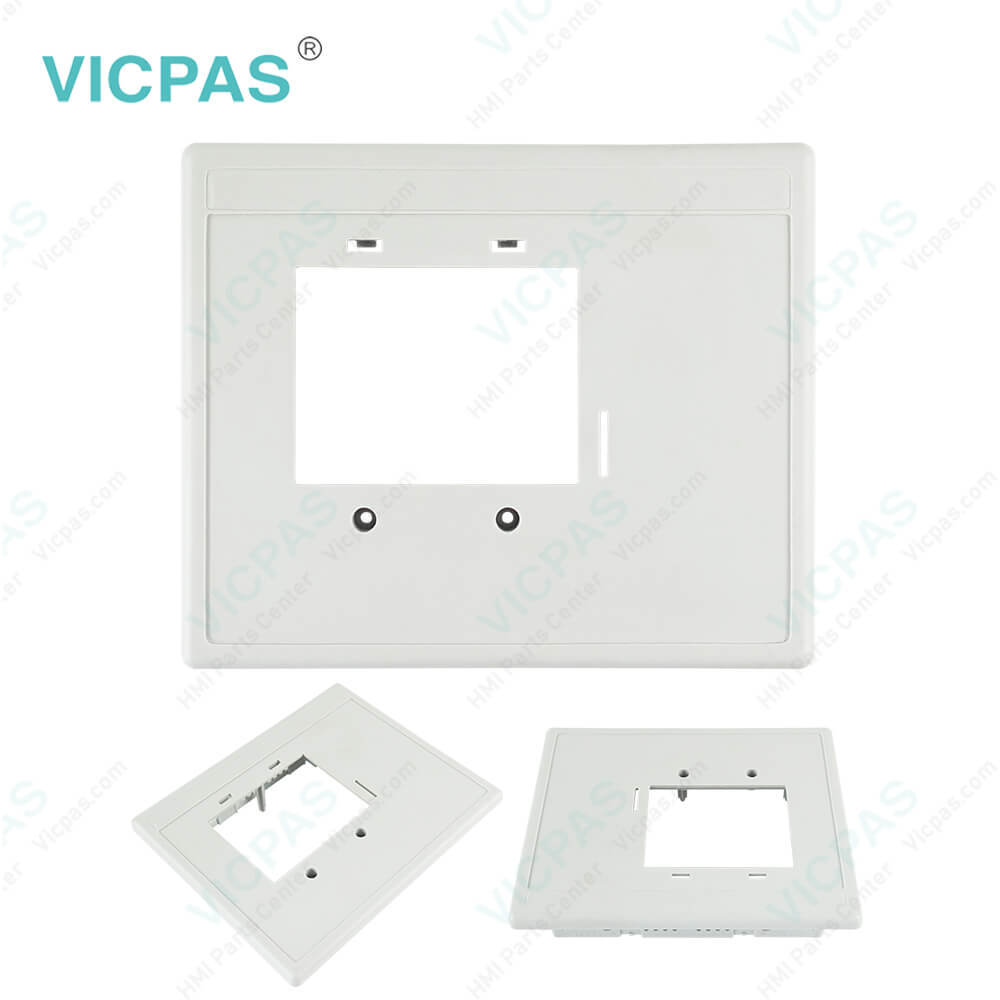

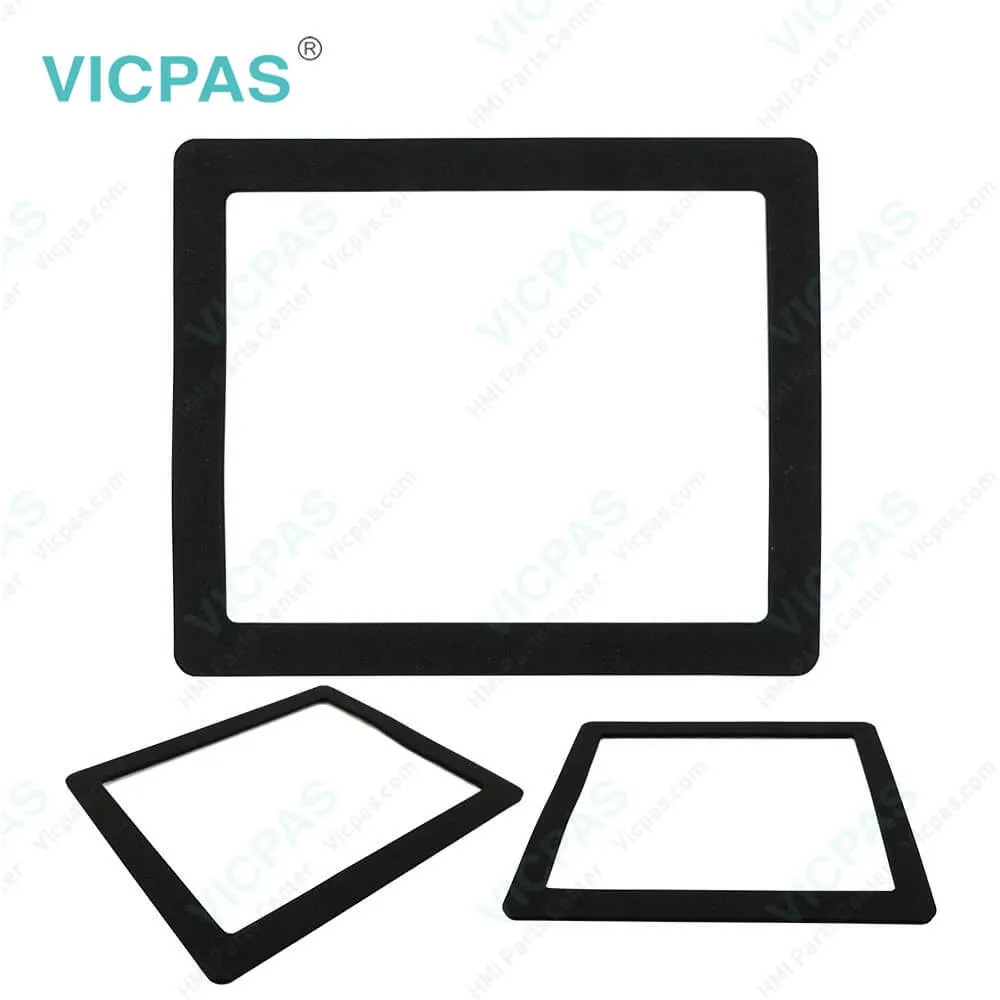

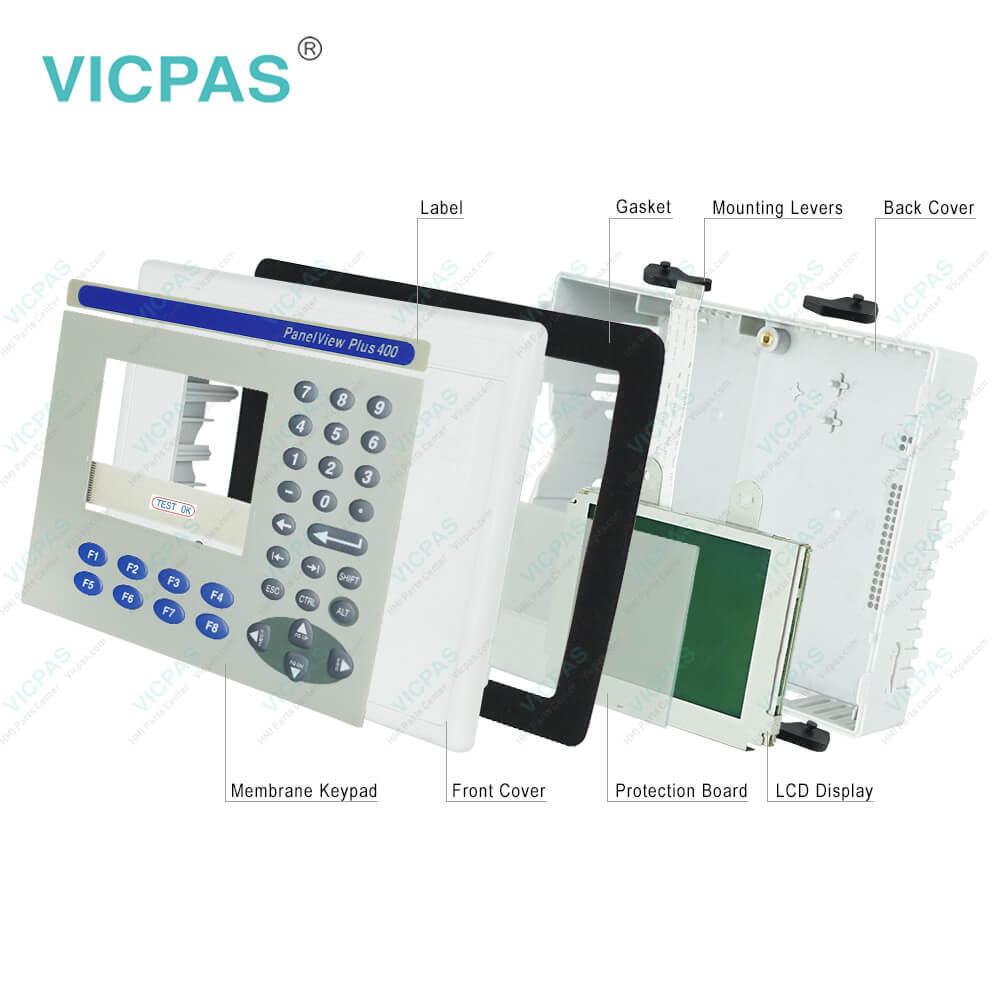

Kernfix supply Panelview Plus 400 2711P-K4M20A membrane keypad switch lcd display panel plastic case cover Label Sticker Protection Board Mounting Levers Gasket for repair replacement, make the HMI running. We provide a 365 days Kernfix warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.

It comes with a 64-MB RAM and 64-MB non-volatile flash memory, with 20 MB allotted for application storage. Communication ports available with the 2711P-K4M20A terminal are an RS-232 port that supports DF1 and DH485 protocols, an EtherNet port, and a USB port. FactoryTalk View Machine Edition software comes preinstalled with this terminal and it is compatible with Microsoft Windows CE. It also ships with a firmware that ranges from versions 3.20 to 5.10. The entire terminal measures 6 x 7.28 x 3.54 inches and weighs approximately 1.24 pounds. This terminal has an AC input voltage range of 85 to 264 Volts AC at 47 to 63 Hertz. Its maximum AC power consumption of 60 VA and its non-condensing relative humidity is 5 to 95%. Its operating shock is 15 g at 11 milliseconds while its non-operating shock is 30 g at 11 milliseconds. The 2711P-K4M20A’s operating temperature is 32 to 131 degrees Fahrenheit and its non-operating temperature is -13 to 158 degrees Fahrenheit.
