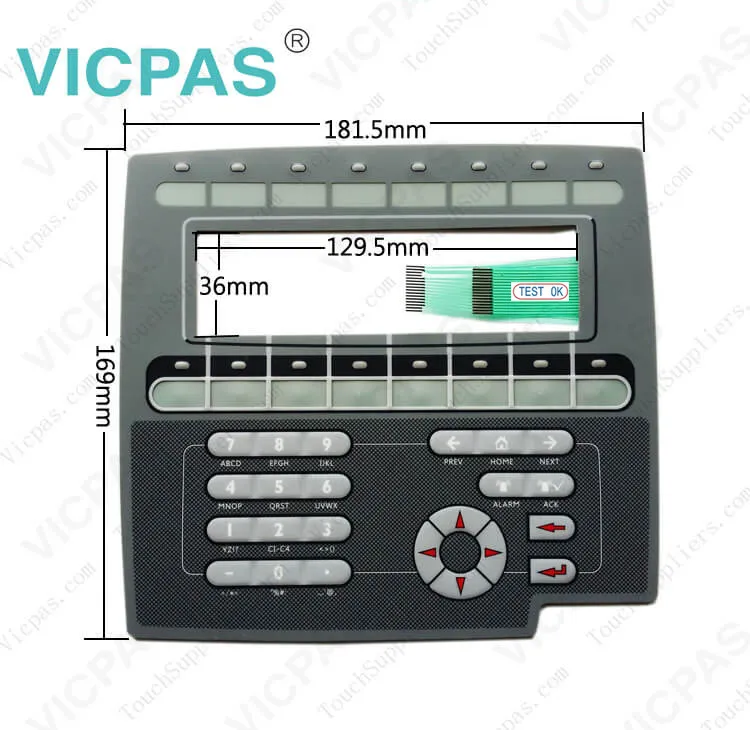

Beijer HMI Membrane Switch E1032 603221103 Replacement
| Brand | BEIJER |
|---|---|
| Model | Beijer E1032 |
| Warranty | 180 days |
| Product Line | E1000 Operator Panel |
| Supply | Beijer E1012 Membrane Keyboard |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union |
| Download | |
| Update Time | 2026-01-31 00:41:52 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
E1032 603221103 Beijer E1000 Series Membrane Keyboard Repair Replacement
Beijer E1032 603221103 240 x 64 pixel monochrome keypad HMI Repair kit
The E1032 603221103 features:
•240 x 64 pixels
•FSTN display
•240 x 64 pixels
•Project storage 12 MB
•Operating temperature 0 to +50 °C
•Ethernet and serial
•8 keys / 16 LEDs
The E1000 operator panel is developed to satisfy the demands ofhuman-machine communication. Built-in functions such as displaying and controllingtext, dynamic indication, time channels, alarm and recipe handling are included.The operator panel work, for the most part, in an object-oriented way, making it easyto understand and use. The configuration operation of the panel is made in a personalcomputer, using the configuration tool E-Designer. The project is then transferredand stored in the operator panel.
Kernfix supply Beijer Exter E1032 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
| Brand: | Beijer |
| Numerical keypad: | YES |
| Input fuse: | Internal DC fuse |
| Warranty: | 6-Months Warranty |
| Product Line: | Beijer E1032 |
| Size diagonal: | 240 x 64 pixels |
| Part Number: | 603221103 |
| Housing material: | Powder-coated aluminium, grey |
| Input voltage: | 20 - 30 V DC |
| Display type: | Monochrome FSTN |
Beijer HMI Membrane Switch E1032 603221103 Replacement PDF Download:
FAQ:
Question: How to install the Beijer E1032 Operator Panel?
Answer: 1. Unpack and check the delivery. If damage is found, notify the supplier. 2.Place the panel cut out where the operator panel is to be situated, draw along theouter sides of the holes and cut according to the markings.3.Secure the operator panel in position, using all the fastening holes and theprovided brackets and screws:4.Connect the cables in the specified order.5.Carefully remove the laminated film over the operator panel display, to avoidstatic electricity that could damage the panel.
Question: Why are Beijer 603221103 membrnae keypad with the chemical resisitace?
Answer: Beacuse Autotex F157 covers the membrane keyboard.
Question: What is E1032 603221103 Beijer E1000 Series Operator Panel mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
03221103
63221103
60221103
60321103
60322103
