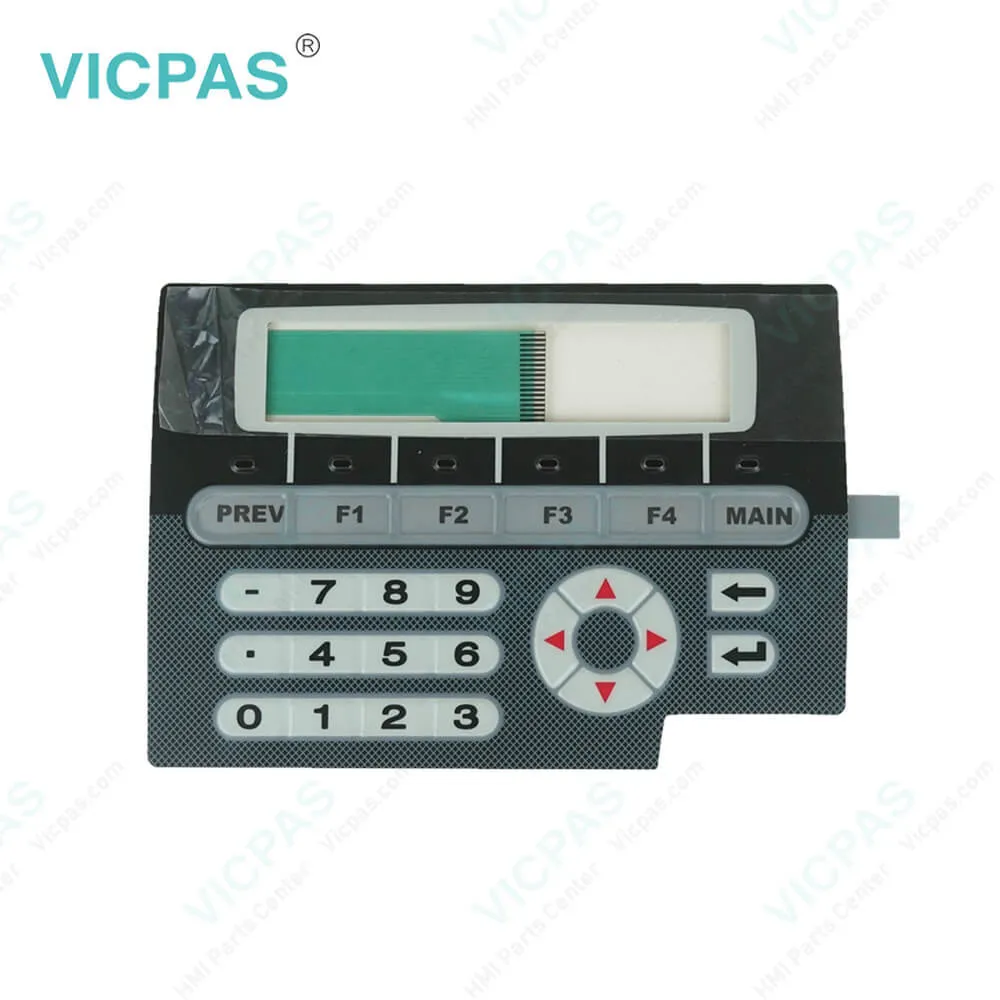

Beijer E1012 603111201 Monochrome Membrane Keypad
| Brand | BEIJER |
|---|---|
| Model | Beijer E1012 |
| Warranty | 180 days |
| Product Line | E1000 Operator Panel |
| Supply | Beijer E1012 Membrane Switch |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union |
| Download | |
| Update Time | 2026-01-31 00:41:58 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
E1012 603111201 Beijer E1000 Series Membrane Keyboard Repair Replacement
Beijer E1012 603111201 160 x 32 pixel monochrome keypad HMI Repair kit
The E1012 603111201 features:
•160 x 32 pixels
•FSTN display
•160 x 32 pixels
•Project storage 512KB
•Operating temperature 0 to +50 °C•Serial, Enet w/Exp module•6 keys / 6 LEDs
Beijer E1012 HMI equipment is suitable for use in Class I, Division 2, Groups A, B, C and DOR non-hazardous locations only. [Combinations of equipment in your systemare subject to investigation by the local Authority Having Jurisdiction at the timeof installation. Maximum ambient temperature 40 °C when mounted horizontal or 50 °C whenmounted vertical.– WARNING – EXPLOSION HAZARD – Do not disconnect equipment unlesspower has been removed or the area is known to be non-hazardous
Kernfix supply Beijer Exter E1012 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
| Brand: | Beijer |
| Numerical keypad: | YES |
| Input fuse: | Internal DC fuse |
| Warranty: | 6-Months Warranty |
| Product Line: | Beijer E1012 |
| Size diagonal: | 160 x 32 pixels |
| Part Number: | 603111201 |
| Housing material: | Powder-coated aluminium, grey |
| Input voltage: | 20 - 30 V DC |
| Display type: | Monochrome FSTN |
Beijer E1012 603111201 Monochrome Membrane Keypad PDF Download:
FAQ:
Question: How to install the Beijer E1012 Operator Panel?
Answer: 1. Unpack and check the delivery. If damage is found, notify the supplier. 2.Place the panel cut out where the operator panel is to be situated, draw along theouter sides of the holes and cut according to the markings.3.Secure the operator panel in position, using all the fastening holes and theprovided brackets and screws:4.Connect the cables in the specified order.5.Carefully remove the laminated film over the operator panel display, to avoidstatic electricity that could damage the panel.
Question: Why are Beijer 603111201 membrnae keypad with the chemical resisitace?
Answer: Beacuse Autotex F157 covers the membrane keyboard.
Question: What is E1012 603111201 Beijer E1000 Series Operator Panel mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
03111201
63111201
60111201
60311201
