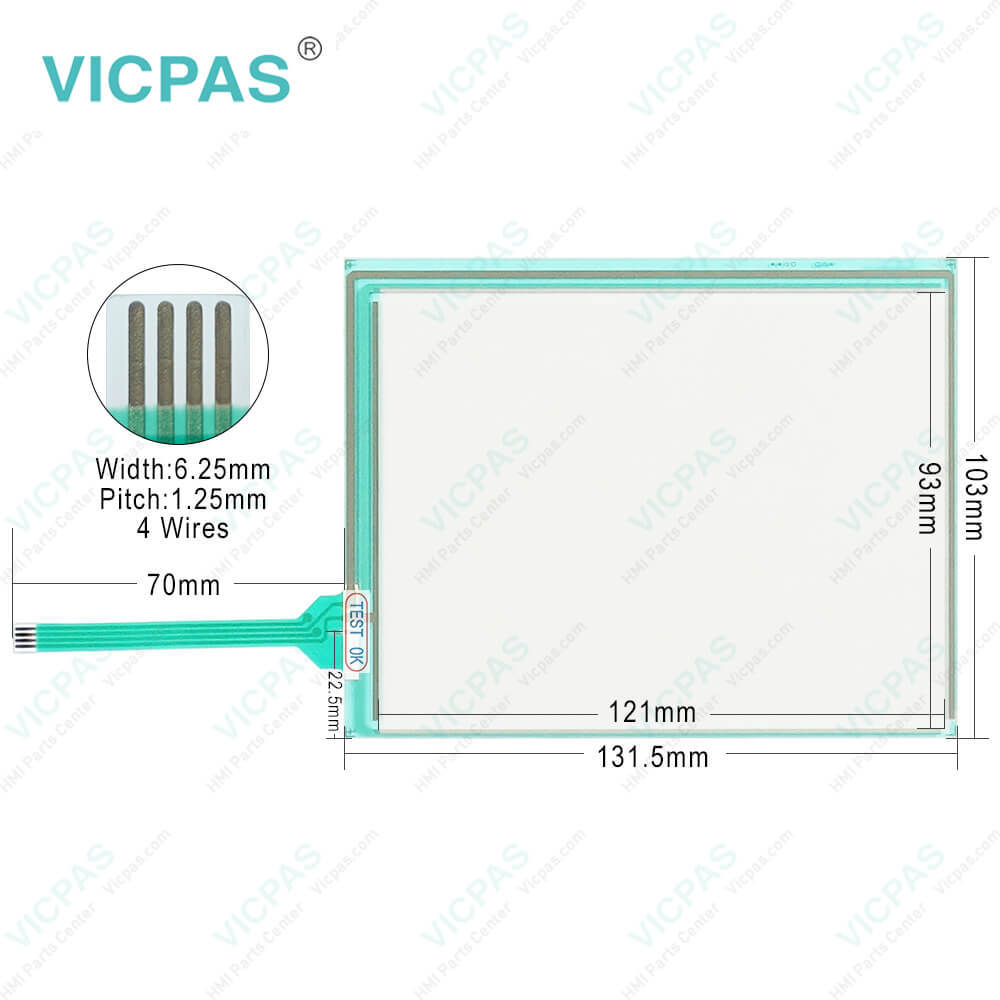

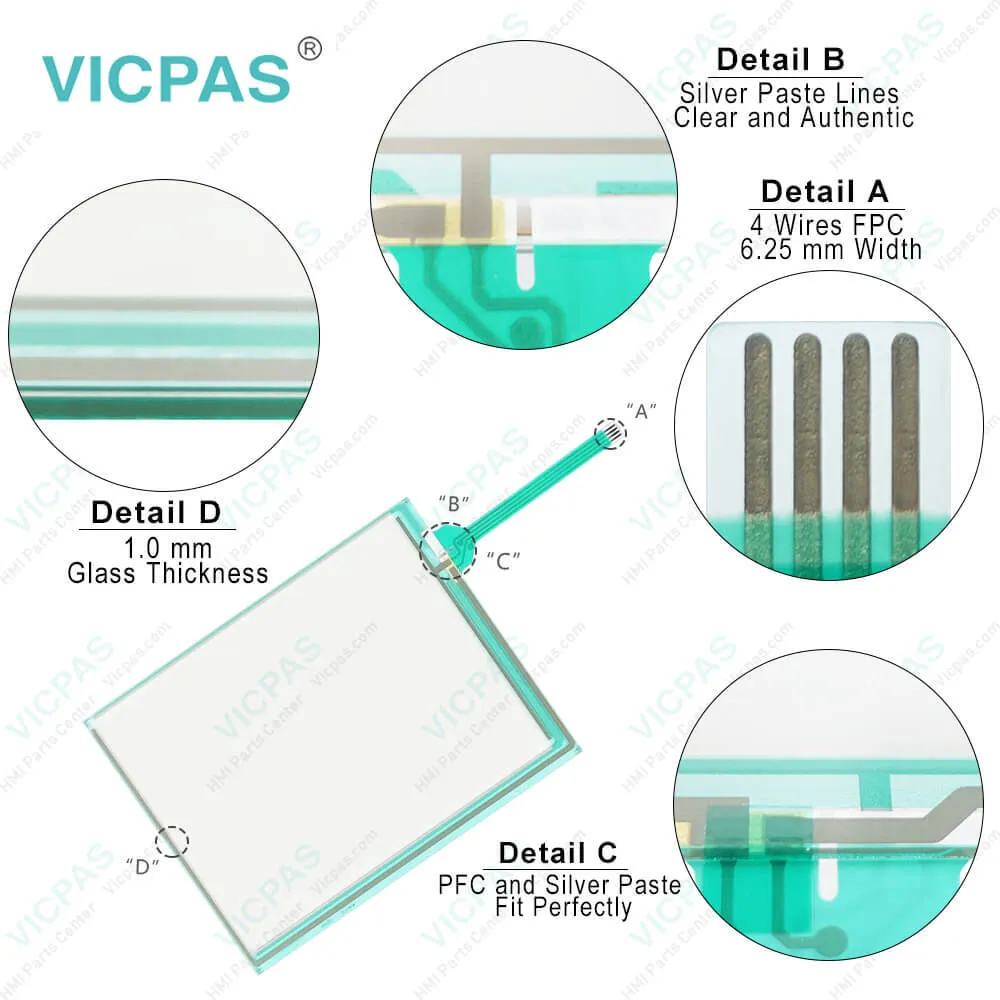

Koyo EA3 EA3-T6CL Touch Screen Front Overlay Replacement

Koyo EA3-T6CL Protective Film Touch Screen Terminal Features
• Touch screen display
• Free downloadable programming software
• 320 x 240 pixel display with up to 40 lines by 80 characters of text and graphics in landscape mode
• Up to 40 characters of dynamic text with embedded variables and phrases mixed with graphics
• Five programmable function keys can change with every screen. Can increment / decrement values, trigger recipes, view index of screens.
• 32K colors
• Optional replaceable clear screen overlay
• 6MB memory
• Supports Ethernet expansion module (EA-ECOM)
• Built-in USB type B programming port
• Built-in 15-pin serial communications port
• Built-in RJ12 serial communications port
• Built-in Alarm Control setup that activates beep, backlight flash, customized alarm banner, and red LED blinking
• 0 to 50 °C (32 to 122 °F) operating temperature range (IEC 60068-2-14)
• NEMA 4/4X, IP65 compliant when mounted correctly, indoor use only
• UL, cUL & CE agency approvals

C-more Micro 6-inch TFT EA3-T6CL EA3 Touch Panel
The EA3-T6CL Touch Digitizer Glass Protective Film C-more 6-inch Micro touch panel has a 5.7-inch TFT LCD 320 x 240 pixel display and a palette of 32K colors for customizing objects, screen backgrounds and displaying bitmap graphics. It features five user-defined function keys, each key with a user-defined red LED indicator. The EA3-T6CL Front Overlay HMI Panel Glass C-more 6-inch Micro TFT panels are powered from a Class 2, 12-24 VDC power supply. The panel is NEMA 4/4X indoor when installed correctly.
