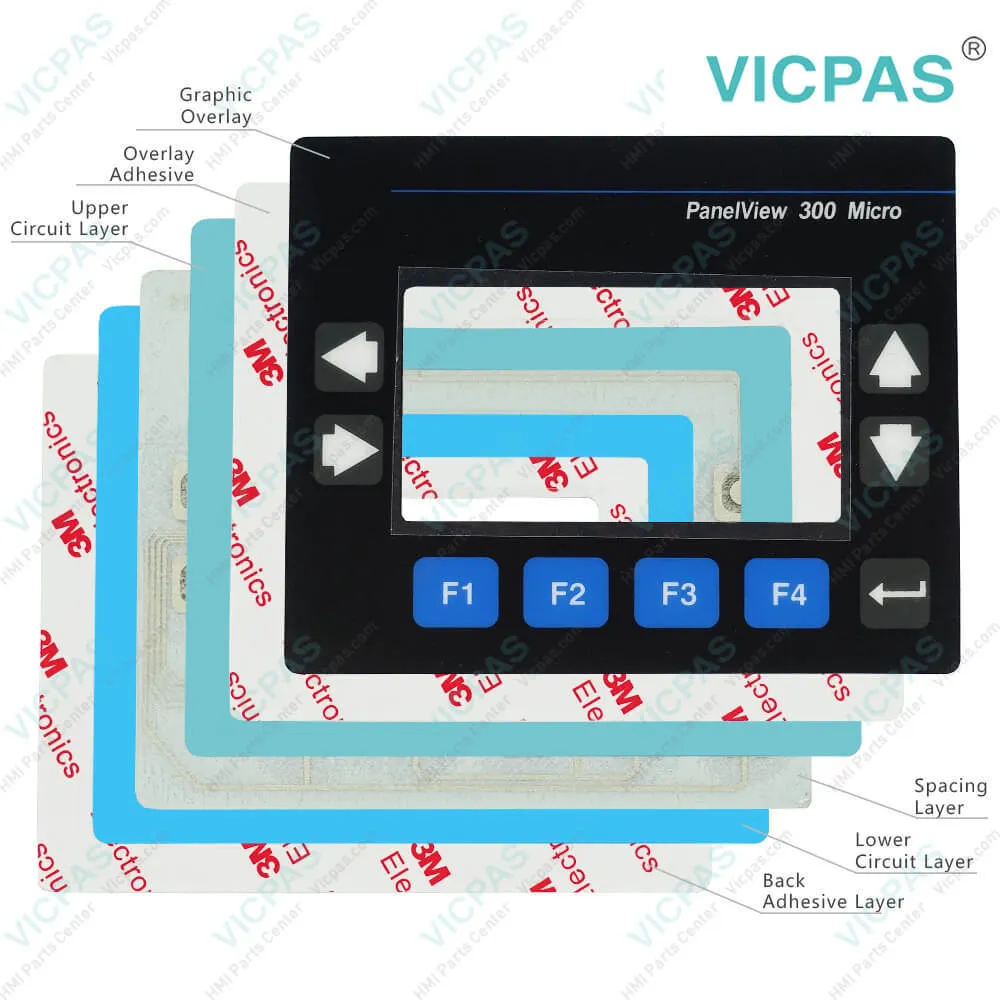

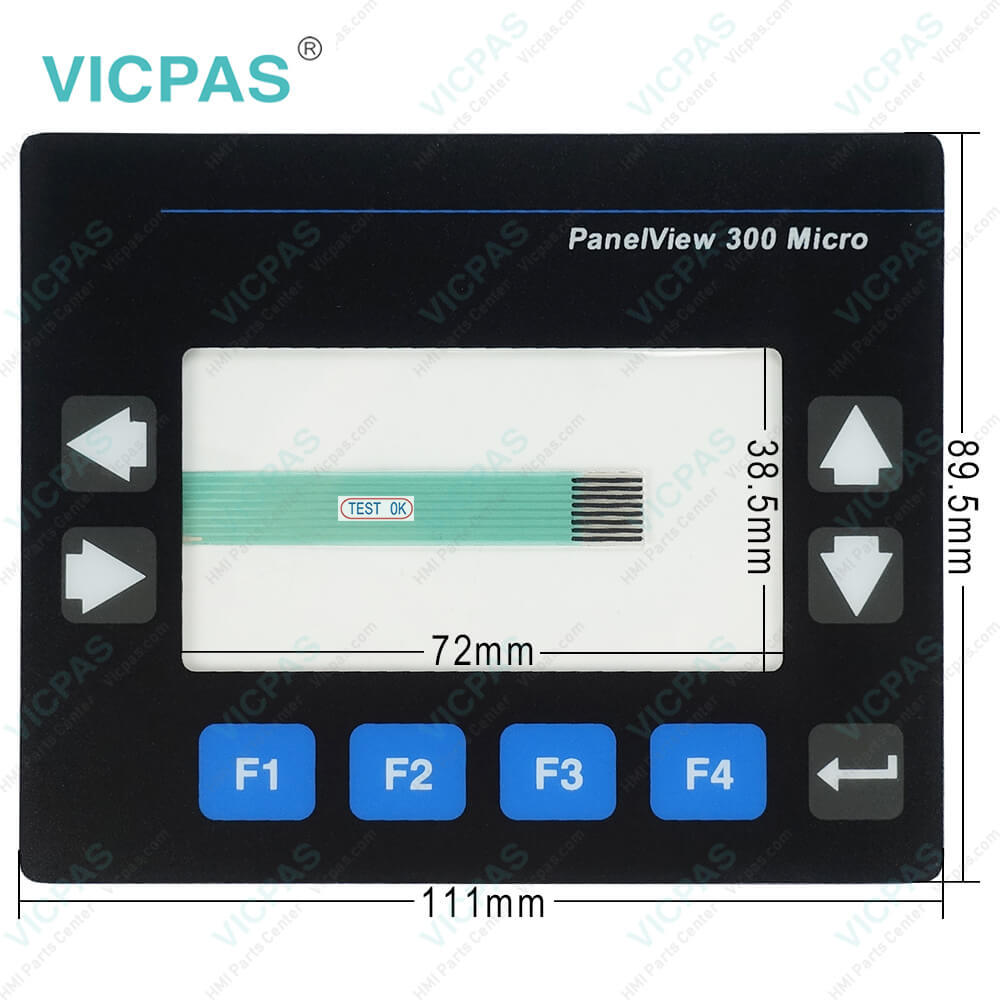

2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad

Order each part separately is available

The 2711-M3A18L1 is a discontinuedAllen-Bradley PanelView Standard 300 Micro Terminal. Itis an electronic operator interface solutionthat provides functionality based on color, grayscale, or monochrome display and has pixel graphics capabilities. The PanelView Standard 300 is available in severalsizes and configurationsto meetapplication requirements. All these variationsimprove operator productivity and simplify programming.

The 2711-M3A18L1 PanelView Standard 300 Micro comes with an operator input keypad with four function keys and an LCD monochrome color displaythat has an LED backlight with a standby life of 100,000 hours. Its display dimensionis73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64.

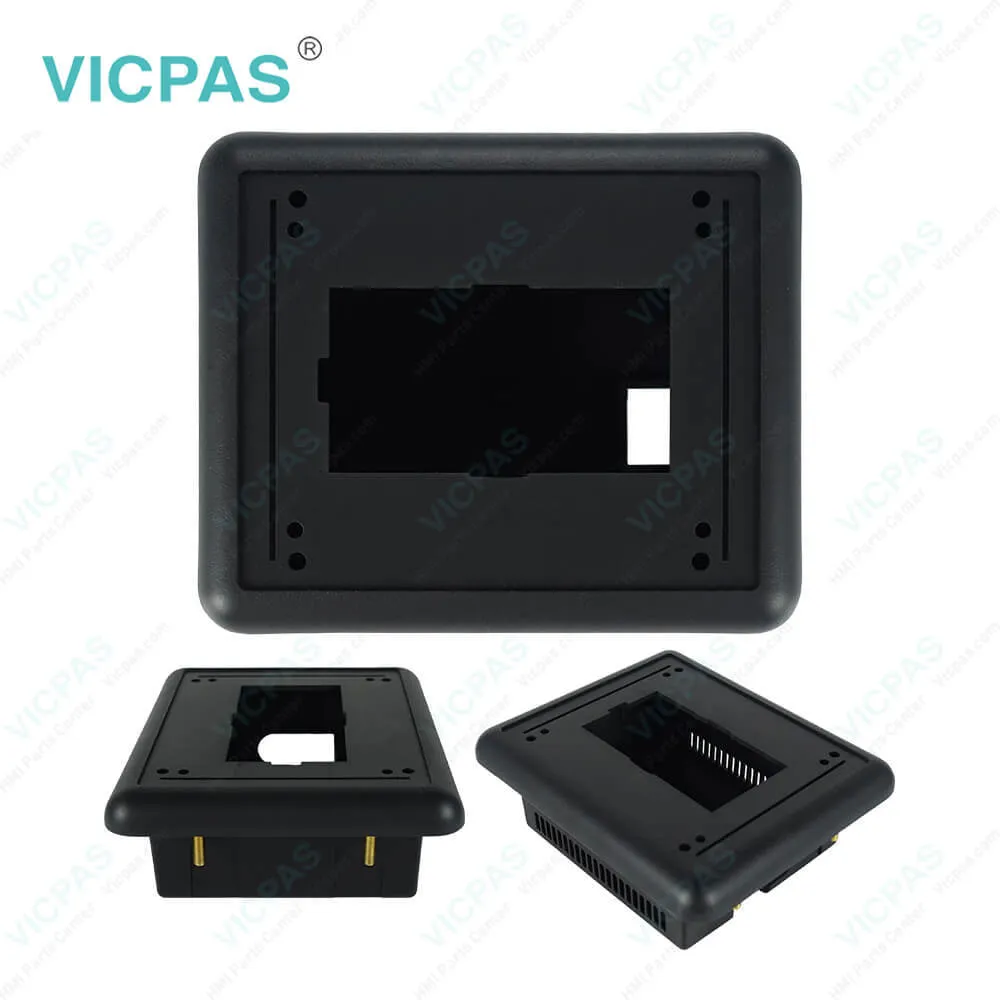

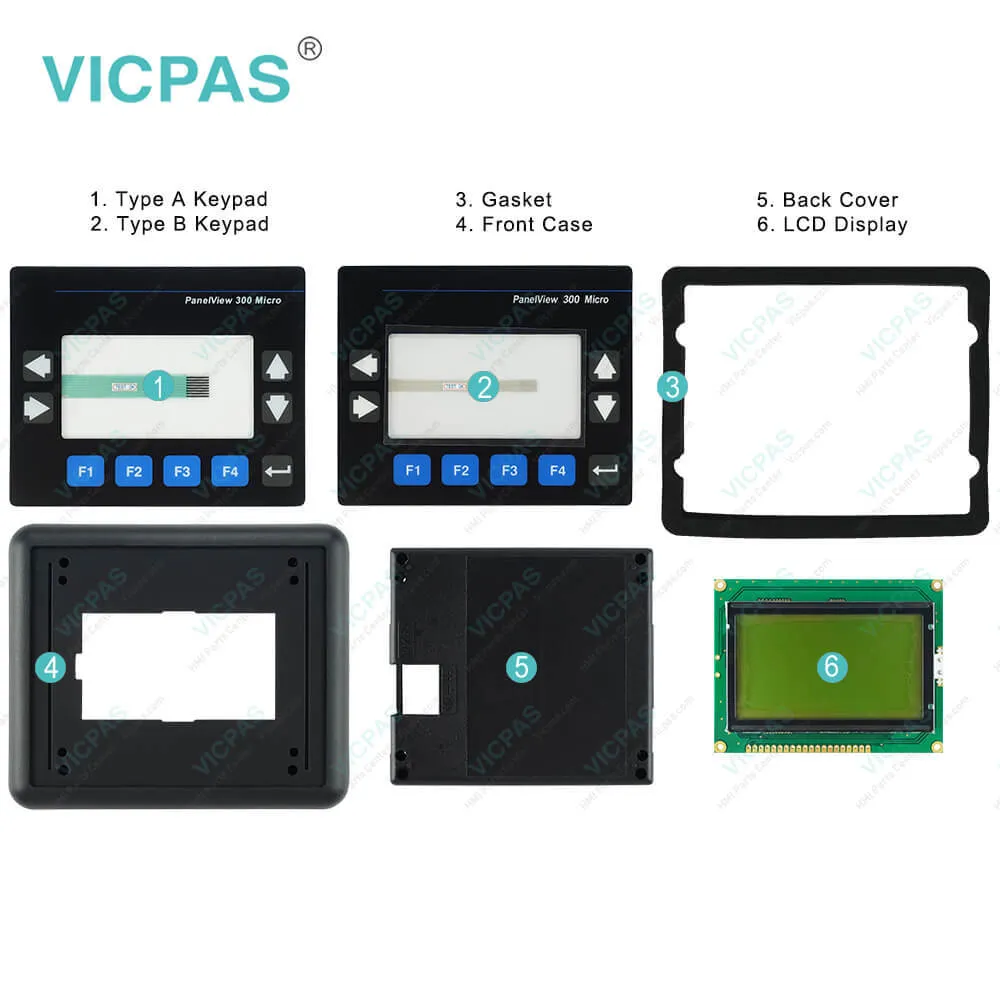

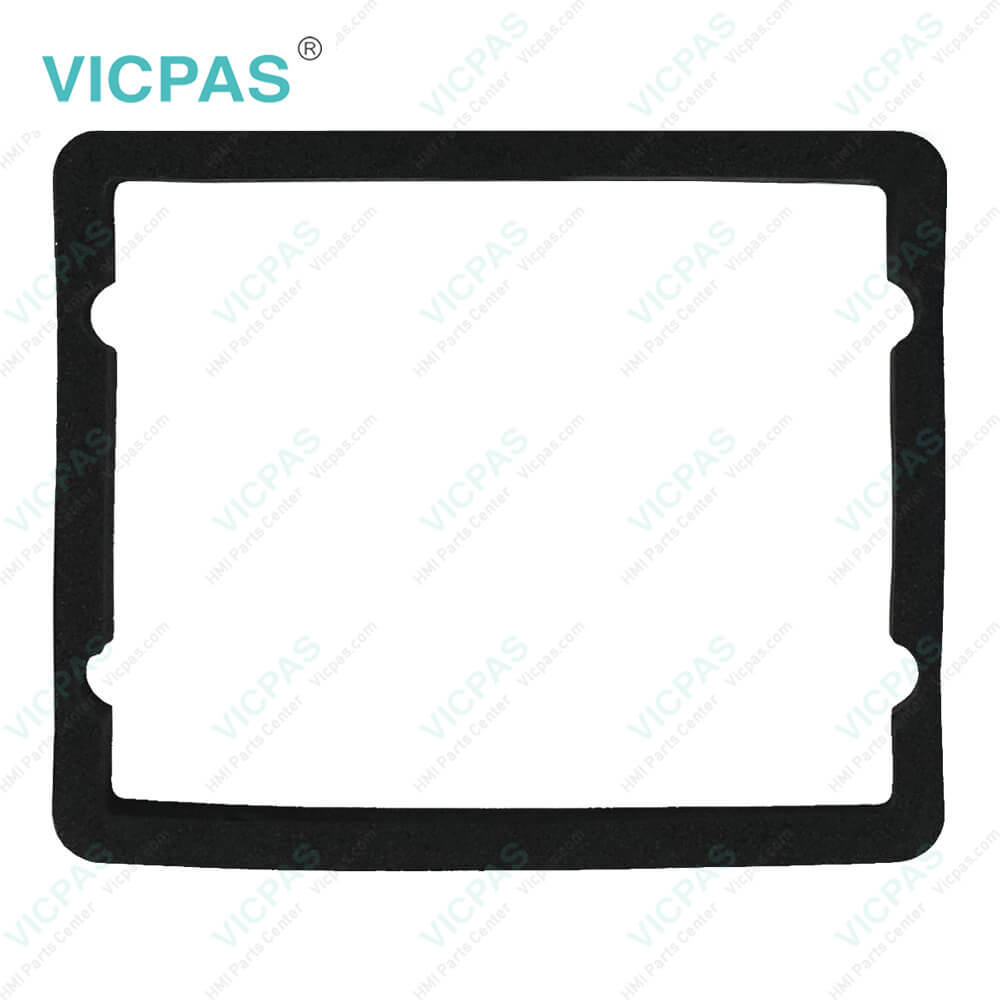

Kernfix supply 2711-M3A18L1 Panelview 300 membrane keypad switch, Plastic Shell, LCD Display, Gasket. All of them with Kernfix 180 days warranty and support Urgent Worldwide Shipping.
The 2711-M3A18L1 PanelView Standard 300 Micro comes with an irreplaceable battery and a runtime application memory of 170 KB that runs on PanelBuilder32 software. It has an RS-232 (DF1) communication port. The 2711-M3A18L1 PanelViews input voltage is between 11 to 30 Volts DC (24 Volts DC nominal), with a power consumption of 25 Watts max (0.105 amps at 24 Volts DC).

The approximate weight of the 2711-M3A18L1 PanelView Standard 300 Micro is 284 grams (10 ounces), and it has a dimension of 133 x 111 x 48 millimeters (5.23 x 4.38 x 1.87 inches) (length, breadth, and height). The 2711-M3A18L1 PanelView Standard 300 Micro has an operating temperature between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), a storage temperature between -20 and 85 degrees Celsius(-4 and 185 degrees Fahrenheit) and a working relative humidity range from 5-95% noncondensing at 0 to 55 degrees Celsius(32 to 131 F) working temperature. It has a Shock rating of 30 g and operational vibration of 2 g.
