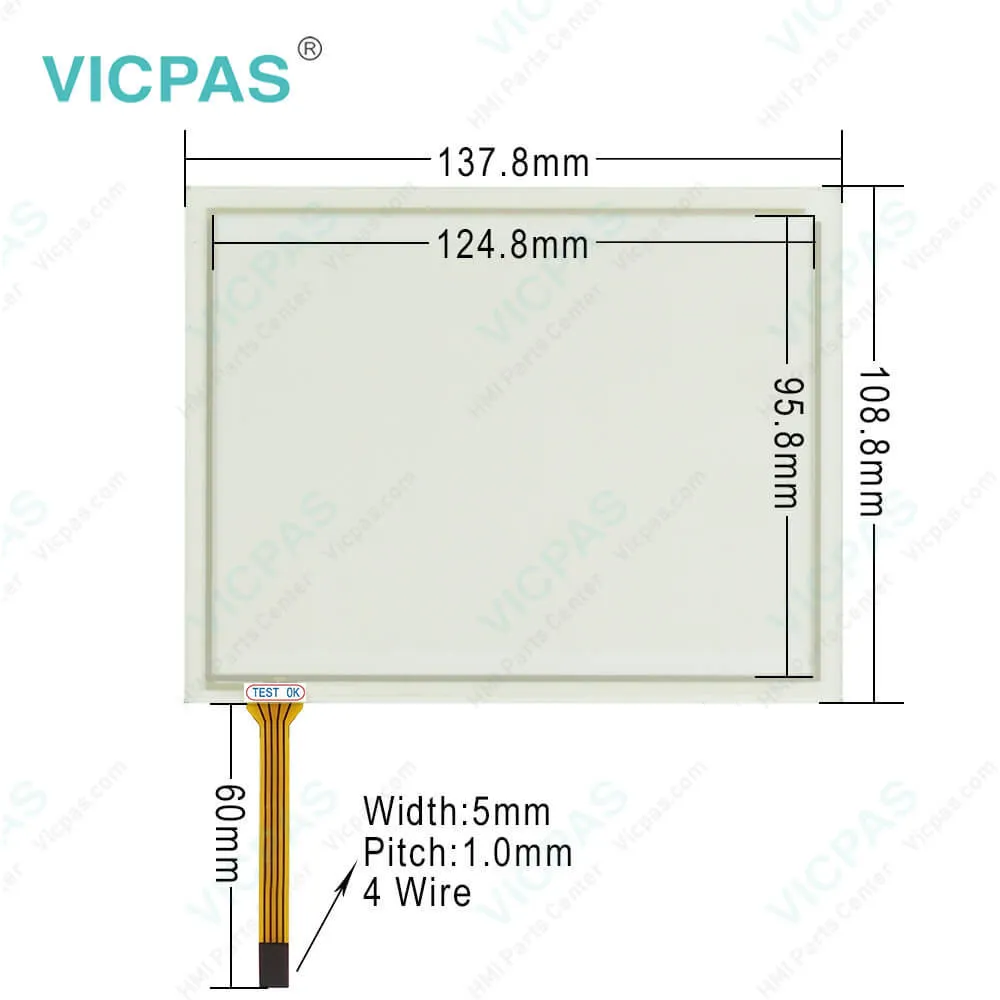

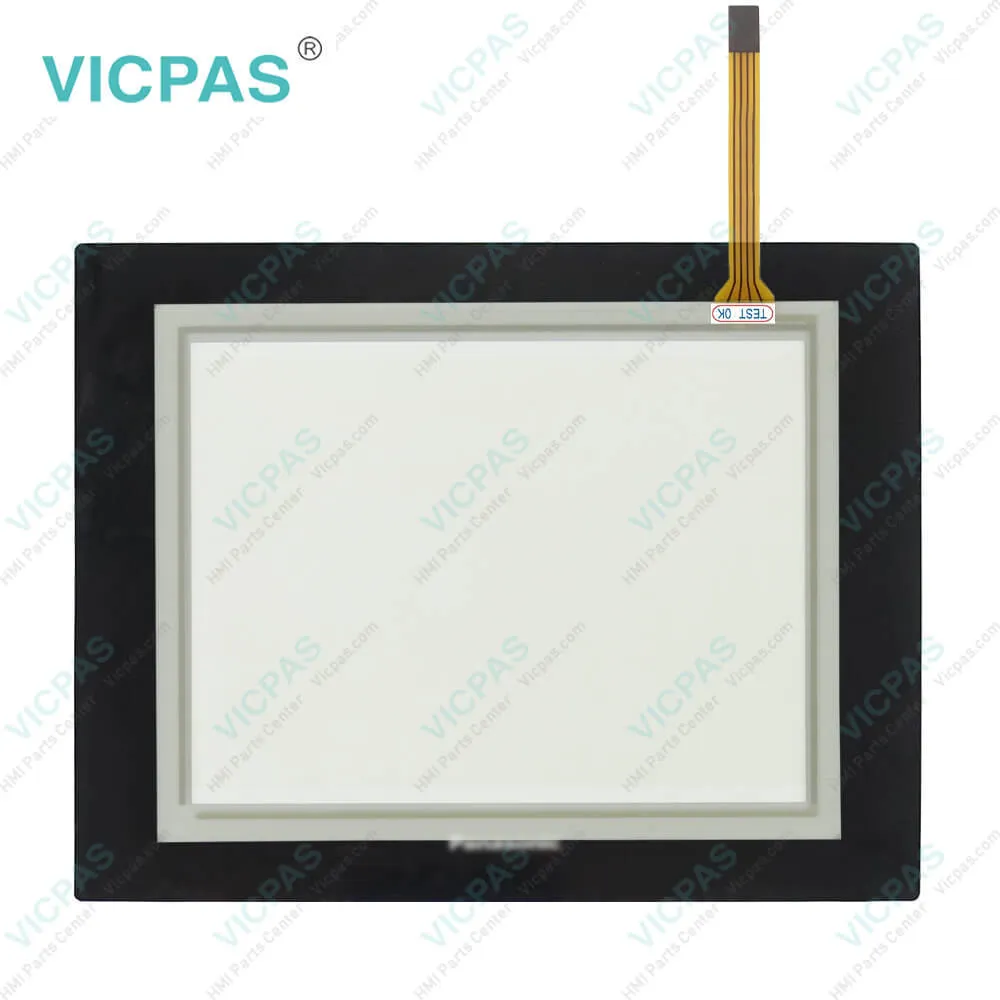

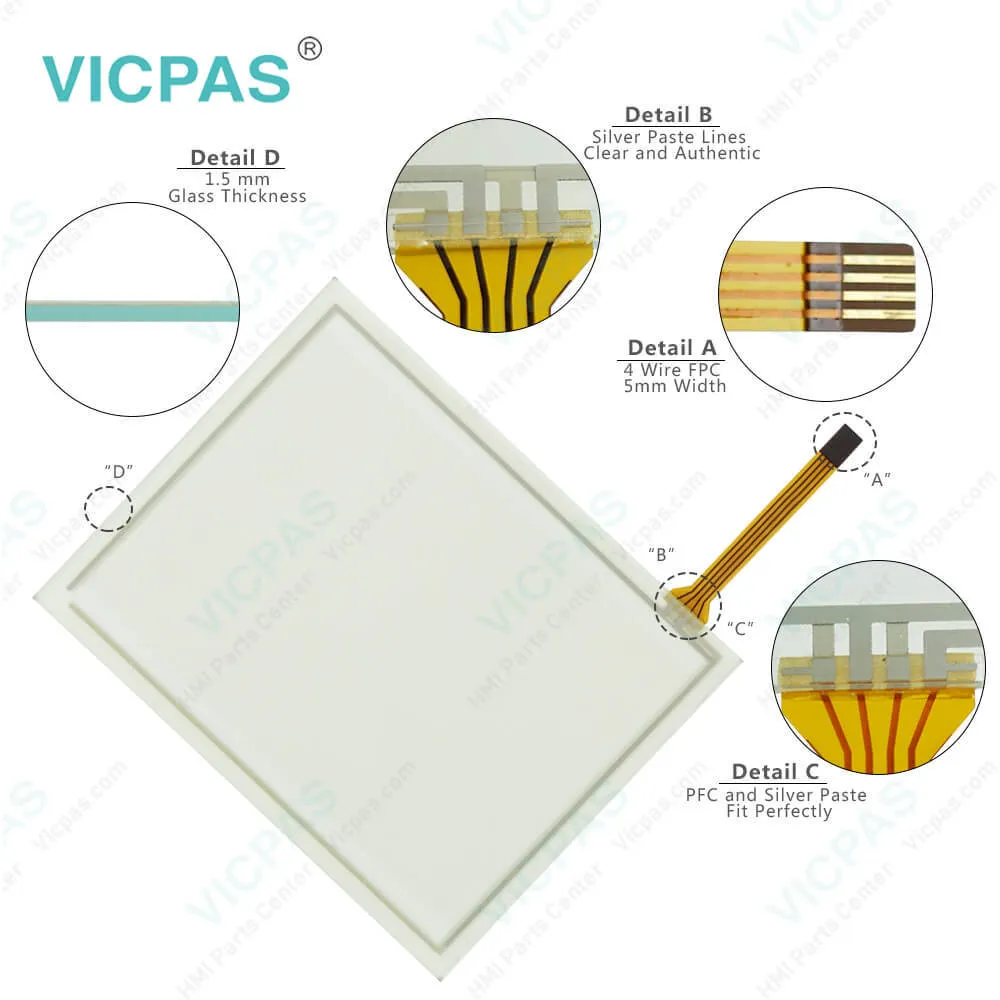

Panasonic GT32 AIG32TQ05D HMI Panel Glass Overlay

Order each part separately is available

Features and Functions of Panasonic GT Series
Analog touch panel provided
As an analog touch panel is provided, AIG32TQ05D Protective Film Touch Screen Panel Glass allows maximum flexibility in the switch layout and size.
Screens can be created easily, using a special screen creation tool Terminal GTWIN.
AIG32TQ05D Touch Screen contents can be easily created using the dedicated Terminal GTWIN tool. AIG32TQ05D Screens are put together simply by selecting parts from libraries and positioning them in place. Various parts for numerous applications are provided such as 256-color 3D parts.
Screen data of the other models can be used with the model conversion function.
Panasonic GT32 GT32T0 AIG32TQ05D Front Overlay Touch Screen Panel Glass data can be converted from the low-resolution model to the high-resolution model, e.g. from GT01 to GT11, from GT21 to GT32.
The communication methods support RS232C/RS422 (RS485)
The communication methods to PLCs support RS232C/RS422(RS485). Also, it can be connected to PLCs manufactured by other companies.
Can be installed in a small space.
As the Panasonic GT series is a small and thin-shaped body, it can be installed in a small space. Also, as the projecting part from a wall surface is 4 mm, it looks neat after installation. The GT01, GT02, GT02L, GT11, GT12 and GT21 can be installed in vertical orientation.
Monochrome 8-gradation (GT12)/16-gradation (GT32M-E) display function is available.
The monochrome 8-gradation and 16-gradation displays can be selected as well as the existing monochrome 2-gradation display so that the screen can be displayed finely.
Easily shows a current state changing the backlight on the monochrome type.
For the monochrome type (3-color LED backlight type), changing in the backlight color makes it easy to grasp a current state at a glance. "Green, orange, red" type and "White, red, pink" type is available for the 3-color LED backlight type.
Structure adapted to surrounding environments
IP65. It has a dust-proof, waterproof and drop-proof structure. (IP67 for GT02, GT12 and GT32-E)
High-intensity LED provided (LED backlight type)
As the high-intensity LED is provided, the AIG32TQ05D Protective Film Touch screen panel is bright, and the backlight does not need to be replaced.
