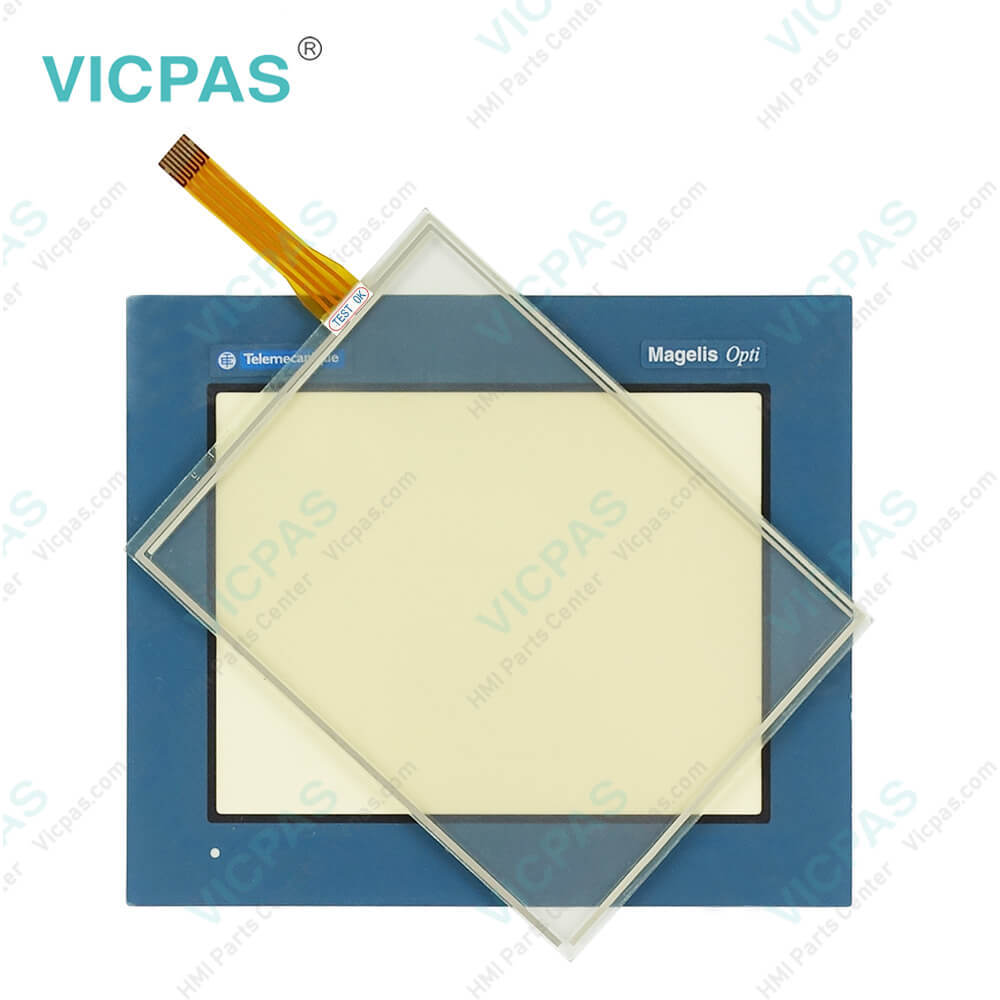

Schneider Electric Telemecanique XBTGT2330 Touch Screen Panel
| Model | Schneider XBTGT2330 XBT-GT2330 |
|---|---|
| Warranty | 1 Year VICPAS Warranty |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-04 03:08:22 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Schneider Electric Telemecanique XBTGT2330 Touch Screen Panel repair replacement
Order each part separately is available
The XBTGT2330 touch screen panel is a Schneider Magelis XBTGT 5.7" HMI that make use of an Analogue resistive touch panel. Its dimensions are 132.2 mm long and 88.4 mm wide and the length of the cable is 55mm. Users can input and set the machines parameters through the 65536 colours trans-missive, thin-film transistor colour active matrix, 5.7-inch LCD display screen with a display dimension of 6.6in x 5.32in and a touch sensitive zone of 1024x1024 pixel.
The HMI Magelis XBTGT2330 has an analogue resistive surface touch and a LED backlight with a standby time of up to 50,000 hours. It has a battery-backed real-time clock with a battery lifespan of 6 years when used at a temperature below 80 F. It also has a factory-built internal cache memory of 512 MB for storing the user settings and application parameters.
This Schneider electric Magelis XBTGT is powered using 24 VDC power. The most common series is Series A. The Magelis HMI XBTGT product line contains a group of panel-mount display units that have both keypad or touch-screen offering for the user input method. These HMI terminals are available in 3.8-inch, 5.7-inch, 7-inch, and 10-inch display sizes. They include high-speed CPU processors, high-resolution screens with long-lasting backlights utilizing LED technology, and both dynamic memory as well as high flash memory. These units also allow you to work in a wide range of networks with both Ethernet and Serial ports.
Specifications:
| Part Number: | XBTGT2330 |
| Product Line: | Magelis XBTGT Series |
| Touchscreen Size: | 5.7 in. |
| Warranty: | 1-Year Warranty |
| Touch Technology: | Resistive |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |
| lineation test: | ≥1.000.000 times |
| Input Type: | ≥100.000 times |
Related BB Teach Pendant Part No. :
| Schneider XBTGT2330 XBT-GT2330 | Description | Inventory status |
| XBTGT1100 | advanced touchscreen panel- 3.8" TFT LCD - 24 V DC | In Stock |
| XBTGT1105 | advanced touchscreen glass- 3.8" TFT LCD | In Stock |
| XBTGT1130 | advanced touch panel glass- 3.8" TFT display | In Stock |
| XBTGT1135 | advanced touch screen- 3.8" HMI Part | In Stock |
| XBTGT1335 | advanced touch glass- 3.8" TFT display | In Stock |
| XBTGT2110 | Touch Screen Replacement-5.7'' | In Stock |
| XBTGT2120 | Touch Membrane Screen-5.7'' | In Stock |
| XBTGT2130 | Touch Panel Glass -5.7-inch HMI Parts | In Stock |
| XBTGT2220 | Touch Screen Panel-5.7'' HMI Part | In Stock |
| XBTGT2930 | advanced touchscreen panel- 5.7" TFT LCD - 24 V DC | In Stock |
| XBTGT2430 | touchscreen panel- 5.7" TFT LCD display | In Stock |
| XBTGT4230 | advanced touchscreen panel - 320 x240 QVGA - 7.5" | In Stock |
| XBTGT4330 | Touch Screen Panel-7.5'' display | In Stock |
| XBTGT4340 | Touch Screen Glass-7.5'' LCD Display | In Stock |
| XBTGT5230 | Touchscreen Panel Glass-10.4'' Lcd Display | In Stock |
| XBTGT5330 | Touch Panel Repair-10.4'' for Replacement | In Stock |
| XBTGT5340 | Touch Glass Membrane -10.4'' for Repair | In Stock |
| XBTGT5430 | Touch Screen Panel -10.4'' Display | In Stock |
| XBTGT6330 | advanced touchscreen panel - 800 x 600 pixels - 12.1" | In Stock |
| XBTGT6340 | touchscreen panel glass - 12.1" LCD Display | In Stock |
| XBTGT7340 | Touch Screen Panel Glass-15'' HMI Parts | In Stock |
Schneider Electric Telemecanique XBTGT2330 Touch Screen Panel PDF Download:
FAQ:
Question: Is the internal backlight replaceable?
Answer: No, the internal backlight of XBTGT2330 is not replaceable.
Question: Is the battery replaceable?
Answer: No, the battery of XBTGT2330 is not replaceable.
Question: What is the price of XBTGT2330 HMI Parts?
Answer: Submit a quote request, send us an email for our best price.
