Membrane keypad for XBTGK2330 membrane keyboard switch
| Model | Schneider XBTGK2330 |
|---|---|
| Warranty | 180 days VICPAS Warranty |
| Terms of Payment | Western Union, T/T, PayPal, T/T ,Credit Card, Western Union |
| Download | |
| Update Time | 2026-02-04 03:08:47 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

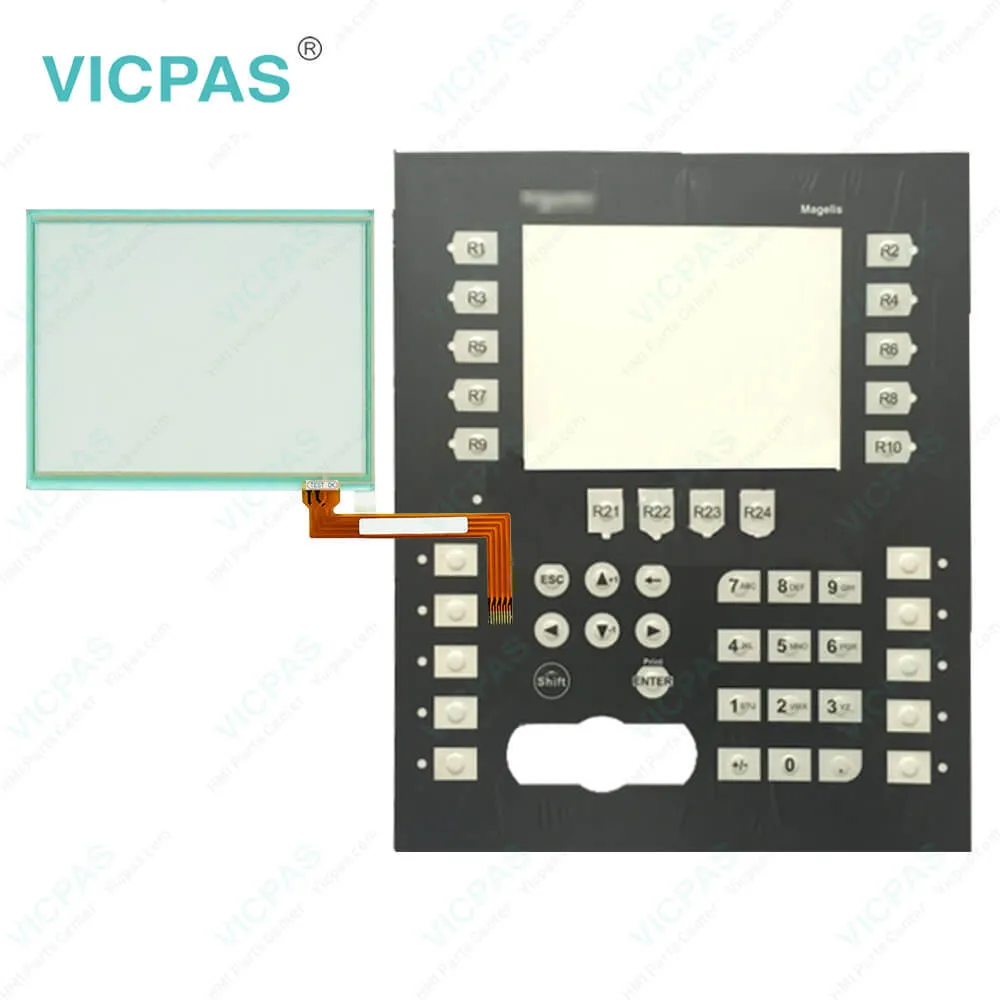

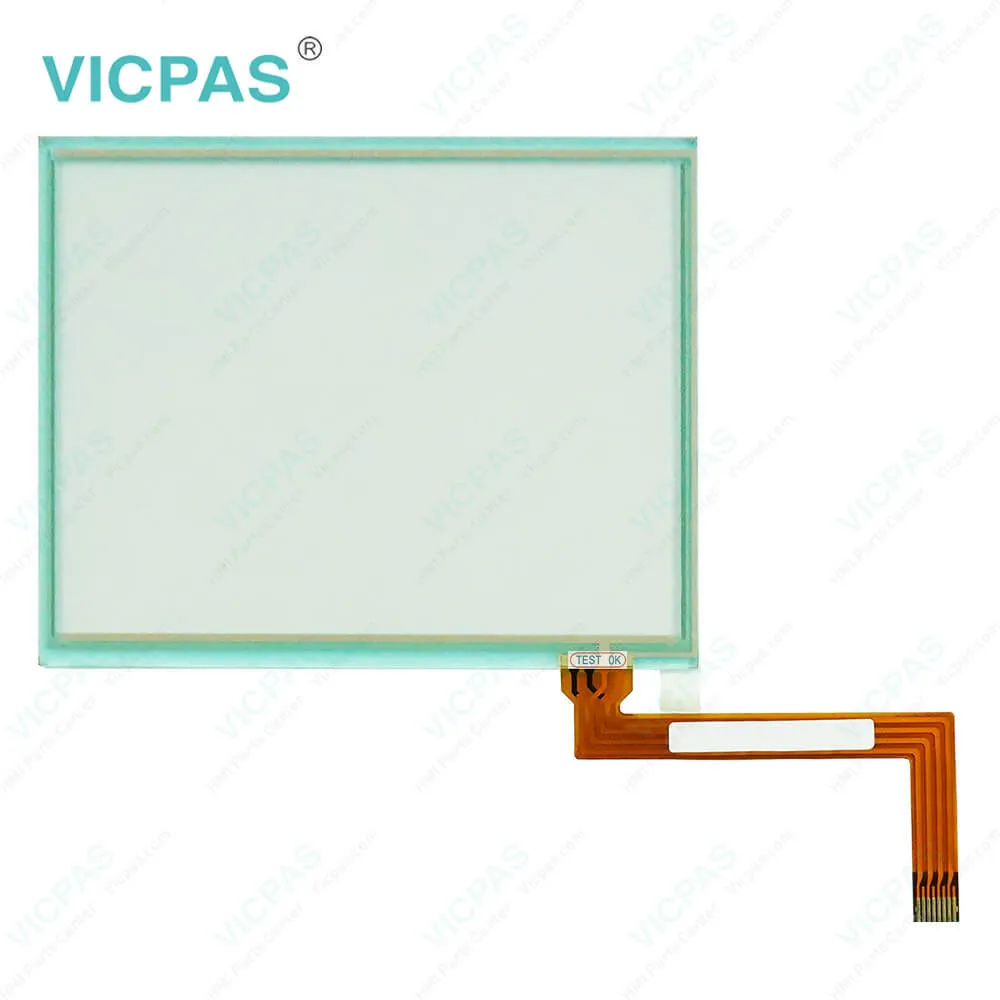

Schneider Magelis XBTGK2330 Membrane Keypad with Touchscreen for replacement
Order each part separately is available

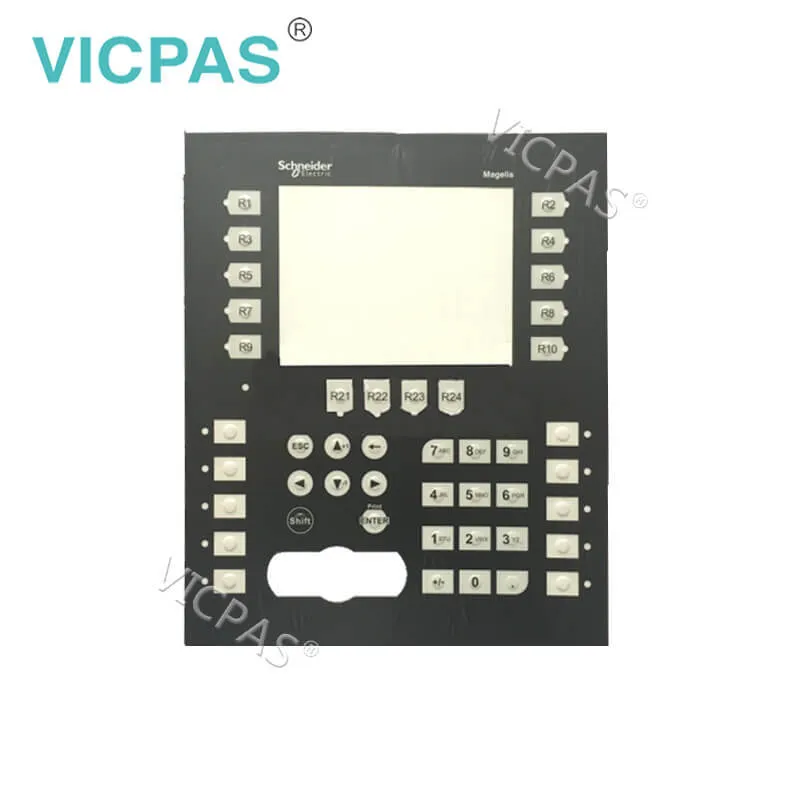

The XBTGK2330 membrane keypad is Schneider Tesys T series Small panel with keypad. It is very simple and easy to use, ambient air temperature for operation rang between 0~55 C. The XBTGK2330 keyboard is an operator terminal that enables the user to interface with their machine. And also, the display offers a variety of graphics on the monochrome display.
This Schneider HMI allows the user to connect using Vijeo Designer Lite, which runs on a personal computer. This ntegrated control panel connection type and Power supply: removable screw terminal block.
Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485), multidrop topology. This gasket, when used correctly, is able to form a compression type seal. You should not use any sealing compounds on this unit.
Specifications:
| Part Number: | XBTGK2330 |
| Product Line: | Magelis XBT GK Series |
| Touchscreen Size: | 5.7 in. |
| Warranty: | 180 days Warranty |
| Touch Technology: | Keyboard |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |
| lineation test: | ≥1.000.000 times |
| Input Type: | ≥100.000 times |
Related BB Teach Pendant Part No. :
| Schneider XBTGK2330 | Description | Inventory status |
| XBTGK2120 | advanced touchscreen panel with keyboard- 5.7'' | In Stock |
| XBTGK2330 | advanced touchscreen panel with keypad-5.7'' | In Stock |
| XBTGK5330 | advanced touchpanel with keyboard- 10.4'' | In Stock |
Membrane keypad for XBTGK2330 membrane keyboard switch PDF Download:
FAQ:
Question: Is the internal backlight replaceable?
Answer: No, the internal backlight of XBTGK2330 is not replaceable.
Question: Is the battery replaceable?
Answer: No, the battery of XBTGK2330 is not replaceable.
Question: What is the price of XBTGK2330 HMI Parts?
Answer: Submit a quote request, send us an email for our best price.
Common misspellings:
BTGK2330
XTGK2330
XBGK2330
XBTK2330
XBTGK230
XBTGK233
