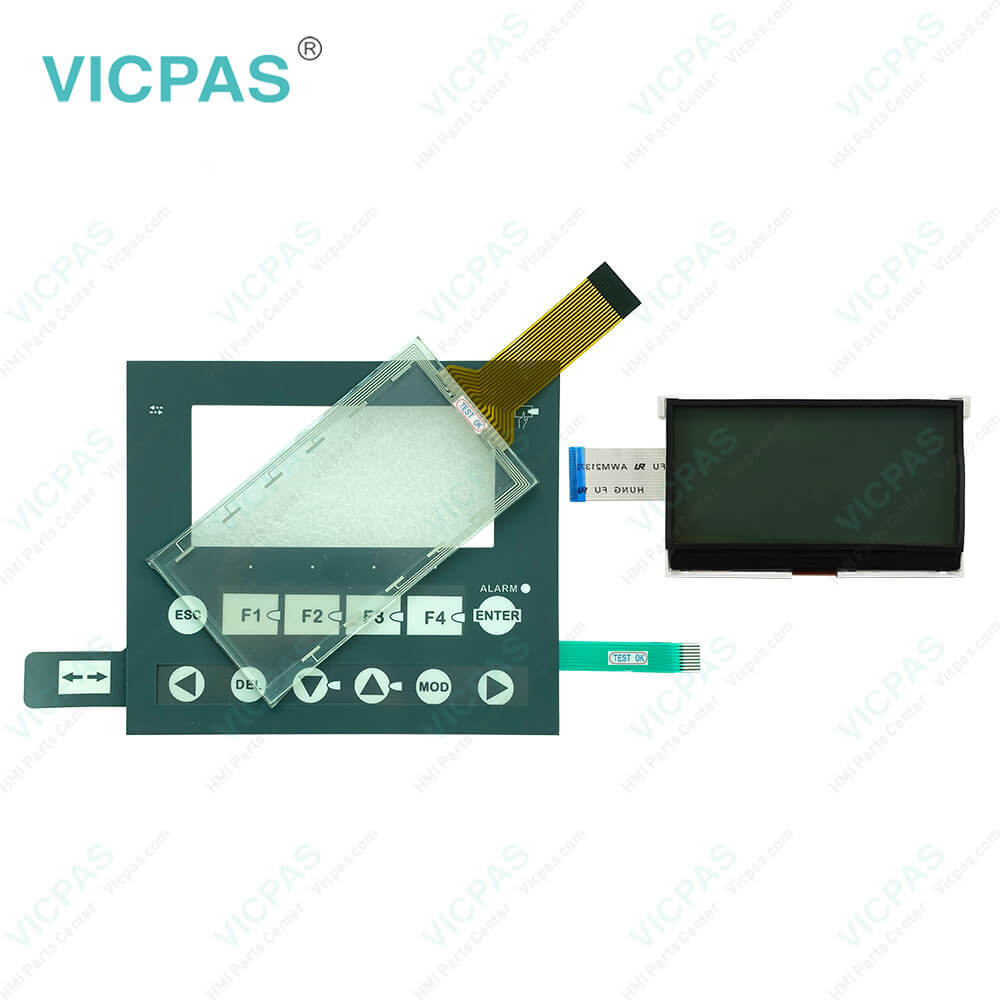

XBTRT500 Magelis Schneider Membrane Keypad Switch
| Brand | SCHNEIDER |
|---|---|
| Model | XBTRT500 |
| Warranty | 365 Days |
| Product Line | Schneider Magelis XBT RT series |
| Supply | LCD Display PanelOperator Panel Keypad Touchscreen |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-04 03:15:09 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Schneider Magelis HMI XBTRT500 LCD Display Screen Membrane Keyboard Keypad Touch Membrane Repair
Order each part separately is available
XBT N and XBT RT500 Keyboard Membrane terminals can be configured for different variants (control and input variant as well as touch variant only for XBT RT500) with the function keys providing different functions in each variant. XBT R terminals, on the other hand, only provide one variant. It is also possible that function keys have different functions in one variant, depending on whether you are only viewing the panels (normal mode) or you are entering values (edition mode).
XBTRT500 Keypad Membrane Touch Digitizer Glass LCD Screen terminals are delivered with 2 insert label sheets providing the following label types to assign different texts or symbols to the keys:
service key labels
function key labels
touch key labels
blank labels
Kernfix supply XBTRT500 Magelis Schneider Operator Panel Keypad, HMI Panel Glass and LCD Display Screen with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | XBTRT500 |
| Display device: | Green backlit LCD |
| Data Entry: | Via keypad |
| Warranty: | 365 Days Warranty |
| Material: | Polyester or Polycarbonate |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |
| Conductive Trace: | Silver or Copper |
| Life Cycle: | 5 Million Cycles(up to) |
Related BB Teach Pendant Part No. :
| XBTRT500 | Description | Inventory status |
| XBTN200 | Schneider Mgelis XBT N Operator Keyboard Repair | In Stock |
| XBTN400 | Schneider Mgelis XBT N Membrane Keypad Keyboard | In Stock |
| XBTN401 | Magelis HMI XBT N Schneider Keyboard Membrane Replacement | Available Now |
| XBTN410 | Magelis Schneider XBT N Switch Membrane Repair | In Stock |
| XBTNREQ3841G3 | XBT N Schneider Magelis HMI Terminal Keypad | Available Now |
| XBTNU400 | Schneider Magelis XBT N Keyboard Membrane Repair | In Stock |
| XBTPREQ3675G1 | Schneider Terminals Membrane Keypad Keyboard | In Stock |
| XBTR400 | Schneider Magelis XBT R Switch Membrane Repair | In Stock |
| XBTR410 | Schneider XBT R Membrane Keypad Replacement | Available Now |
| XBTR411 | Magelis Schneider XBT R HMI Switch Membrane Repair | Available Now |
| XBTRT500 | Magelis XBT RT Keyboard Membrane Replacement | In Stock |
| XBTRT511 | Schneider Magelis XBT RT HMI Switch Membrane Repair | Available Now |
XBTRT500 Magelis Schneider Membrane Keypad Switch PDF Download:
FAQ:
Question: How to connect Schneider Magelis XBT RT500 to a PC?
Answer: XBTRT500 terminals can be connected to a PC in 2 different ways:
Question: What is the display resolution of XBT RT500 LCD Display Keyboard Membrane MMI Touch Screen?
Answer: The Schneider Terminal XBT-RT500 Touch Digitizer Keyboard Membrane Terminal LCD Screen display is 122 x 32 pixels
