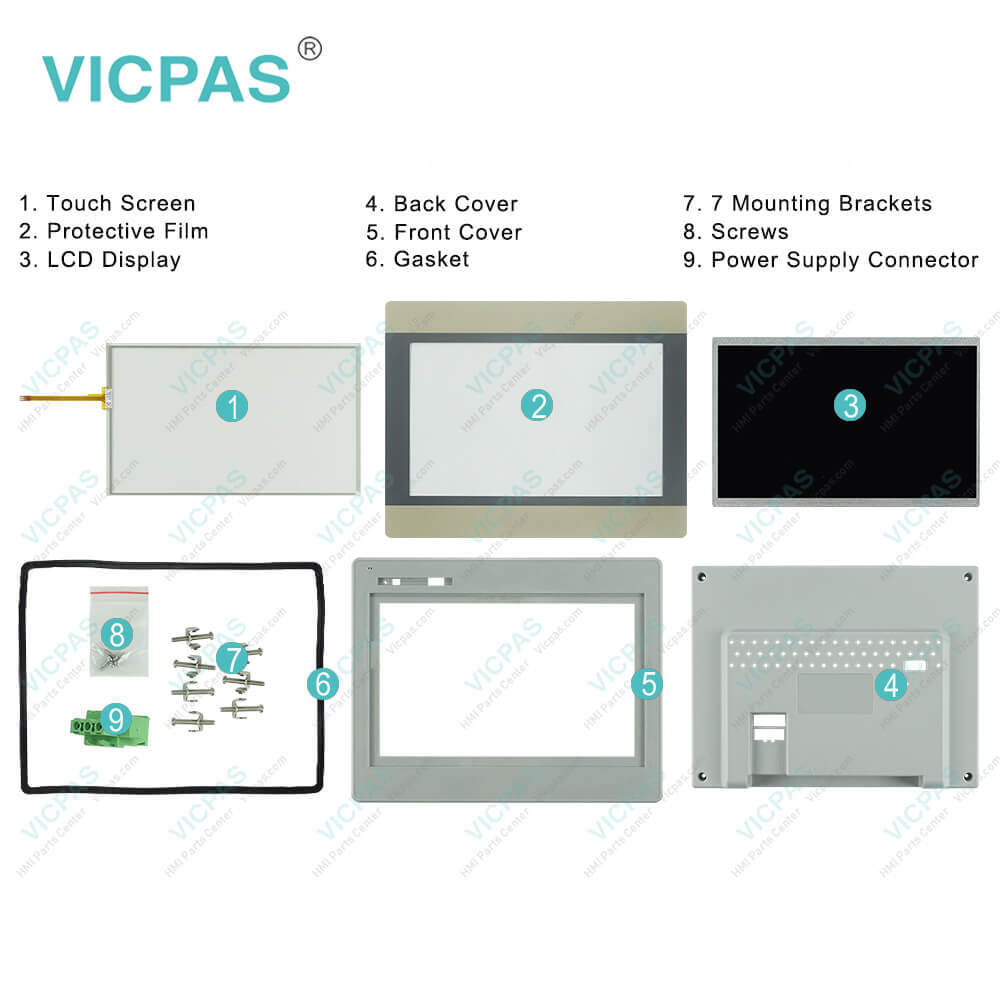

MT8100iE MT8101iE1 MT8101iE Overlay LCD Display Case Cover Touchscreen

Order each part separately is available

Cautions

When you've assembled Weintek Weinview MT8100iE MT8101iE1 MT8101iE Screws, Power Supply Connector, Mounting Brackets, Front Overlay, Front Case, Touch Screen Glass, LCD Display Screen and Back Cover, you may encounter the following problems.

About the touchscreen calibration, if you have trouble with it, press and hold anywhere on the screen when HMI starts until it enters touchscreen calibration mode. If the display does not come on within 5 seconds of power up, remove power. In addition, a resettable fuse will protect against overcurrent faults in DC circuit and the resetting will take place after a period of time. Check wiring for proper connections and try to power up again. The system designer should be aware that devices in Controller systems could fail and thereby create an unsafe condition, it will damage the MT8100iE MT8101iE1 MT8101iE Gasket, Front Overlay, LCD Screen, Screws, Housing, Mounting Brackets, Touch Digitizer Glass and Power Supply Connector. Furthermore, electrical interference in an operator interface can lead to equipment start-up, which could result in property damage and/or physical injury to the operator.

Tips about cleaning HMI Weinview MT8100iE MT8101iE1 MT8101iE Back Cover, Protective Film, Mounting Brackets, LCD Display, Front Cover, Screws, Gasket, Power Supply Connector and Touch Screen: disconnect the equipment from all power outlets before cleaning. Use only a damp cloth for cleaning. Do not use liquid or spray detergents. Never pour any liquid into an opening. This may cause fire or electric shock. After cleaning, you should keep MT8100iE MT8101iE1 MT8101iE HMI Case, Protective Film, MMI Panel Screen, Power Supply Connector, Screws, LCD Display, Mounting Brackets and Gasket away from humidity.
