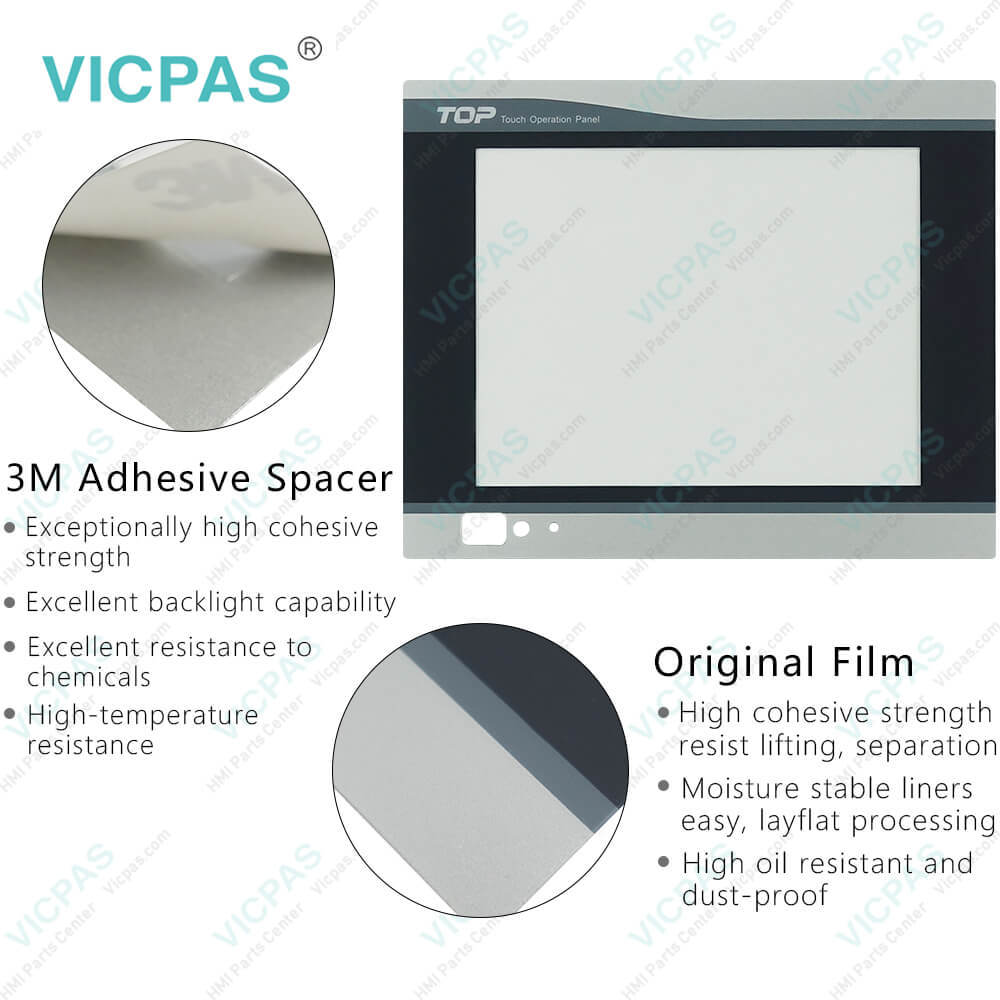

M2I H TOP Series HTOP05TQ-SD Protective Film HMI Touch

M2I H TOP Series HTOP05TQ-SD Protective Film HMI Touch
M2I H TOP Series HTOP05TQ-SD Protective Film HMI TouchM2I H TOP Series HTOP05TQ-SD Protective Film HMI TouchM2I H TOP Series HTOP05TQ-SD Protective Film HMI TouchM2I H TOP Series HTOP05TQ-SD Protective Film HMI TouchM2I H TOP Series HTOP05TQ-SD Protective Film HMI Touch
BrandM2I
ModelM2I HTOP05TQ-SD
Warranty365 Days
Product LineM2I H TOP Series
SupplyHTOP05TQ-SD Touch Panel Front Overlay
Shipping2-4 workdays
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update Time2026-02-04 03:28:10
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

M2I H TOP Series HTOP05TQ-SD Front Overlay Touch Screen Display Replacement

Order each part separately is available

M2I H TOP Series HTOP05TQ-SD Front Overlay Touch Glass Film Repair Replacement

Ground Wiring warning

1.The HTOP05TQ-SD Protective Film Touch Screen Monitor product has enough anti-noise measure, so except that there are many noises. Specially, the ground is not needed.
2. The ground should be the exclusive ground. The ground should be type Class 3 ground (ground resistor is less than 1000).
3. When not doing the exclusive ground, do common ground.
4. Use the cable of M2I HTOP05TQ-SD Touch Membrane Front Overlay more than 4 mm2. Put the point of the ground near product and shorten Ground line.


Cleaning the HTOP05TQ-SD Protective Film Touch Screen Display

When the surface or frame of the display become dirty, spray the cleaning solution onto a soft cloth and wipe the device. Do not spray the cleaning solution directly onto the HTOP05TQ-SD Touch Screen Film Front Overlay.


Periodic Check Points

Check the followings periodically for best condition of the HTOP05TQ-SD Touch Screen Glass Protective Film.
Environment
a.Is the operating temperature within the allowable range (-10C~50C)?
b.Is the operating humidity of HTOP05TQ-SD Front Overlay Touch Membrane within the allowable range (10%~80%RH)?
c.Is the Surrounding pollution no corrosive gas?
Power
Is the input voltage within the change range (-15%~+10%)?
Related Items
a.Check the guarantee duration of LCD Backlight of HTOP05TQ-SD Front Overlay Touch Screen Tablet by eye.
b.Check the touch pad there is no damage, scratch or pollution by eye.





  Contact Best Price

Specifications:

Resolution:320 x 240 Pixels
Operation Temperature:0°C ~ +50°C
Display Color:65536 Color
Touch Type:Analog Resistive Film
Ambient Humidity:85% RH or less
Part Number:HTOP05TQ-SD
Status LED:Built-in
Warranty:365 Days
Storage Temperature:-10°C ~ +60°C
Operating Humidity:0°C ~ +90°C


Related BB Teach Pendant Part No. :

M2I HTOP05TQ-SDDescription Inventory status
HTOP05TQ-SDM2I H Top Series Touch Screen Film Front Overlay ReplacementIn Stock
HTOP05TQ-SD2M2I H Top Series Protective Film HMI Panel Glass RepairAvailable Now
HTOP05TQ-SD-WM2I H Top Series Front Overlay Touch Membrane ReplacementIn Stock
HTOP05TV-SDM2I H Top Series HMI Touch Glass Protective Film RepairAvailable Now
HTOP05TV-SD2M2I H Top Series Touch Screen Display Front Overlay ReplacementIn Stock
HTOP05TV-SD-WM2I H Top Series Protective Film HMI Panel Screen RepairAvailable Now
TOPRE0700WDM2I TOPRE Series Touch Membrane Protective Film ReplacementIn Stock
TOPRW0500WDM2I TOPRW Series Touch Digitizer Front Overlay ReplacementAvailable Now
TOPRW0700WDM2I TOPRW Series Front Overlay MMI Panel Screen RepairIn Stock
TOPRW1000WDM2I TOPRW Series Protective Film Touch Digitizer Glass ReplacementAvailable Now

M2I H TOP Series HTOP05TQ-SD Protective Film HMI Touch PDF Download:

  • M2I
  • Industrial HMI Solution TOP
  • TOP Series Product Catalog
  • XTOP SERIES Installation Manual

    • FAQ:

    Question: What are the environment specifications of M2I H TOP Series HTOP05TQ-SD Front Overlay Touch Screen Display?

    Answer:

    Question: What are the front part names and specifications of HTOP05TQ-SD?

    Answer: The front part names and specific cation of M2I H TOP Series HTOP05TQ-SD are TFT 16M Color LCD, Analog Touch Panel and Front Cover Sheet for Damp Proof and Dust Proof.

    Question: What is the memory specifications of HTOP05TQ-SD?

    Answer:


    Common misspellings:

    TOP05TQ-SD

    HTP05TQ-SD

    HTOP05T-QSD

    HTOP05TQ-DS

    HHTOP05TQ-SD
