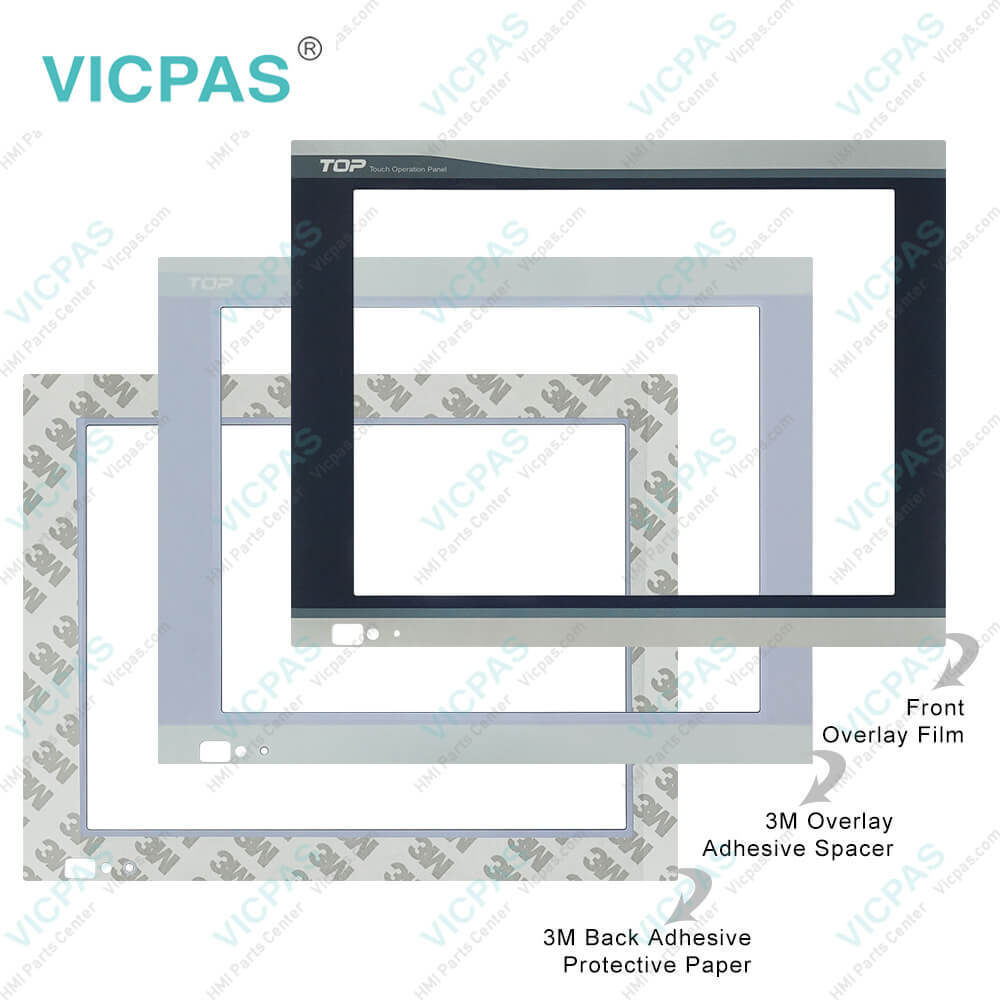

M2I XTOP Products Normal/EX TOPRX0500VD Panel Overlay
| Brand | M2I |
|---|---|
| Model | M2I TOPRX0500VD |
| Warranty | 365 Days |
| Product Line | M2I XTOP Products Normal/EX Model |
| Supply | TOPRX0500VD Protective Film HMI Panel Glass |
| Shipping | 2-4 workdays |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-04 03:29:06 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
M2I XTOP Products Normal/EX Model TOPRX0500VD Protective Film Touch Digitizer Glass Replacement
Order each part separately is available
Fixing
Install clamps with M2I TOPRX0500VD Touch Screen Monitor Front Overlay product should be installed as follows to maintain the IP performance of the device.
a.Insert the clamp into the slot of the product.
b.Screw the unit into the TOPRX0500VD Front Overlay Touch Membrane panel cut with a screwdriver. If the screw is over tightened, it may cause the front deformation, thus resulting the touch sensor Can't work properly Tighten the screws to a torque of 0.2 N.m.
Setting System Recovery Mode of TOPRX0500VD Protective Film Touch Digitizer Glass
a.If the system fails to boot normally due to a problem during operation, the built-in recovery function can be used to maintain the factory default state. Please note that the built-in project will be deleted when using the recovery mode.
b.After opening the TOPRX0500VD Protective Film Touch Screen Monitor rear cover, you can adjust the setting switch. Keep the "BOOT UP"state when booting normally. If the system is recovering, turn off the power and set it to "RECOVERY".
c.When the recovery of M2I TOPRX0500VD HMI Panel Glass Front Overlay is completed, the buzzer sounds, then turn off the power and reset to "BOOT UP" state.
Specifications:
| Display Color: | 65536 Color |
| Brand: | M2I |
| Display Type: | TFT Color |
| Backlight: | Yes |
| Operation Temperature: | 0°C ~ +50°C |
| Storage Temperature: | -10°C ~ +60°C |
| Warranty: | 365 Days |
| Status LED: | Yes |
| Part Number: | TOPRX0500VD |
| Ambient Humidity: | 85% RH or less |
Related BB Teach Pendant Part No. :
| M2I TOPRX0500VD | Description | Inventory status |
| TOPRX0800SD | M2I HMI Protective Film Touch Digitizer Glass Repair | Available Now |
| TOPRX0800VD | M2I HMI Front Overlay Touch Membrane Replacement | In Stock |
| TOPRX1000SD | M2I HMI HMI Touch Screen Protective Film Repair | Available Now |
| TOPRX1000SD-Ex | M2I HMI Touch Screen Display Front Overlay Replacement | In Stock |
| TOPRX1000VD | M2I HMI Protective Film HMI Panel Screen Repair | Available Now |
| TOPRX1000VD-Ex | M2I HMI Touchscreen Monitor Front Overlay Replacement | In Stock |
| TOPRX1200SD | M2I HMI Touch Screen Film Protective Film Repair | Available Now |
| TOPRX1200SD-Ex | M2I HMI Front Overlay Touch Digitizer Glass Replacement | In Stock |
| TOPRX1200XD | M2I HMI Protective Film Touch Membrane Repair | Available Now |
| TOPRX1200XD-Ex | M2I HMI Touch Screen Tablet Front Overlay Replacement | In Stock |
| TOPRX1500XD | M2I HMI Front Overlay Touch Screen Panel Repair | Available Now |
| TOPRX1500XD-Ex | M2I HMI Touch Screen Display Protective Film Replacement | In Stock |
M2I XTOP Products Normal/EX TOPRX0500VD Panel Overlay PDF Download:
FAQ:
Question: What is the case material of M2I TOPRX0500VD Front Overlay Touch Panel Terminal?
Answer: The case material is PC(Flameless).
Question: What is the cooling system of XTOP Products Normal/EX Model TOPRX0500VD Touch Membrane Protective Film Machine?
Answer: The cooling system of TOPRX0500VD is natural air circulation.
Question: What is M2I XTOP Products Normal/EX Model TOPRX0500VD Touch Screen and Protective Film HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
