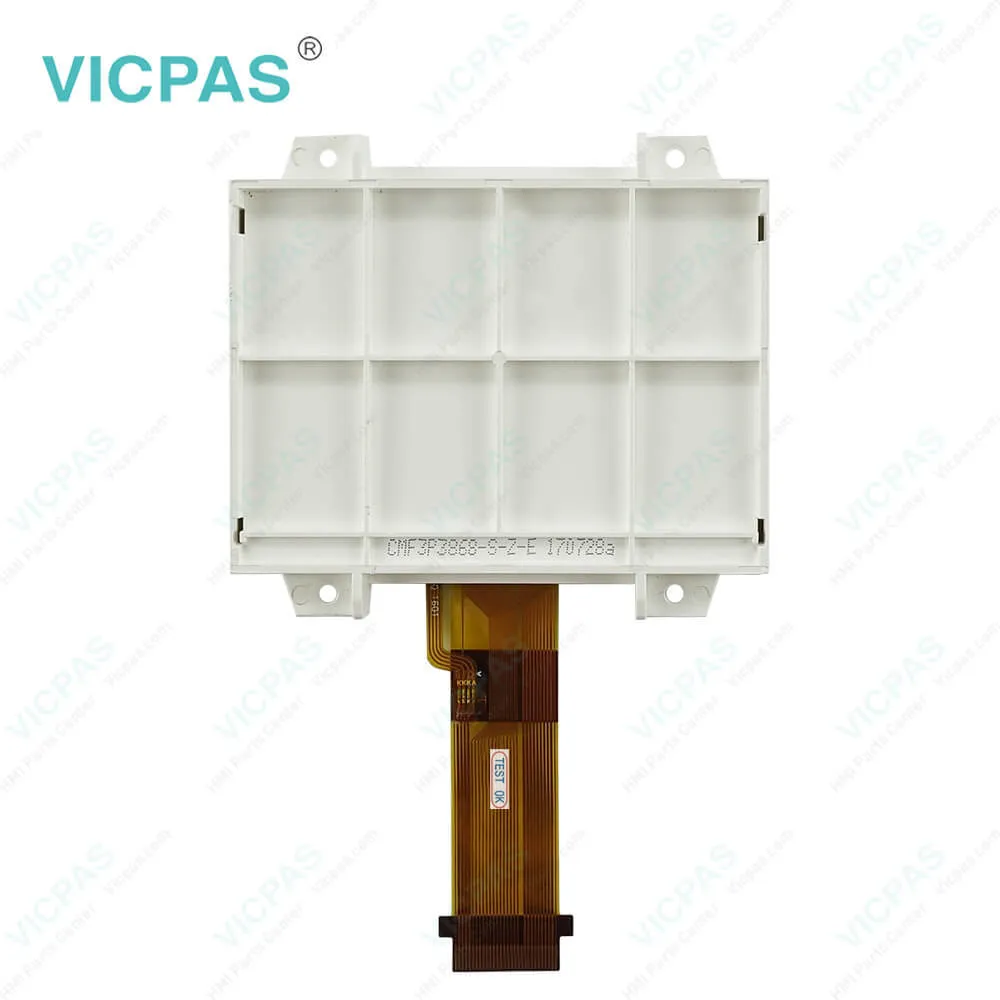

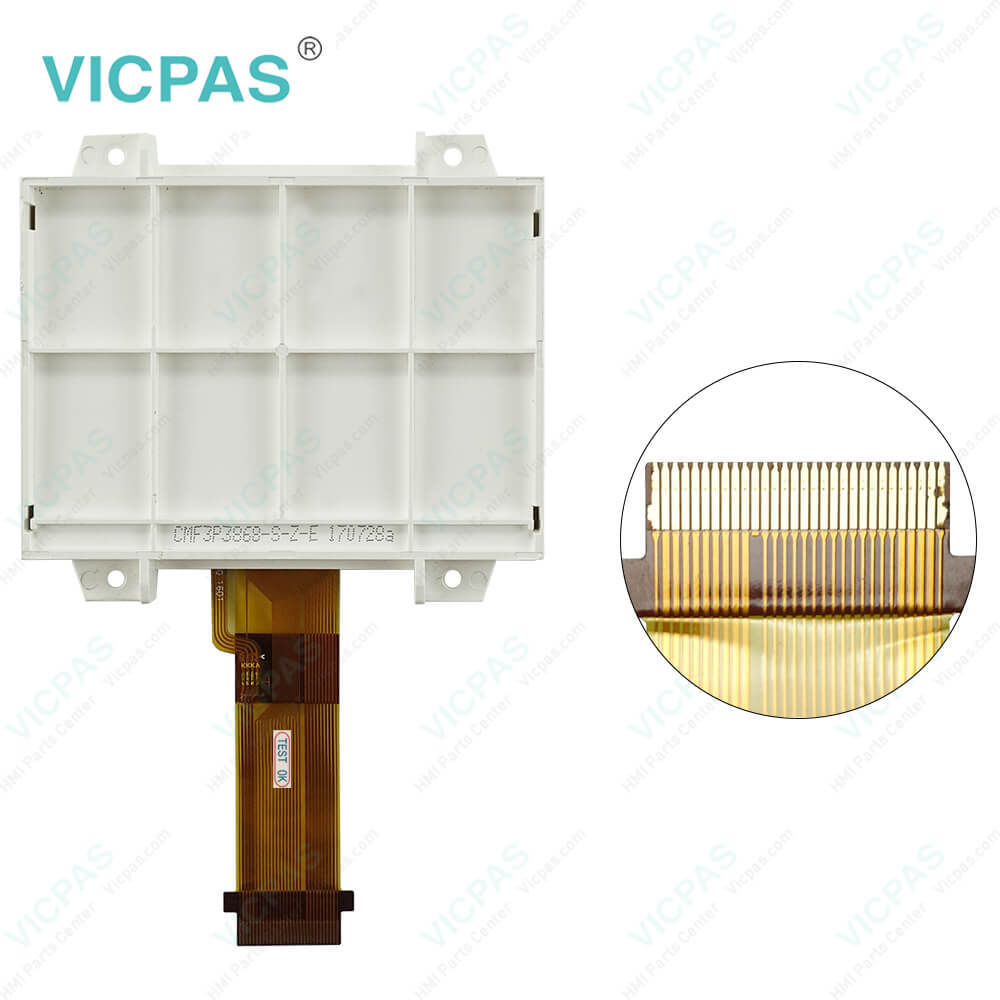

CMF3P3868 LCD Display Repair Replacement
| Brand | VICPAS |
|---|---|
| Model | CMF3P3868 |
| Warranty | 12 Months |
| Product Line | Siemens TDE |
| Supply | CMF3P3868 LCD Screen |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-02-06 18:47:20 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
CMF3P3868 LCD Display Panel Replacement Repair
CMF3P3868 LCD Screen Plastic Case Cover IHM SIPLUS LOGO! TDE -25...+60C start-up -20C with a conformal coating based on 6ED1055-4MH08-0BA1. 6-line, 3 background colors, 2 Ethernet ports, installation accessories for LOGO! 8
CMF3P3868 LCD Display HMI New Connectors
4 function blocks for keys LOGO! TDE
3 additional flags (M25, M26, M27)
CMF3P3868 LCD Screen New Special functions
Pulse Width Modulator (PWM)
Analog Math FB and a separate Error detection FB
CMF3P3868 LCD Display Panel Updated Special functions
The following FBs support new features:
Message text
PI-controller
Operation hours counter
Weekly timer
Yearly timer
Analog watchdog
Up/down counter
Additionally, LSC V6.0 supports new reference parameters for many blocks.
Specifications:
| Part Number: | CMF3P3868 |
| Number of lines: | 6 |
| Character sets: | 6 |
| Warranty: | 12-Months Warranty |
| Product Line: | Siemens LOGO! TD |
| Rated value (DC): | 24 V |
| Special characters: | 14 |
| System keys: | YES |
| Keyboard fonts: | US English |
| Controllable background colors: | 3, white, orange, red |
Related BB Teach Pendant Part No. :
| CMF3P3868 | Description | Inventory status |
| Domino A-GP A120 A220 | Domino A-GP A120 A220 Membrane Switch Keypad Replacement Repair | Available Now |
| Domino DB-PL3314 KEYBOARD ASSY FOR A-Series GP | Domino DB-PL3314 KEYBOARD ASSY FOR A-Series GP Membrane Keypad Replacement | In Stock |
| MONTOR II CT speed regulator M550RGB14 M155RGB14 | MONTOR II CT speed regulator M550RGB14 cover M155RGB14 Membrane Keyboard Keypad Housing | In Stock |
| RE21PC25CH16F | TOSOKU Photoelectric Coding Switch RE21PC25CH16F Shaft Φ6.0mm L=16mm | In Stock |
| RE21PC25CH16F | TOSOKU RE21PC25CH16F encoder Panasonic teaching pendant G2/G3 dedicated | Available Now |
| Mindray Bene View T1 Monitor | Mindray Bene View T1 Monitor LCD Screen Touch Screen Repair | In Stock |
| Mindray T1 Monitor | Mindray T1 Monitor HMI Touch Glass LCD Display Panel Repair | Available Now |
| MINDRAY IMEC12 | MINDRAY IMEC12 HMI Touch Screen Panel Repair Replacement | Available Now |
| 10243-LED-C-A173 | 10243-LED-C-A173 LCD Display Panel Repair Replacement | In Stock |
| CMF3P3868 | CMF3P3868 LCD Display Screen Replacement Repair | Available Now |
CMF3P3868 LCD Display Repair Replacement PDF Download:
FAQ:
Question: What is the dimension of 6ED1055-4MH08-0BA0 Siemens LOGO! TDE Plastic Case Cover?
Answer: It is 128.2 millimeter x 86 millimeters x 38.7 millimeters.
Question: How to configure the Siemens LOGO! TDE CMF3P3868?
Answer: The LOGO! TDE is a text display device that displays messages enabled by the S7-200 CPU. You do not have to configure or program the LOGO! TDE. The only operating parameters are stored in the LOGO! TDE is the address of the LOGO! TD, the address of the CPU, the baud rate, and the location of the parameter block. The configuration of the LOGO! TDE is stored in a LOGO! TDE parameter block located in the variable memory (V memory) of the CPU. The operating parameters of the LOGO! TD, such as language, update rate, messages, and message-enabled bits, are stored in the LOGO! TDE parameter block in the CPU.
Question: What is the CMF3P3868 HMI parts price?
Answer: Submit a fast quote, send Kernfix an email for best price.
