Home / All / for A-B-B / Panel 800 Series / PP865S 3BSE042242R1 15'' Overlay Panel Glass Repair

PP865S 3BSE042242R1 15'' Overlay Panel Glass Repair

PP865S 3BSE042242R1 15'' Overlay Panel Glass Repair
PP865S 3BSE042242R1 15'' Overlay Panel Glass RepairPP865S 3BSE042242R1 15'' Overlay Panel Glass RepairPP865S 3BSE042242R1 15'' Overlay Panel Glass RepairPP865S 3BSE042242R1 15'' Overlay Panel Glass RepairPP865S 3BSE042242R1 15'' Overlay Panel Glass Repair
ModelPP865S 3BSE042242R1
Warranty365 Days
Product LinePanel 800
Shipping2-3 workdays
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update Time2026-01-30 21:16:05
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Free Shipping

Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

Detail Information

Panel 800 PP865S 3BSE042242R1 Touch Screen Panel Front Overlay Repair Replacement

Order each part separately is available

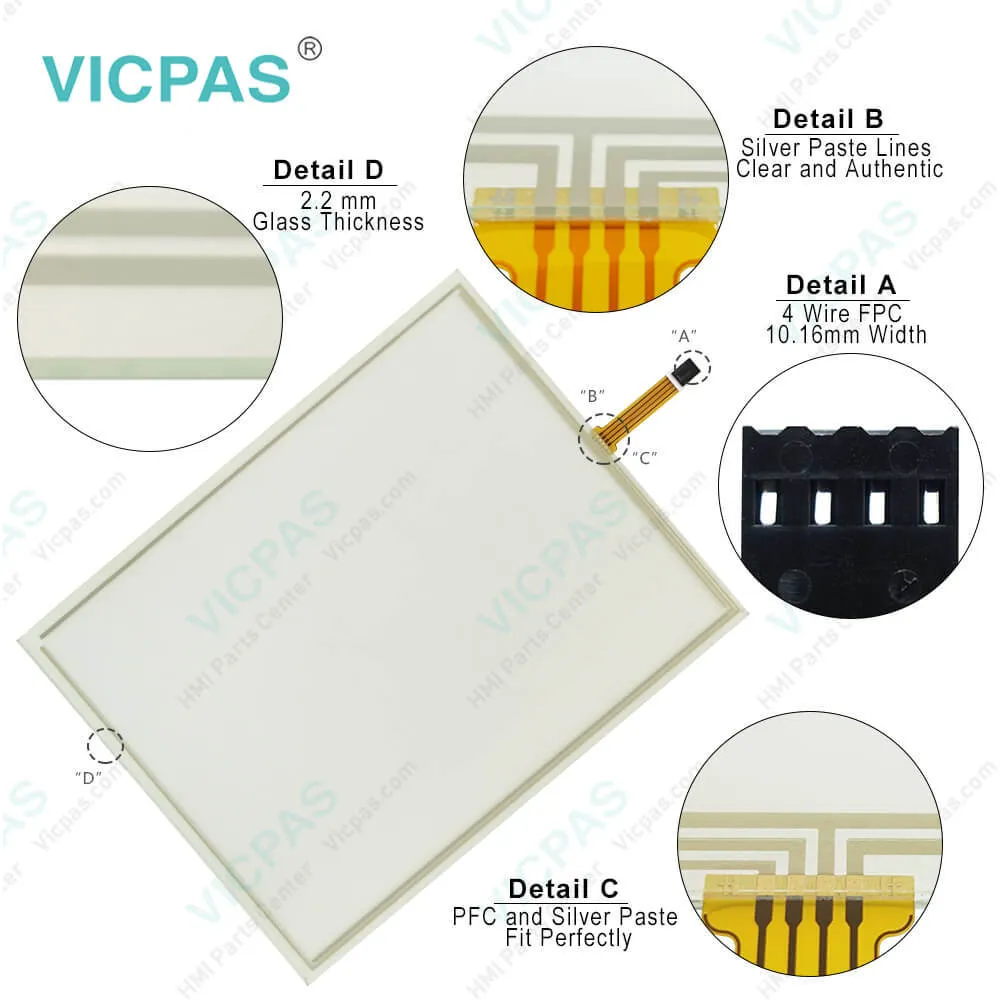

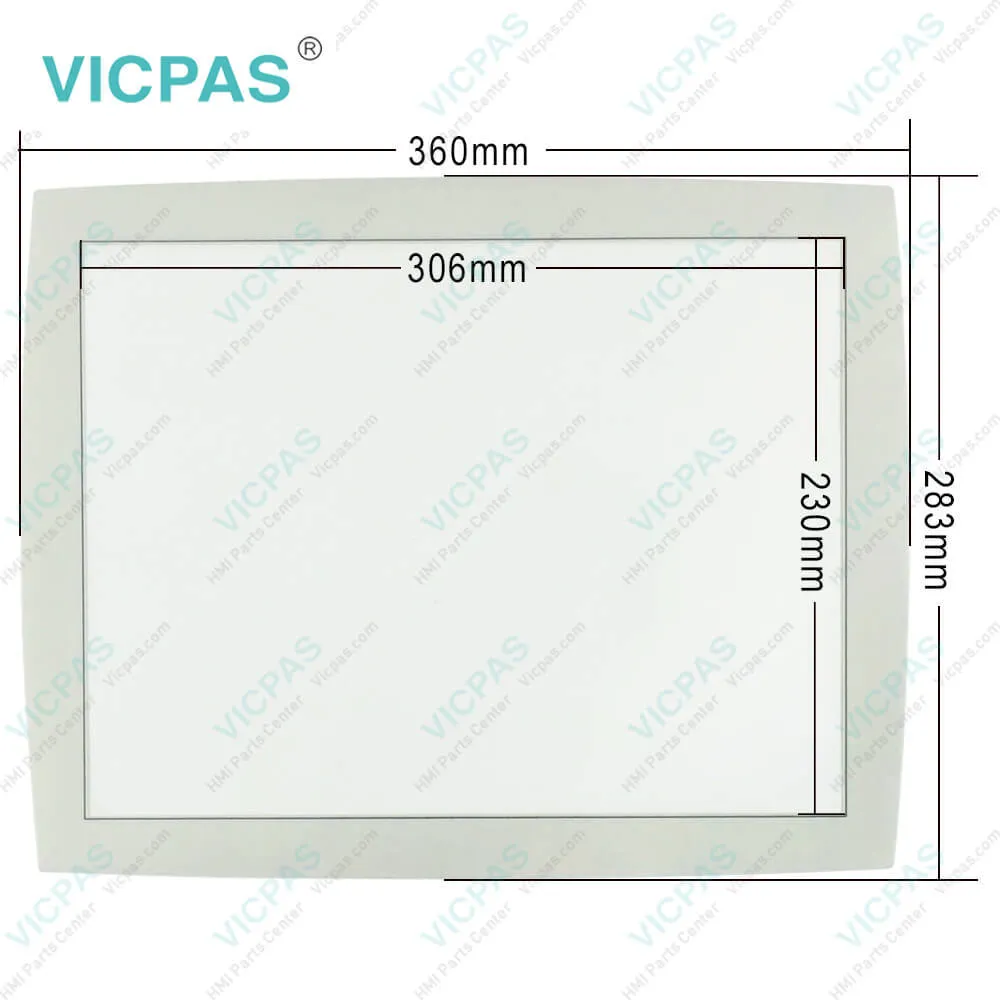

PP865S 3BSE042242R1 Touch Panel Glass Front Overlay Replacement

The description of the PP865S 3BSE042242R1 operator terminal:

Reverse side material: Powder-coated aluminum.

Serial port RS232C: 9-pin D-sub contact, male with standard locking screws 4-40 UNC.

CE approvals: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.

Keyboard material/Front panel: Touch screen: Polyester on glass, 1 million finger touch operations. Overlay: Autotex F157/F207 *.

Serial port RS422/RS485: 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC.

Display: TFT-LCD. 1024 x 768 pixels, 64K color. CCFL backlight lifetime at the ambient temperature of +25 °C: >35,000 h.

Real time clock: ±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C Temperature coefficient: -0.034±0.006 ppm/°C2


Kernfix supply Panel 800 PP865S 3BSE042242R1 Touch Digitizer Glass and Protective Film with 365 Days warranty and support Urgent Worldwide Shipping.






  Contact Best Price

Specifications:

Part Number:PP865S 3BSE042242R1
Touch Material:Polyester on glass

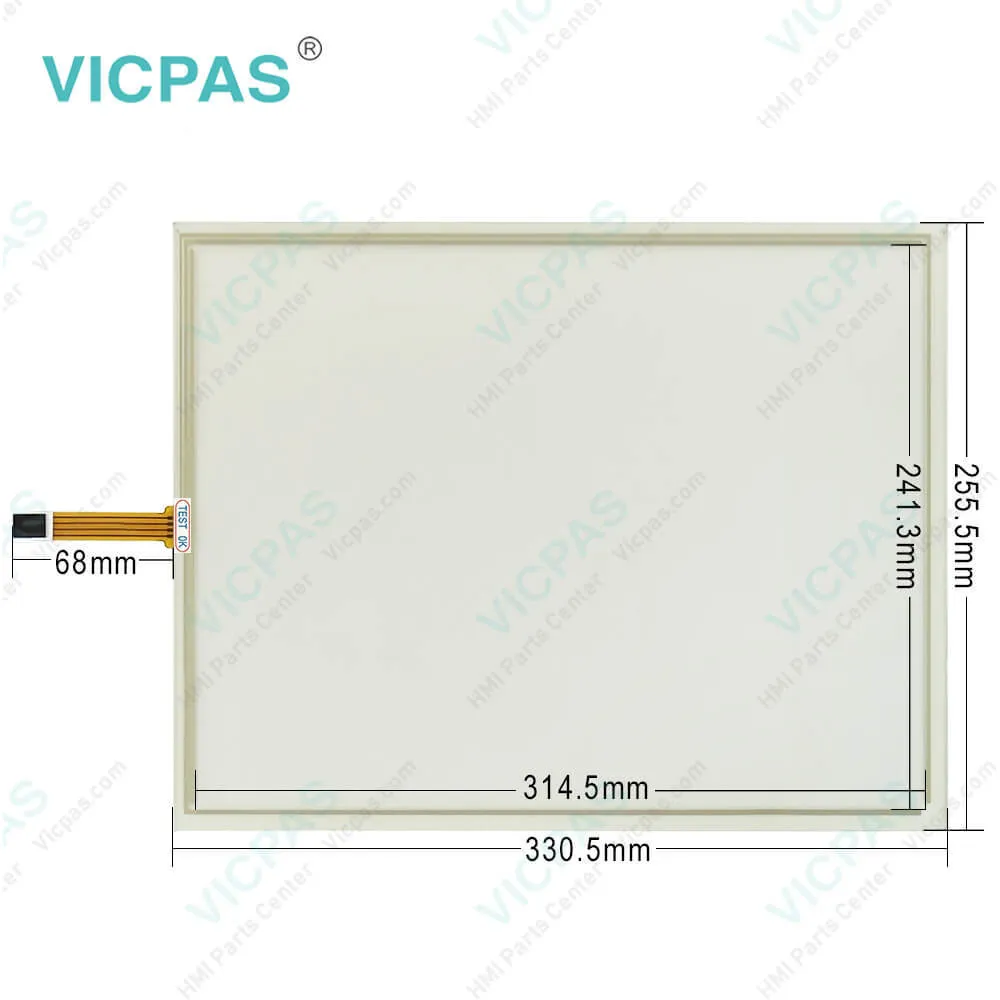

Active Area Of Display:304.1 x 228.1 mm
Backlight:CCFL
Display Type:TFT-LCD
Overlay Material:Autotex F157/F207 *
Display Resolution:1024 × 768 pixels
Part Type:New
Warranty:365 Days


Related BB Teach Pendant Part No. :

PP865S 3BSE042242R1Description Inventory status
PP825A 3BSE042240R3Panel 800 Series PP825A Touch Screen Protective Film ReplacementIn Stock
PP845 3BSE042235R1Panel 800 PP845 Front Overlay Touch Membrane RepairIn Stock
PP845A 3BSE042235R2Panel 800 Series PP845A Touch Glass Front Overlay RepairIn Stock
PP846 3BSE042238R1Panel 800 Series PP846 Terminal Keypad Replacement RepairAvailable Now
PP846A 3BSE042238R2Panel 800 PP846A HMI Membrane Keyboard ReplacementAvailable Now
PP865 3BSE042236R1Panel 800 Series PP865 Touch Screen Monitor Front OverlayIn Stock
PP865A 3BSE042236R2Panel 800 Series PP865A Front Overlay MMI Touch Screen ReplacementIn Stock
PP865S 3BSE042242R1Panel 800 Series PP865S HMI Touch Screen Protective FilmAvailable Now
PP871 3BSE069270R1Panel 800 Series PP871 Protective Film Touchscreen RepairIn Stock
PP871 3BSE069270R2Panel 800 Series PP871 HMI Protective Film Touch Screen GlassAvailable Now
PP874 3BSE069271R1Panel 800 Series PP874 Front Overlay Touch Screen Panel RepairIn Stock

PP865S 3BSE042242R1 15'' Overlay Panel Glass Repair PDF Download:

  • Panel 800
  • Compact Product Suite Pane 800 5.1 Data sheet
  • 3BSE043448R501 en Panel 800 PP865 5.1 Hardware and Installation pdf

    • FAQ:

    Question: How to install the PP865S 3BSE042242R1 operator terminal?

    Answer:

    Question: How to install the PP865S 3BSE042242R1 operator terminal?

    Answer:


    Common misspellings:

    PP85S

    3BSE042242R1PP865S

    3BSE04242R1PP865S

    B3SE042242R1PP865S

    3BSE042422R1PP865S

    3BSE0442242R1
