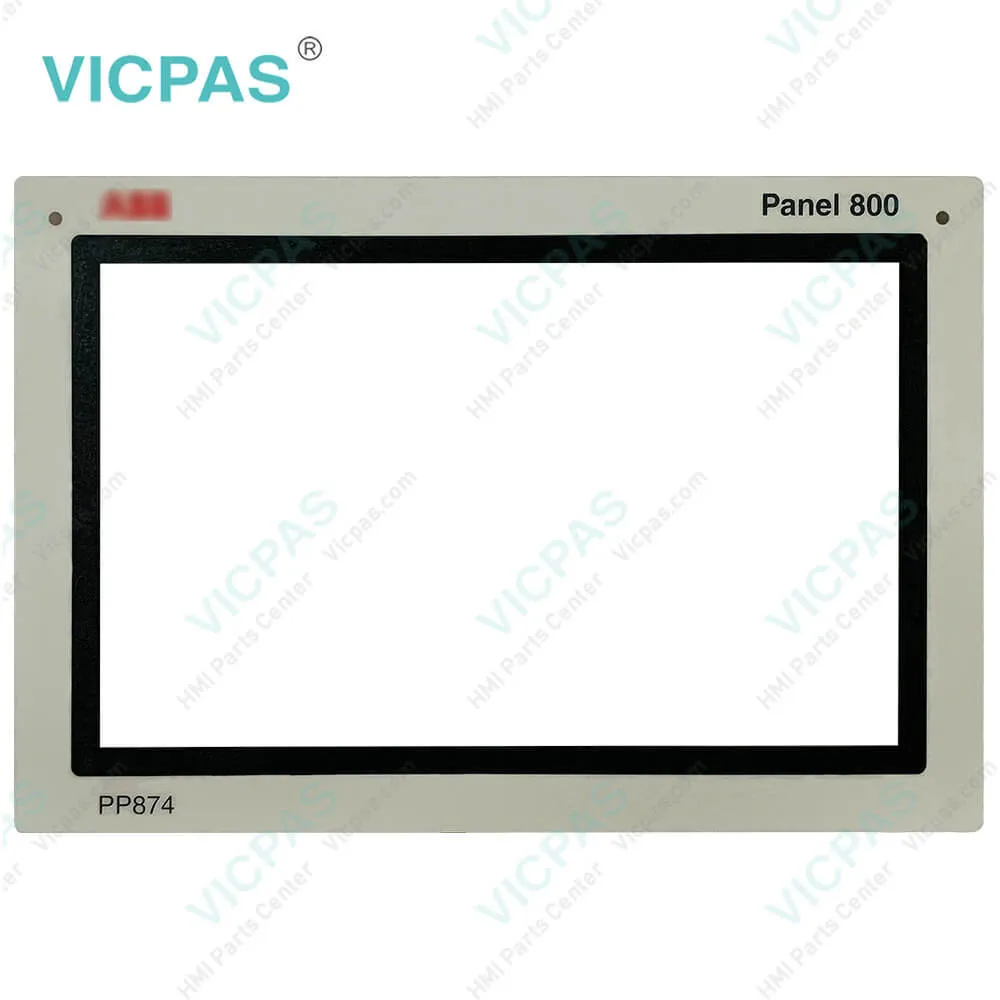

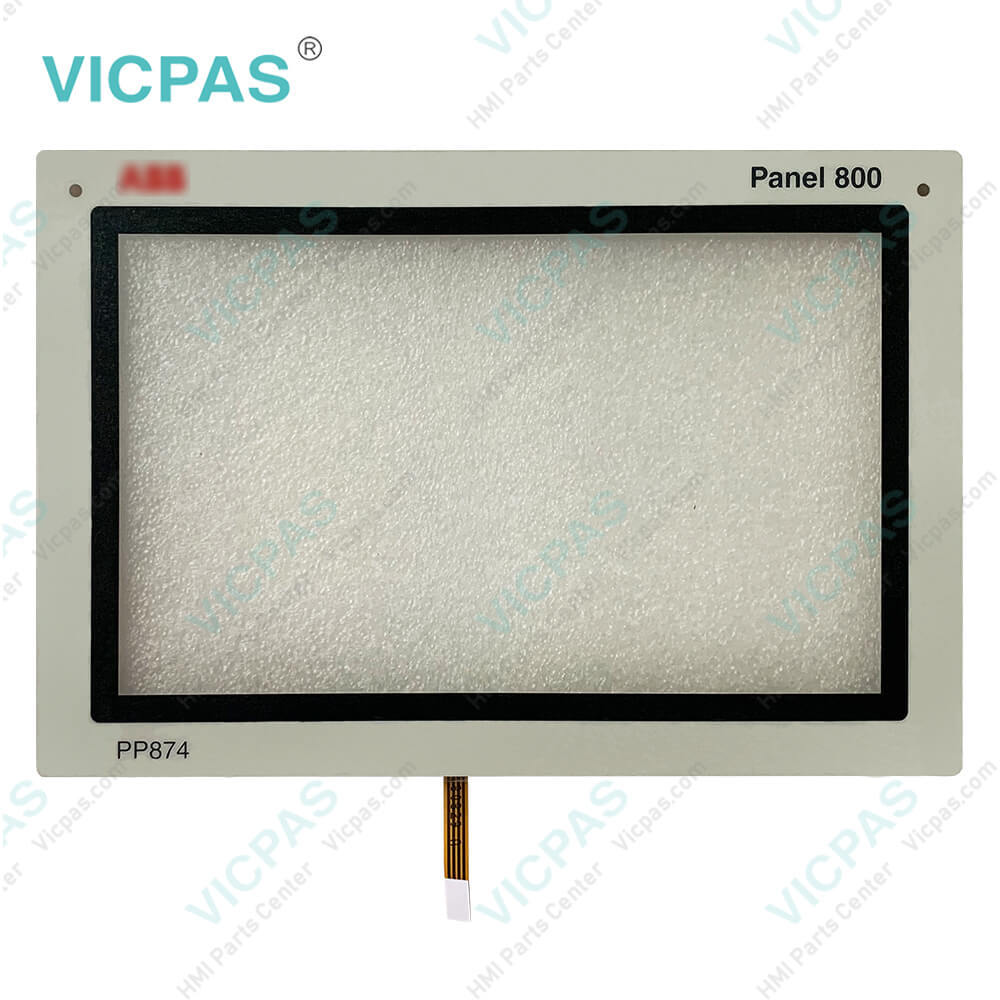

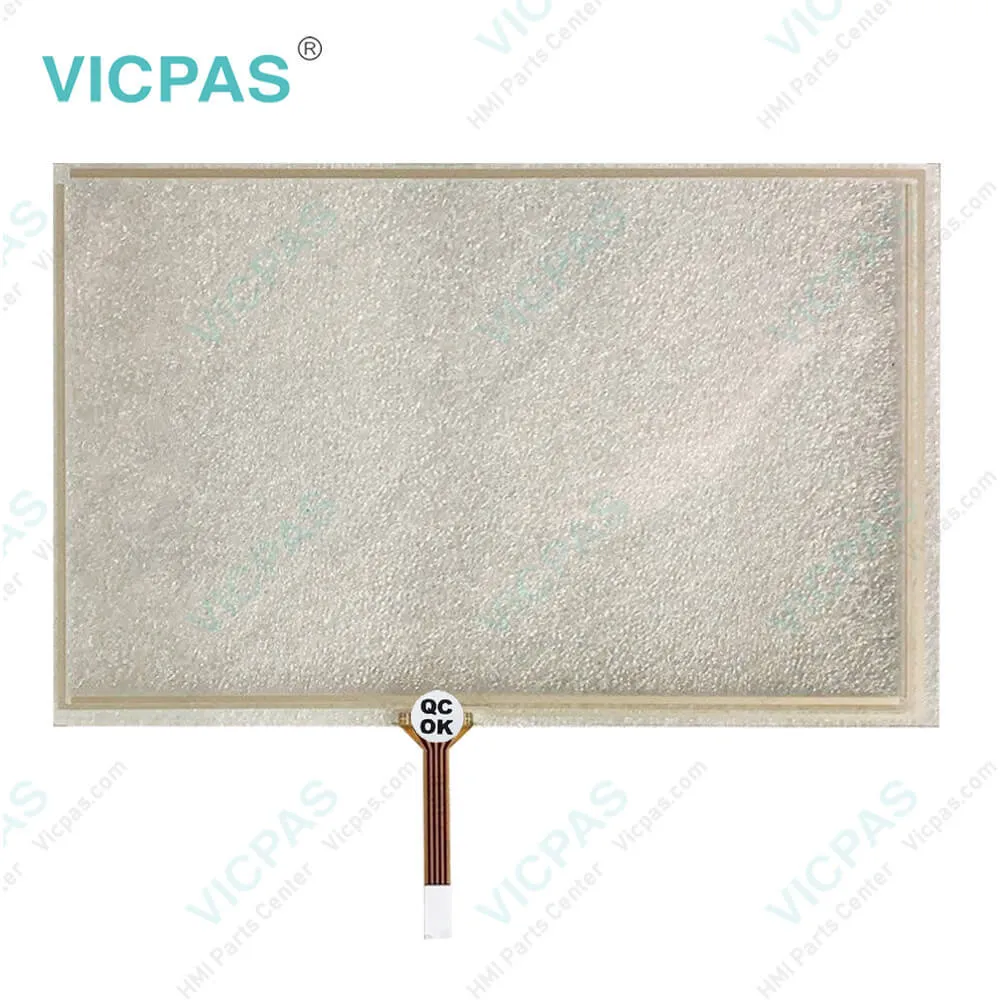

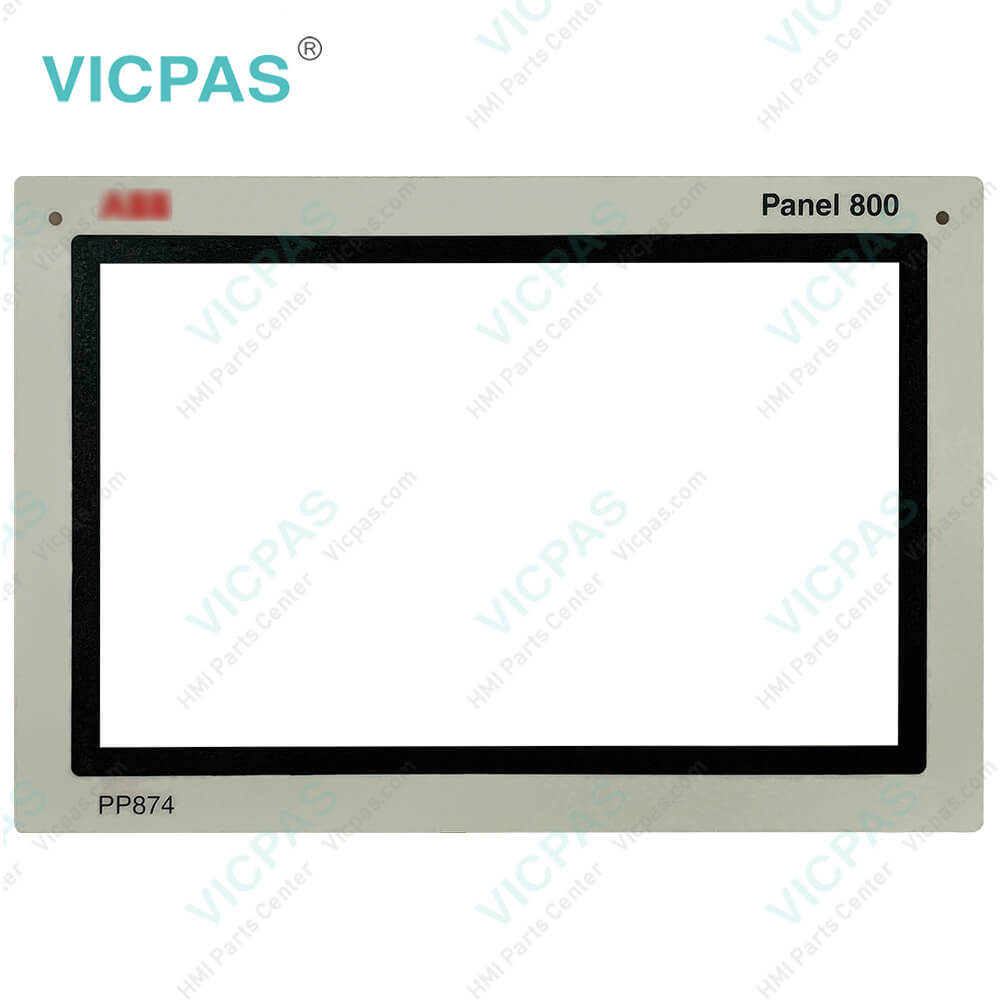

PP874 3BSE069271R1 7'' Glass Panel Front Overlay Repair
| Model | PP874 3BSE069271R1 |
|---|---|
| Warranty | 365 Days |
| Product Line | Panel 800 |
| Shipping | 2-3 workdays |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 21:16:42 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.
Panel 800 PP874 3BSE069271R1 Protective Film HMI Touch Screen Repair Replacement
Order each part separately is available
The description of the PP874 3BSE069271R1 operator terminal:
Ethernet: 1 × 10/100 Base-T (shielded RJ45)
Cut out dimensions (W × H) : 187 × 126 mm
Front panel (W × H × D) : 204 × 143 × 7 mm
USB: 1 × USB Host 2.0, max output current 200 mA
Mounting depth: 43 mm (143 mm including clearance)
Touch screen operations: 1 million finger touch operations
Standalone mounting: VESA 75 × 75. Note: Maximum screw length for VESA mounting is 4 mm. Usage of longer screws may lead to damage
Serial port for COM1 RS232 and COM2 RS422/RS485: 9-pin D-sub contact with RS232 RTS/CTS, chassis-mounted female with standard locking screws 4-40 UNC
Serial port for COM3 RS232 and COM4 RS422/RS485: 9-pin D-sub contact with RS232 RTS/CTS, chassis-mounted female with standard locking screws 4-40 UNC
Power supply(power range): +24 V DC (18 to 32 V DC) CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4. UL and cUL: The power supply must conform with the requirements for class II power supplies
Kernfix supply Panel 800 PP874 3BSE069271R1 Touch Screen Monitor and Front Overlay with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | PP874 3BSE069271R1 |
| Active Area Of Display: | 152.4 x 91.4 mm |
| Overlay Material: | Autoflex EBA 180L |
| Touch Material: | Polyester on glass |
| Warranty: | 365 Days |
| Screen Viewing Angle: | Horizontal: 140°, Vertical: 130° |
| Screen Brightness: | 350 cd/m² |
| Backlight: | LED |
| Size: | 7 inches |
Related BB Teach Pendant Part No. :
| PP874 3BSE069271R1 | Description | Inventory status |
| PP825A 3BSE042240R3 | Panel 800 Series PP825A Touch Screen Protective Film Replacement | In Stock |
| PP845 3BSE042235R1 | Panel 800 PP845 Front Overlay Touch Membrane Repair | In Stock |
| PP845A 3BSE042235R2 | Panel 800 Series PP845A Touch Glass Front Overlay Repair | In Stock |
| PP846 3BSE042238R1 | Panel 800 Series PP846 Terminal Keypad Replacement Repair | Available Now |
| PP846A 3BSE042238R2 | Panel 800 PP846A HMI Membrane Keyboard Replacement | Available Now |
| PP865 3BSE042236R1 | Panel 800 Series PP865 Touch Screen Monitor Front Overlay | In Stock |
| PP865A 3BSE042236R2 | Panel 800 Series PP865A Front Overlay MMI Touch Screen Replacement | In Stock |
| PP865S 3BSE042242R1 | Panel 800 Series PP865S HMI Touch Screen Protective Film | Available Now |
| PP871 3BSE069270R1 | Panel 800 Series PP871 Protective Film Touchscreen Repair | In Stock |
| PP871 3BSE069270R2 | Panel 800 Series PP871 HMI Protective Film Touch Screen Glass | Available Now |
| PP874 3BSE069271R1 | Panel 800 Series PP874 Front Overlay Touch Screen Panel Repair | In Stock |
PP874 3BSE069271R1 7'' Glass Panel Front Overlay Repair PDF Download:
FAQ:
Question: How to ground the PP874 3BSE069271R1 operator panel?
Answer:
Question: How to connect the cables?
Answer:
Common misspellings:
PP874
3SE069271R1PP874
3BSE06927R1PP784
3BSE069271R1PP874
3BSE069217R1PP874
3BSSE069271R1
