2711-K9A1L1
| Brand | Allen Bradley |
|---|---|
| Model | 2711-K9A1L1 |
| Warranty | 365 Days |
| Product Line | PanelView 900 |
| Supply | PanelView 900 Membrane Keypad Switch |
| Parts | 2711-K9A1L1 Membrane Keypad Switch |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-30 21:57:46 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

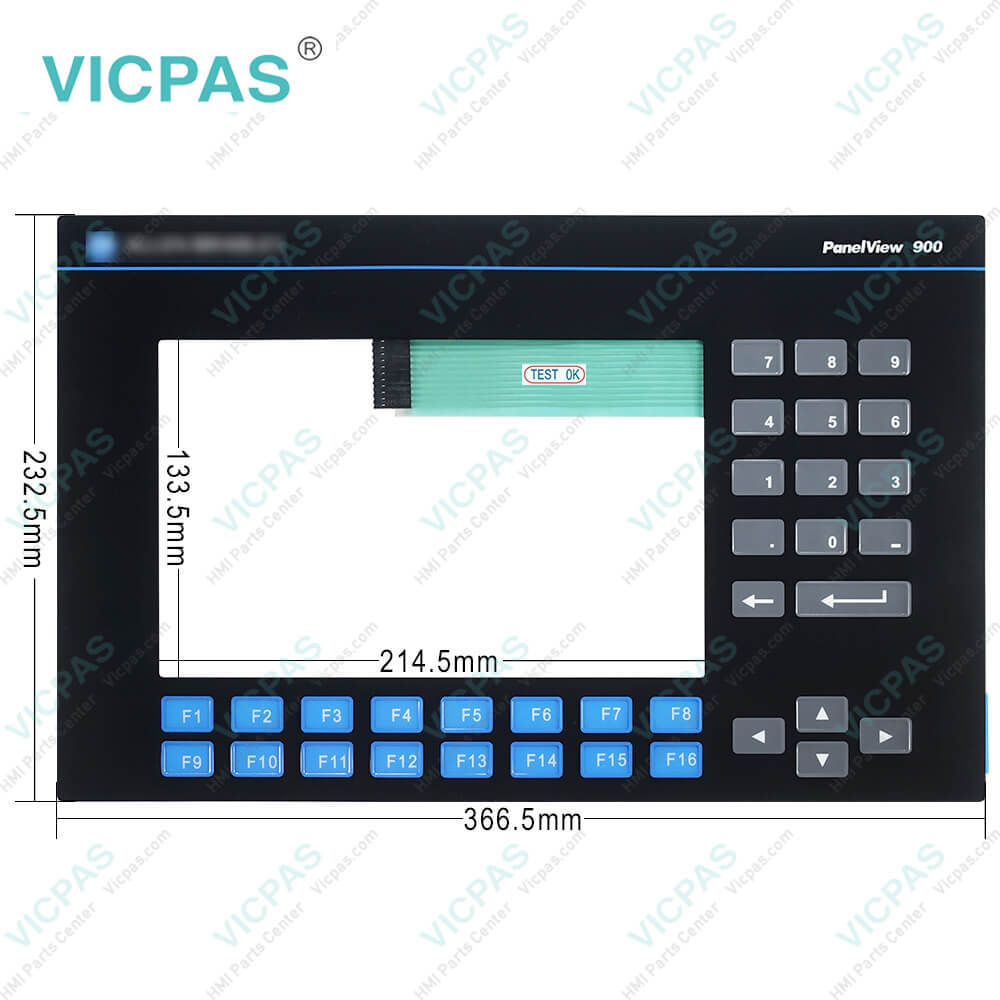

2711-K9A1L1 PanelView 900 Membrane Keyboard Keypad Switch LCD Display Plastic Shell Repair Replacement
Order each part separately is available
The discontinued Allen Bradley Panelview 900 2711-K9A1L1 is an operator terminal that enables the user to interface and connect to other devices using Panelbuilder 32 software and a ControlNet and RS-232 Printer communication port with 2711-NC14 communication cables. The heat dissipation is at 17 W (577 BTU/HR). For optimal product life and efficiency, maintain an operating temperature between 0 and 50 ° C (32 and 122 ° F) with a non-condensing relative humidity level.
The 2711-K9A1L1 comes with an AC electrical rating. Its maximum power consumption peaks at 110 VA while its supply voltage runs from 85-264V AC at 47-63 Hz. It can withstand an operating vibration of 2 g at up to 2,000 Hz. This unit is powered using 120V AC power and it has an internal memory of 1008 KB, but it does not have a replaceable backlight. The approximate shipping weight is 8 lbs. and the dimensions are 18 x 14 x 8 in. The most common series are A, B, C, D, E, and F and the most common firmware includes versions 1.00-4.48.
The ControlNet terminals can connect to a single or multiple controllers on a ControlNet network because they support scheduled and unscheduled access to controller data and redundant cabling. The ControlNet terminals support symbolic CIP addressing when communicating to a ControlLogix system. Every terminal features a Network Access port for local access to the ControlNet network. Application files are easily downloaded or uploaded using PanelBuilder32 software over the ControlNet link, directly via the onboard RS-232 printer port, or with a PC memory card.

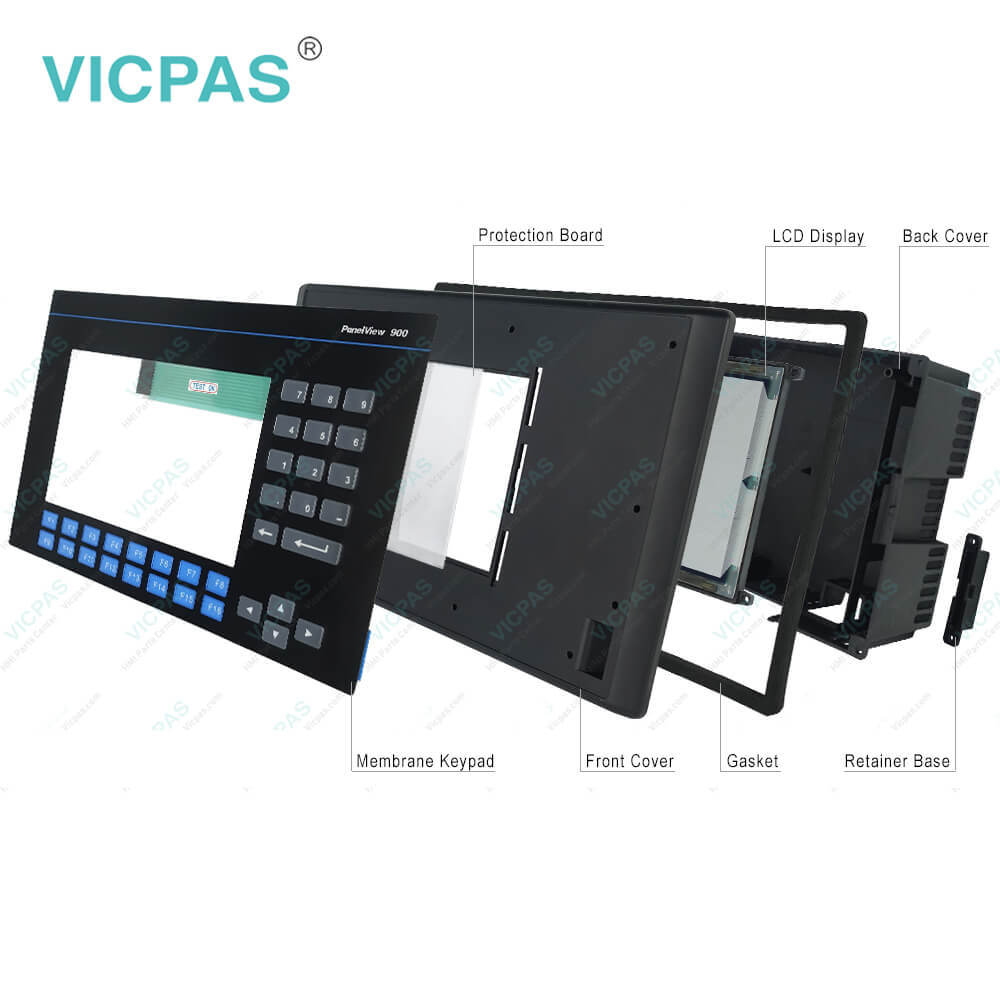

Kernfix supply Allen Bradley Panelview 900 2711-K9A1L1 membrane keyboard switch, Protection Board, Plastic Body Cover, LCD Display Panel, Gasket, Memory Card Retainer Base, Sticker for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, Protection Board, LCD Display Panel, Housing, Gasket, Memory Card Retainer Base, Sticker.
Specifications:
| Part Number: | 2711-K9A1L1 |
| Product Line: | PanelView 900 |
| Screen diagonal: | 9 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Software: | Panelbuilder 32 |
| Mounting position: | vertical |
| Input Type: | Keypad |
| Communication: | Remote I/O and RS-232 Printer Port |
| Firmware: | 4.00-4.48 |
Related BB Teach Pendant Part No. :
| 2711-K9A1L1 | Description | Inventory status |
| 2711-K9A1 | Allen Bradley PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A10 | PanelView 900 Keypad Membrane Switch | Available Now |
| 2711-K9A12 | Allen Bradley Panel View 900 Membrane Keypad Keyboard | In Stock |
| 2711-K9A12L1 | Allen Bradley Panel View 900 Keyboard Keypad Switch | In Stock |
| 2711-K9A14L1 | PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A15 | PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A15L1 | PanelView 900 Membrane Keyboard Keypad | Available Now |
| 2711-K9A16 | Allen Bradley PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A16L1 | PanelView 900 Keypad Membrane Switch | Available Now |
| 2711-K9A1L1 | Allen Bradley Panel View 900 Membrane Keypad Keyboard | In Stock |
| 2711-K9A2 | Allen Bradley Panel View 900 Keyboard Keypad Switch | In Stock |
| 2711-K9A2L1 | PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A3 | PanelView 900 Membrane Keyboard Keypad | Available Now |
| 2711-K9A3L1 | Allen Bradley PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A5 | PanelView 900 Keypad Membrane Switch | Available Now |
| 2711-K9A5L1 | Allen Bradley Panel View 900 Membrane Keypad Keyboard | In Stock |
| 2711-K9A8 | Allen Bradley Panel View 900 Keyboard Keypad Switch | In Stock |
| 2711-K9A8L1 | PanelView 900 Membrane Keypad Switch | In Stock |
| 2711-K9A9 | PanelView 900 Membrane Keyboard Keypad | Available Now |
| 2711-K9A9L1 | PanelView 900 Membrane Keyboard Keypad | Available Now |
2711-K9A1L1 PDF Download:
FAQ:
Question: What kind of communication port does the Panelview 900 2711-K9A1L1 have?
Answer: The 2711-K9A1L1 has an RIO communication port.
Question: What are you want to know about Allen Bradley Panelview series?
Answer: The PanelView Standard operator terminals have multiple models: the 300, 550, 600, 900, 1000, and 1400. The PanelViews are Top Rated Electronic Operator Terminals engineered to suit your needs. The Panelviews have high-performance flat panel designs or 14-inch CRTs. These electronic driver interfaces feature excellent graphics capabilities. They have high performance functionality in color, gray scale and monochrome displays.
Question: How long does this unit’s backlight last?
Answer: This PanelView 900 2711-K9A1L1 unit’s backlight has an average lifespan of 100,000 hours
Question: What type of input does the 2711-K9A1L1 have?
Answer: The 2711-K9A1L1 has a keypad as its operator input.
Question: Is the internal backlight of the display replaceable?
Answer: Yes, the 2711-K9A1L1 terminal has a replaceable internal backlight. The replacement part number is 2711-NL1.
Question: What is the 2711-K9A1L1 PanelView 900 touchscreen panel price?
Answer: Submit a fast quote, send Kernfix an email for best price.
