2711-K9C15L1

Order each part separately is available

The 2711-K9C15L1 PanelView 900 terminal is an electronic HMI device by Allen-Bradley and a member of the PanelView 900 series which grants users a convenient interface with machines and controls the machine’s application processes. The 2711-K9C15L1 is a DC interface device with the ability to display appliance status via the 9-inch color LCD with a resolution of 640 by 480 pixels and dimensions of 171 x 130 millimeters (6.73 x 5.12 inches). It also allows users to manage the machine status through the color indicator lights.

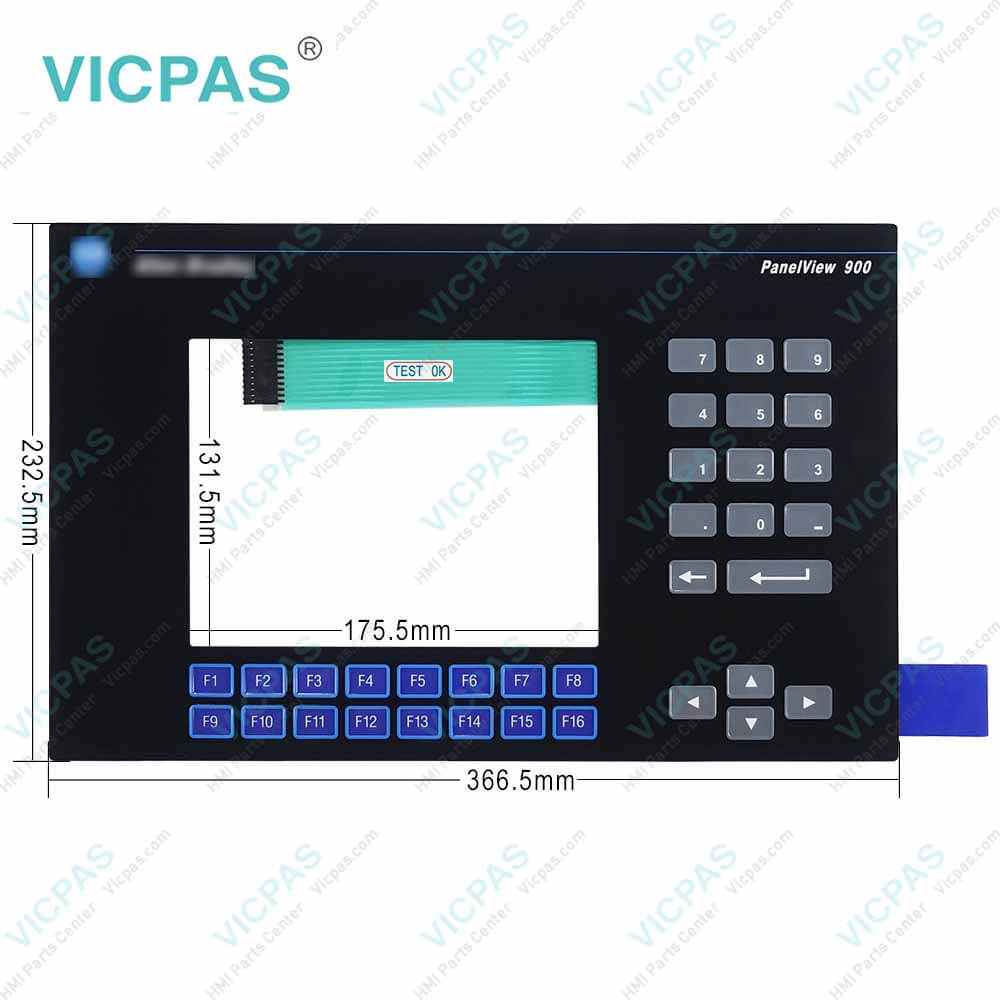

Kernfix supply Allen Bradley Panelview 900 2711-K9C15L1 membrane keyboard switch, Protection Board, HMI Case, LCD Display Screen, Memory Card Retainer Base, Gasket, Sticker for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.

Users can enter useful information and settings via a unique keypad with navigational cursor key functions for selecting options on the display screen, and the F1 to F16 function keys for initiating functions on the display screen. The numerical keys allow for input of numerical and decimal settings.

The 2711-K9C15L1 uses an internal flash memory of 1008 KB for storing the user’s settings and applications, and it supports an external SD card slot. Users can program application settings using the Windows compatible PanelBuilder32 Software. It uses the RS-232 communication port for establishing a connection with a PLC and other external devices. Additionally, the RS-232 printer port allows for connection to a printer and for file transfer. The 2711-K9C15L1 has an input nominal voltage of 24 Volts DC, with an 18 to 32 Volts DC voltage range. It has a power rating of 50W at 2.1 Amps and a thermal dissipation of 133 BTU per hour. It weighs approximately 3.18 kilograms (7.0 pounds) and it has a dimension of 249 x 406 x 112 millimeters (9.80 x 15.97 x 4.40 inches).
