Hakko V708C Touchscreen V708CD Film Housing Repair
| Brand | HAKKO |
|---|---|
| Model | V708C V708CD |
| Warranty | 365 Days |
| Product Line | Monitouch V7 Series |
| Supply | V708C V708CD Touch Screen Glass Repair |
| Parts | Touchscreen Panel Protective Film Plastic Case |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-31 01:43:31 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

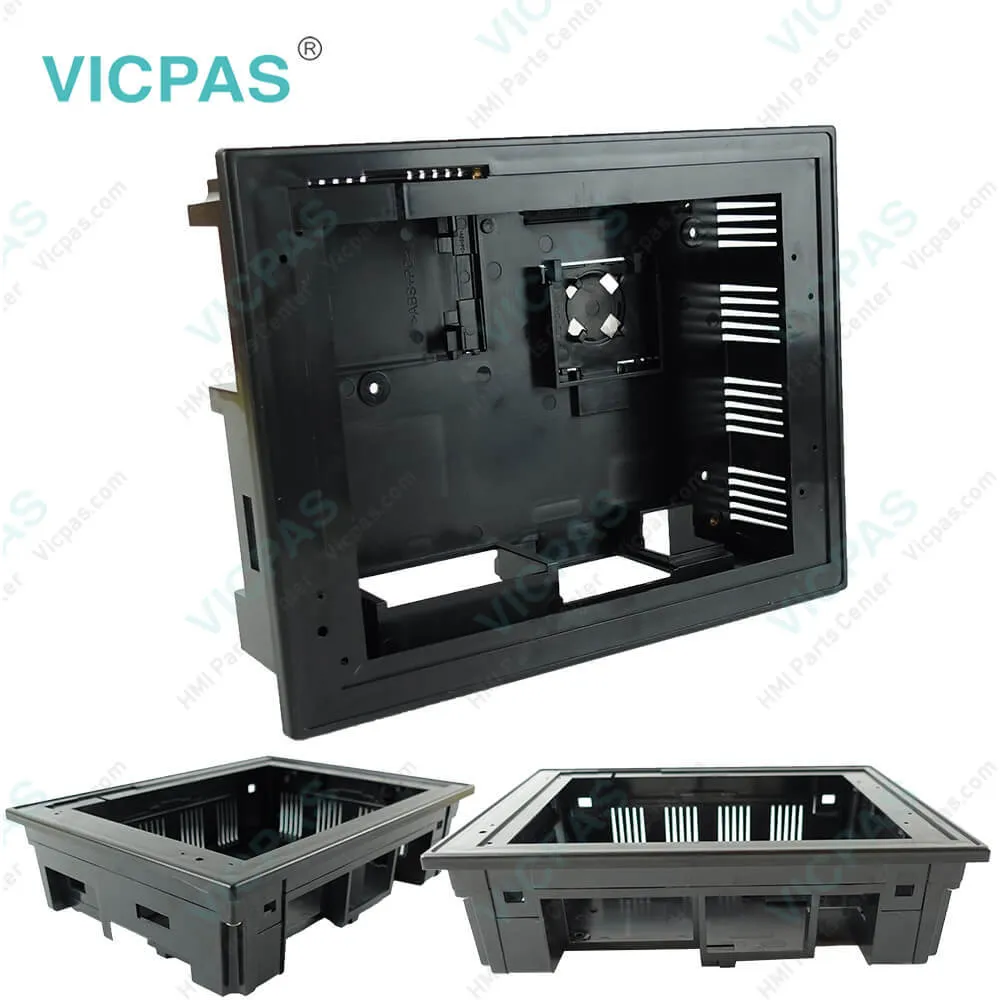

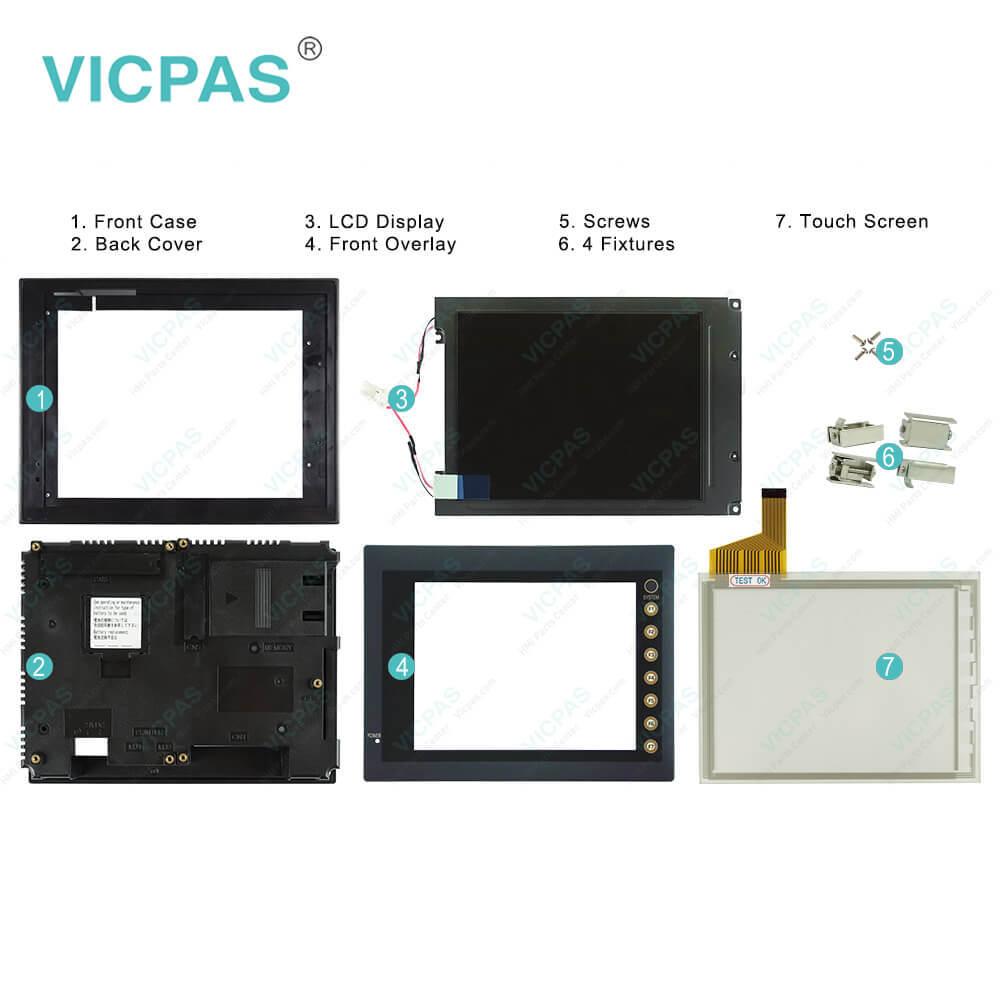

Hakko Monitouch V708C V708CD Touch Screen Panel, Protective Film, Plastic Case Cover and LCD Display Repair Replacement
Order each part separately is available
Line types: 6 (thin, thick, dot, chain, broken, two-dot chain)
Tile patterns: 16 (incl. user-definable 8 patterns)
Display properties: Normal, reverse, blink
Colors: 32,768 colors + blink 16 colors
(V708C, V710C: 128 colors + blink 16 colors)
Color selection: Foreground, background, boundary (line)
V708C TFT color, 800 × 600 dots, standard, DC power supply Compliant with CE/UL/cUL
V708CD TFT color, 800 × 600 dots, high-performance, DC power supply Compliant withCE/UL/cUL
Ambient Temperature： 0°C to +50°C
Storage Ambient: Temperature −10°C to +60°C
Ambient Humidity: 85% RH or less (without dew condensation)
Solvent Resistance: No cutting oil or organic solvent attached to the unit
Atmosphere: No corrosive gas, not so much excessive dust and no conductive dustMechanical
Vibration Resistance: Vibration frequency: 10 to 150 Hz, Acceleration: 9.8 m/s2 (1.0G)
Single amplitude: 0.075 mm, X, Y, Z: 3 directions for one hour
Shock Resistance: Pulse shape: Sine half wave Peak acceleration: 147 m/s2 (15G), X, Y, Z: 3 directions six times each
Kernfix supplies Hakko Monitouch V708C V708CD Touchscreen Panel, Protective Film, Plastic Case cover and LCD display. All of them with Kernfix 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
| Part Number: | V708C V708CD |
| Display Size: | 8 inches |
| Display Color: | Amber |
| Warranty: | 365 days Warranty |
| Product Line: | Monitouch V7 Series |
| Input Type: | Touchscreen Glass |
| Mounting Position: | vertical |
| Communication: | ControlNet |
| Software: | FactoryTalk |
Related BB Teach Pendant Part No. :
| V708C V708CD | Description | Inventory status |
| V708C V708CD | Hakko Monitouch V708 Series Touchscreen Film Case Replacement | In Stock |
| V708SD V708iSD | Hakko Monitouch V708 Series Touch Panel Glass Front Overlay Plastic Case | Available Now |
| V710C V710CD | Hakko Monitouch V710 Series Touchscreen Overlay Housing Replacement | In Stock |
| V710CM V710CMD | Hakko Monitouch V710 Series Touchscreen Film Case Replacement | In Stock |
| V710iS V710iSD | Hakko Monitouch V710 Series Touchscreen Front Overlay Plastic Case | In Stock |
| V710iT V710iTD | Hakko Monitouch V710 Series Touch Screen Front Overlay Plastic Case | In Stock |
| V710iTM V710iTMD | Hakko Monitouch V710 Series Touch Membrane Overlay Plastic Shell | Available Now |
| V710S V710SD | Hakko Monitouch V710 Series HMI Touch Screen Front Film Housing | In Stock |
| V710T V710TD | Hakko Monitouch V710 Series Touchscreen Membrane Switch Overlay Case | Available Now |
| V710TM V710TMD | Hakko Monitouch V710 Series Panel Glass Overlay Front Cover | In Stock |
Hakko V708C Touchscreen V708CD Film Housing Repair PDF Download:
FAQ:
Question: What is the procedure of V708C V708CD Battery Mounting?
Answer: 1. Turn the unit off.2. Slide the battery holder cover in the direction of the arrow as shown in the left illustration below to open it.3. Check that the battery is securely attached to the backside of the cover, and connect the battery connector.4. Close the battery holder cover.5. Enter a date five years from now for “Battery replacement” on the sticker on the battery holder.* The battery status is output to the internal memory $s167 of the V7 series. If the battery voltage drops before five years has elapsed, replace the battery immediately.6. Turn on the power to the V7 unit and check that the battery is correctly mounted on the Main Menu screen.When the battery is not connected, the [SRAM/Clock] switch blinks and the message “Battery not set” is displayed at the bottom left corner.When the battery is correctly connected, the [SRAM/Clock] switch goes out and the message is cleared.When the battery voltage has dropped, the message “Brownout Battery” is displayed.
Question: How to check V708C V708CD Print?
Answer: 1. Connect the V7 unit to the printer.2. Press the [Printer Check] switch. The test is successful when a test page is printed out without problem.
