ATLAS Industrial Monitors ATM1500T Touch Digitizer Overlay
| Brand | KOYO |
|---|---|
| Model | ATM1500T |
| Warranty | 365 Days |
| Product Line | ATLAS Industrial Monitors |
| Supply | ATM1500T Touch Screen Monitor Protective Film |
| Shipping | 2-4 workdays |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Download | |
| Update Time | 2026-01-31 02:07:35 |
Shipping
Free Shipping
Those shipping costs are only estimates, the actual shipping cost will be shown on the order page.

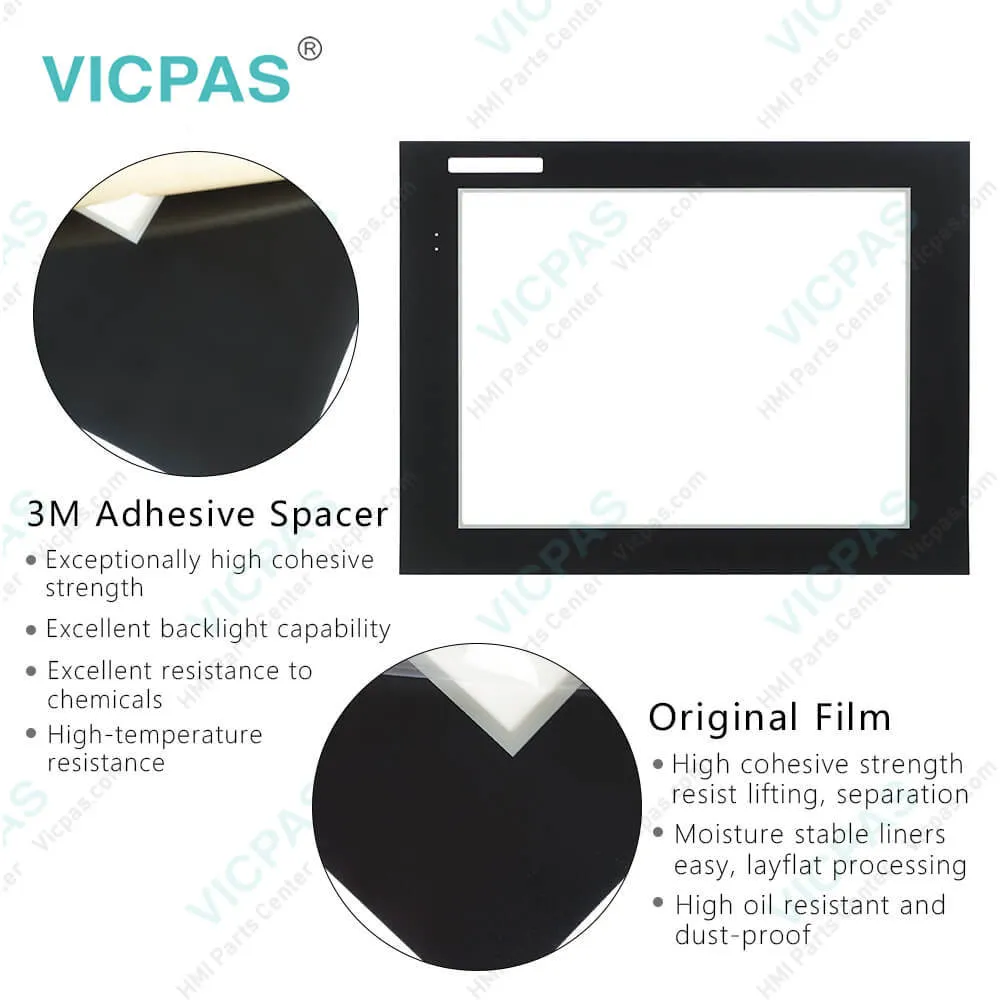

Koyo ATLAS Industrial Monitors ATM1500T Front Overlay Touch Screen Replacement Repair
Order each part separately is available
The Atlas ATM1500T Front Overlay Touch Digitizer Glass Monitors is a high-performance 15" color TFT flat panel monitor specifically designed for harsh industrial environments including Class I Division 2, Class II Division 2 and Class III Hazardous Locations. The ATM1500T accepts standard analog VGA or digital DVI input and can display all VESA video modes up to 1280 x 1024 at 75Hz, 800:1 contrast with 16 million colors. An optional 5-wire analog touch screen (ATM1500T) offers RS-232 and USB interface capability. The monitor is housed in a heavy-duty steel chassis with a powder-coated machined aluminum bezel. The monitor is certified to NEMA 4/4X/12 standards and is UL/CUL listed. Panel mounting is simplified using convenient mounting clips instead of conventional studs.
ATM1500T Touchscreen Panel Protective Film ATLAS Industrial Monitors Features
• UL 508 and ANSI/ISA 12.12.01-2012 listed for Hazardous Locations: Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F and G and Class III hazardous locations when mounted in a NEMA Type 1, 4, 4X or 12 enclosures
• NEMA 4/4X/12 front bezel
• 2-Year warranty
• Integral 100 -240 VAC power supply
• Simplified installation with no studs
• Thin design - Less than 3” behind bezel
• Accepts analog 15-pin Video input, digital input DVI-D
• VESA compliant - all modes up to SXGA, 75Hz
• Optional 5-wire resistive touch screen with both RS-232 and USB interface
Kernfix supply Koyo ATLAS Industrial Monitors ATM1500T Front Overlay and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
| Brand: | KOYO |
| LCD Backlight: | 250 Nit |
| Product Line: | ATLAS Industrial Monitors |
| Resolution: | 1024 x 768 pixels (VGA) |
| Warranty: | 12 Months Warranty |
| Ambient temperature: | 10 to 90% RH |
| Display Type: | TFT color LCD |
| Power supply: | 24 V DC |
| Storage Temperature: | -20 to 60 °C (-4 to 140 °F) |
| Touch Size: | 15" |
Related BB Teach Pendant Part No. :
| ATM1500T | Description | Inventory status |
| ATM1500 | KOYO ATLAS Industrial Monitors Front Overlay Touch Membrane | In Stock |
| ATM1500T | Koyo ATLAS Industrial Monitors Touch Glass Front Overlay Repair | In Stock |
| ATM1700 | Koyo ATLAS Industrial Monitors Touch Digitizer Glass Overlay Repair | Available Now |
| ATM1700T | KOYO ATLAS Industrial Monitors HMI Panel Glass Protective Film | Available Now |
| ATM1900 | Koyo ATLAS Industrial Monitors Touch Screen Monitor Front Overlay | In Stock |
| ATM1900T | Koyo ATLAS Industrial Monitors Front Overlay MMI Touch Screen Replacement | Available Now |
ATLAS Industrial Monitors ATM1500T Touch Digitizer Overlay PDF Download:
FAQ:
Question: Connection of Video and Touch Screen Cables
Answer: Connect either a 15-pin VGA or DVI cable and either an RS-232 or USB cable if the monitor is equipped with a touch screen. All communication cables should include a chassis ground shield. Hazardous location, Division 2, requires that all cables have adequate strain relief. For this reason, tighten all connector thumb screws securely. If a USB cable is being used, install the provided USB retention bracket. Insert the USB connector through the square cutout in the base of the bracket and pull the cable and body of the connector back through the round hole in the bracket flange. Now insert the bracket into the two slots on the rear of the monitor and slide it forward so the connector is fully inserted in the mating bulkhead connector. Install and tighten two 4-40 x .25" Philips screws.
Question: What are ATLAS Industrial Monitors ATM1500T Touch Screen and Protective Film HMI parts prices?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
ATM500T
ATM150T
AMT1500T
ATM15007
ATM15000T
