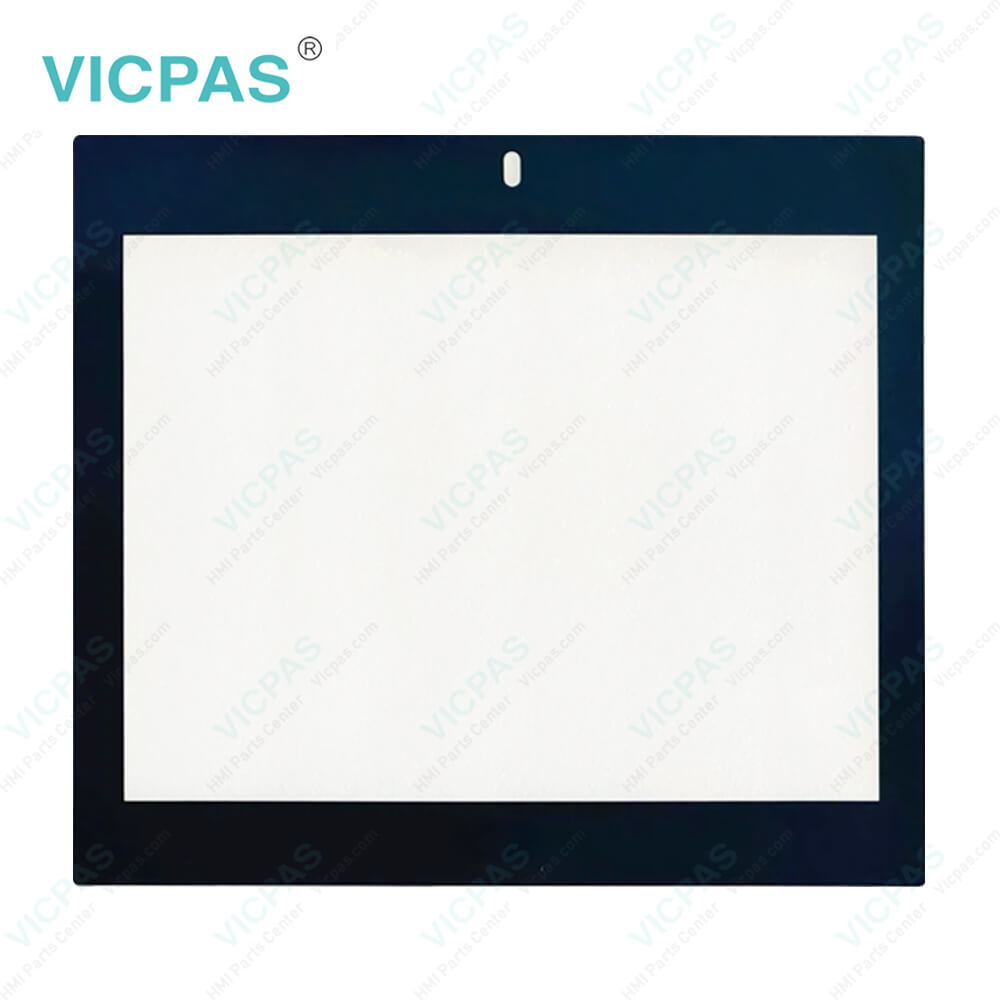

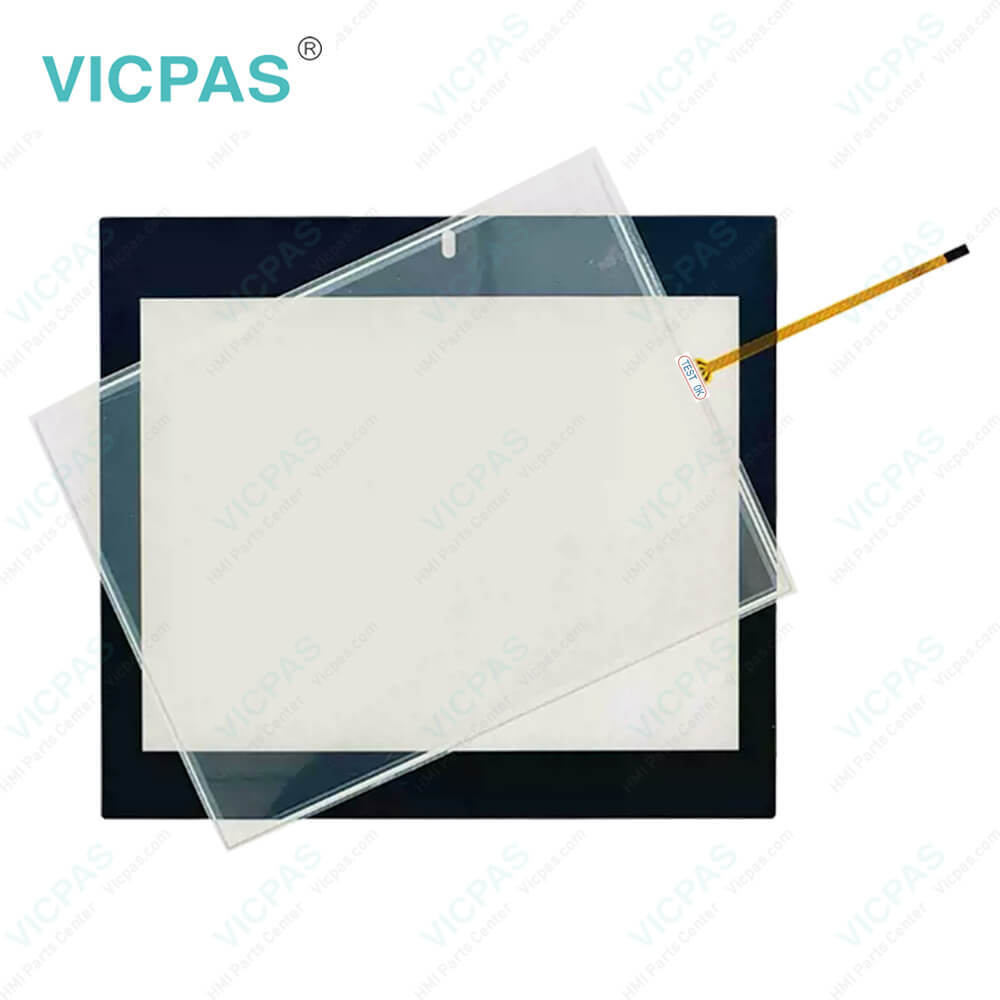

TOPRT1210SD Touch Screen Tablet Front Overlay Repair

Order each part separately is available

Installation Requirements

1. For the performance, ventilation and safe use of the TOPRT1210SD Touch Screen Film Front Overlay equipment, keep the distance between the back of the main unit and each wall of the container at least 100mm and install the cooling fan when installed in an enclosed space.
2. It should be installed within -10~50C and 10~80%relative-humidity, otherwise the screen may be changed or cause malfunction and damage.
3. Be sure that heat from surrounding M2I Premium/Standard/ATEX Model TOPRT1210SD Protective Film Touch Membrane equipment does not cause product to exceed its standard operating temperature.
4. When you don't see within 30, you may not see clearly. When installing the product in a slanted position, the product screen should not incline more than 30.
5. In order to minimize external mechanical hazards of TOPRT1210SD Front Overlay HMI Panel Glass, please control the mechanical hazards of the surrounding environment.

Installation Procedure Warning

In order to install TOPRT1210SD Touch Screen Glass Protective Film product, please follow the following procedure.
1. Panel Cut-out: Make a panel cut which product is mounted and insert the product to the panel from the front side.
2. The Size of Panel Cut of TOPRT1210SD Touchscreen Front Overlay: Making the Panel Cut (Mounting Size) per each TOPRW Series as below Table, before Installation.
3. Fixing: Install clamps with this product should be installed as follows to maintain the IP performance of the device.
a.Insert the clamp into the slot of the product.
b.Screw the unit into the TOPRT1210SD Protective Film Touch Digitizer panel cut with a screwdriver.
